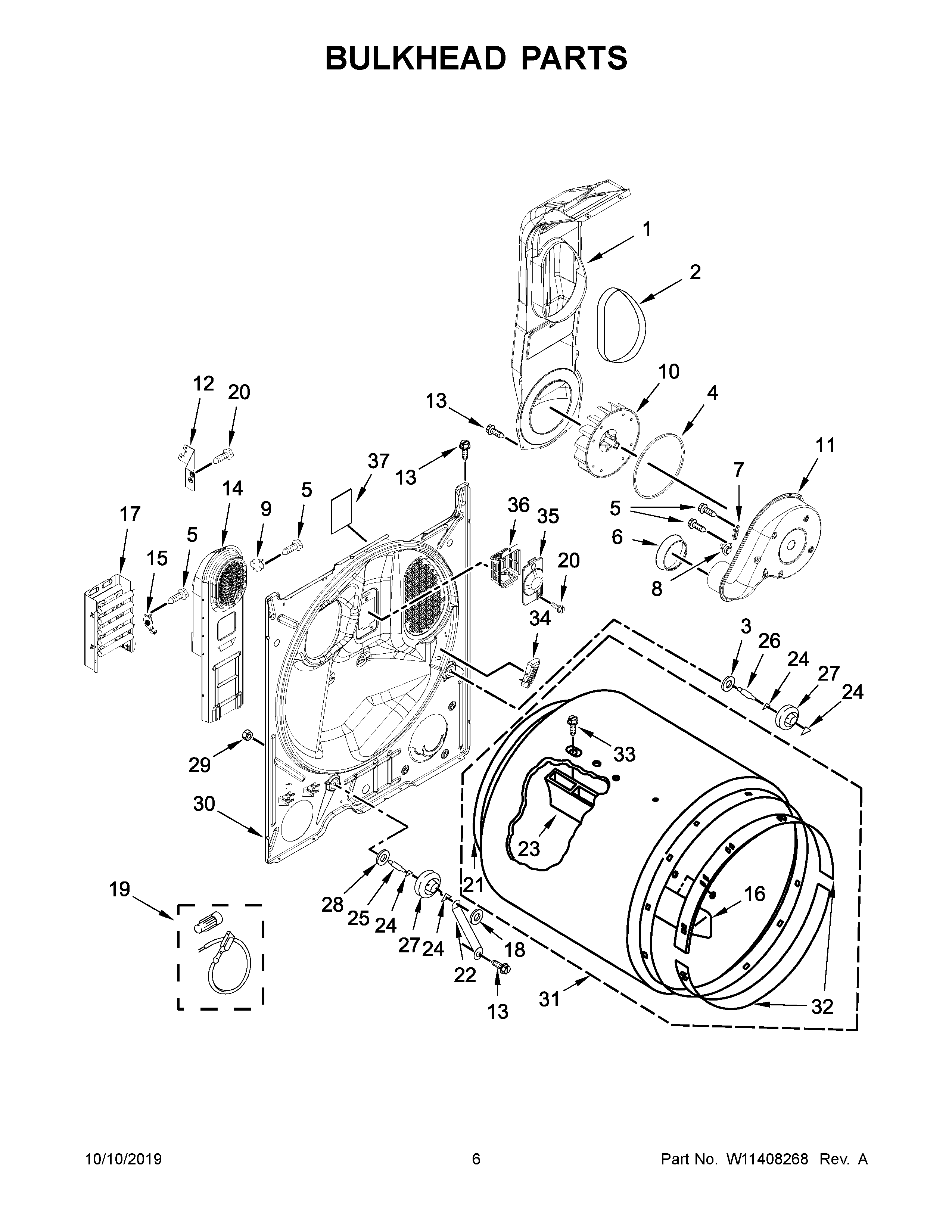

4KWED5700JW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	SEAL
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387137 Whirlpool Thermostat
9	W11034847 Whirlpool Thermal Cutoff
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	WP3390631 Whirlpool Screw
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	WP3403636 Whirlpool Drum Baffle
17	W11026484 Whirlpool Element
18	WP90296 Whirlpool Clip
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP488729 Whirlpool Refrigerator Door Screw
21	W11491417 Whirlpool Seal
22	W11684613 Whirlpool Bracket
23	BAFFLE-DRM
24	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25	SHAFT SUPPORT ROLLER DRYER
26	SHAFT SUPPORT ROLLER DRYER
27	WPW10314173 Whirlpool Dryer Drum Support Wheel
28	WP348197 Whirlpool Washer Assembly
29	W11229607 Whirlpool Nut
30	W10828905 Whirlpool Bulkhead OS1
31	W10899578 Whirlpool Dryer Drum Assembly
32	279441 Whirlpool Front Bearing Ring
33	W10853898 Whirlpool Screw
34	W10853313 Whirlpool Sensor
35	W11226088 Whirlpool Lens Assembly
36	8578825 Whirlpool Bracket
37	PAD, FOAM
