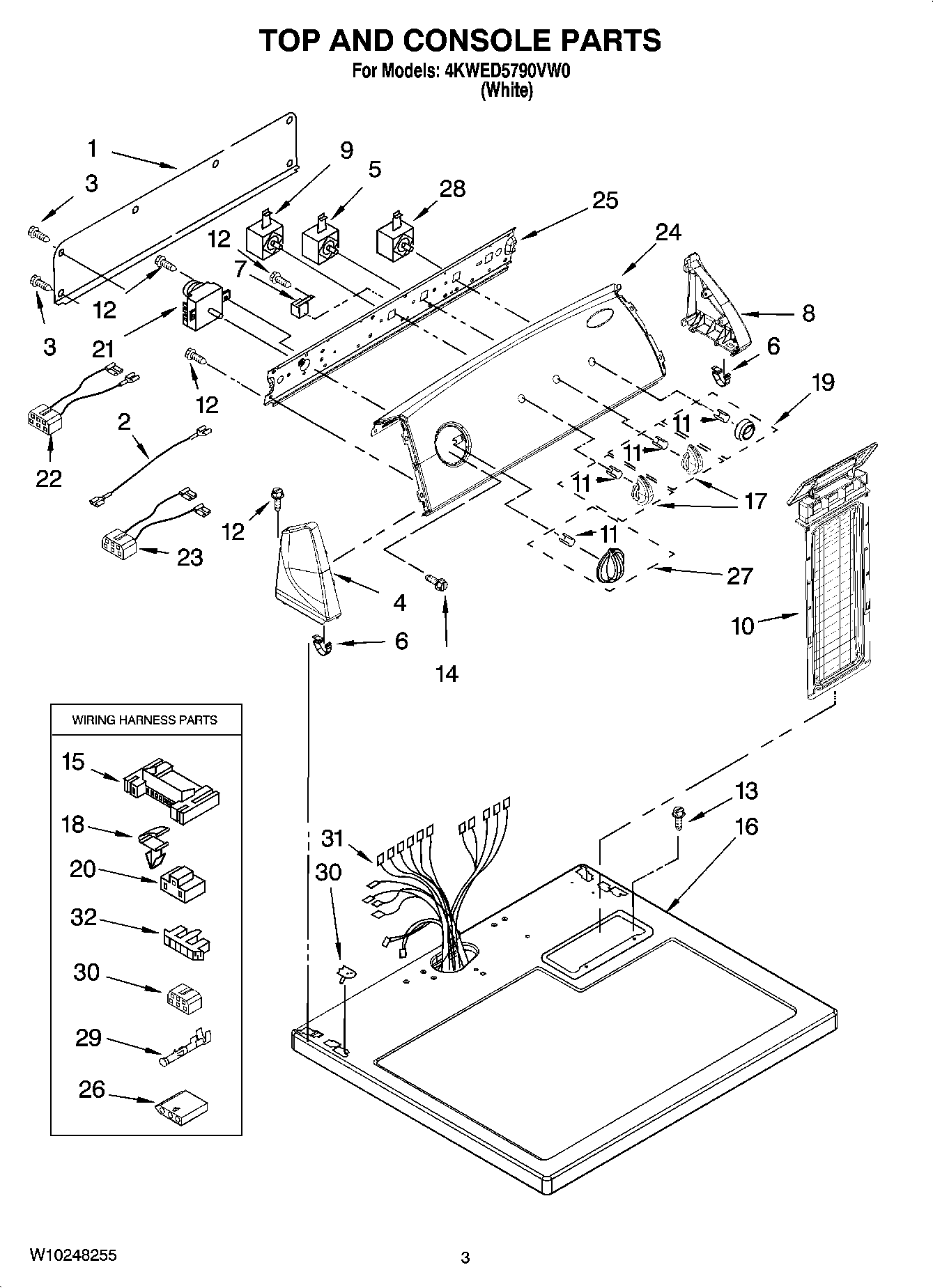

4KWED5790VW0 02 – TOP AND CONSOLE PARTS

4KWED5790VW0 02 – TOP AND CONSOLE PARTS

Written by

in

4KWED5790VW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6WP8312709 Whirlpool Endcap Clip
73952439 Whirlpool Buzzer
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WP3394427 Whirlpool Clip
19WPW10034790 Whirlpool Knob
203401144 Whirlpool Connector
21WP3979618 Whirlpool Timer
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
24Panel, Control
258566052 Whirlpool Bracket
263936144 Whirlpool Connector
27TIMER KNOB ASSEMBLY
28WPW10112668 Whirlpool Relay Push to Start
29WP94614 Whirlpool Terminal
30Block, Disconnect
31Harness, Wiring
32Connector, Timer
