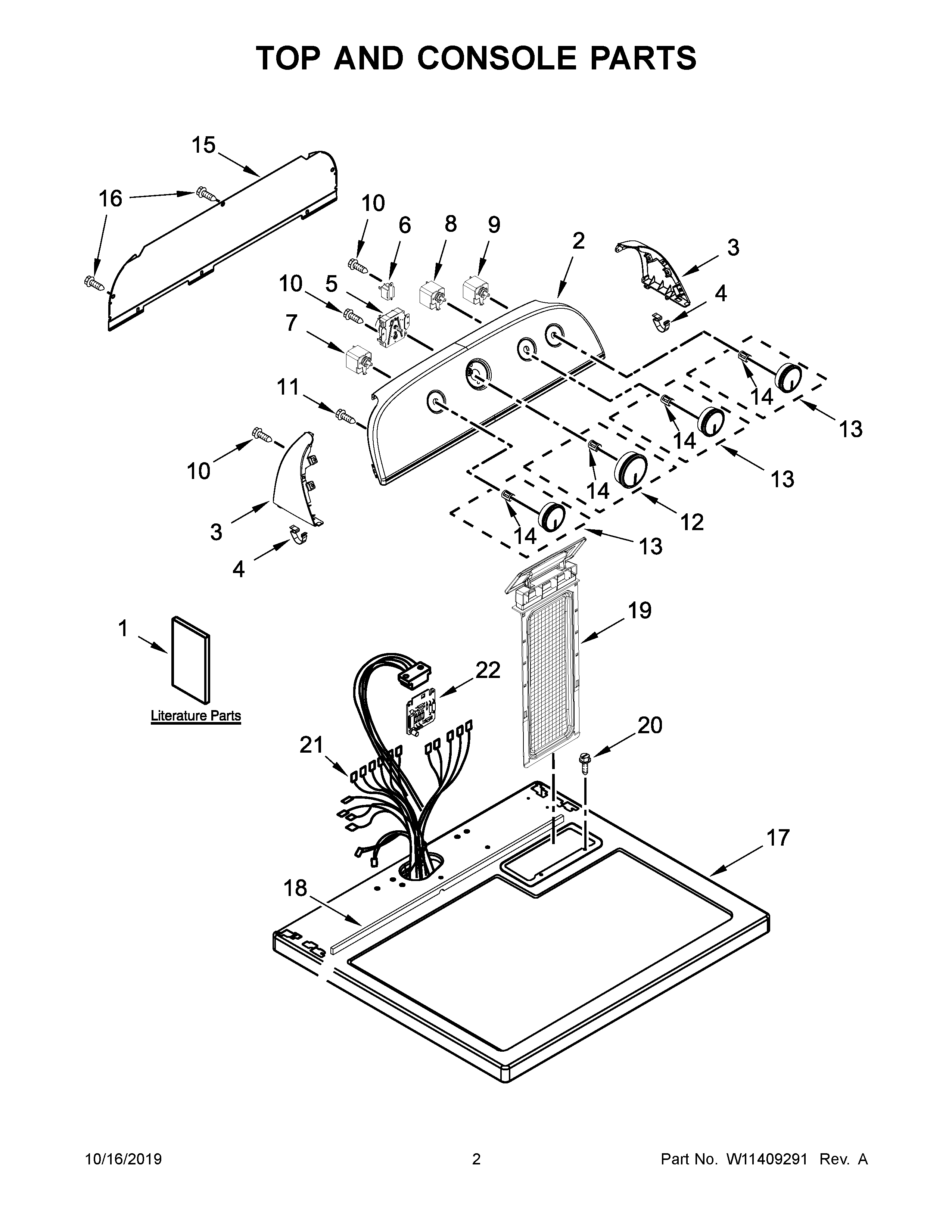

4KWED5900JW0 02 – TOP AND CONSOLE PARTS

4KWED5900JW0 02 – TOP AND CONSOLE PARTS

Written by

in

4KWED5900JW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AINSTRUCTIONS, INSTALLATION
1OWNERS MANUAL
1BWIRING DIAGRAM
2ASSEMBLY, CONSOLE (WHITE)
3END CAP (RIGHT) (WHITE)
3AEND CAP (LEFT) (WHITE)
4WP8312709 Whirlpool Endcap Clip
5WPW10185982 Whirlpool Timer
63952439 Whirlpool Buzzer
7W10168170 Whirlpool Switch
8SWITCH, ROTARY (2 POS)
9W11041434 Whirlpool Relay Push-To-Start
10WP90767 Whirlpool Screw
11W10850756 Whirlpool Screw
12W10756270 Whirlpool Dryer Timer Knob
14WP688805 Whirlpool Spring Clip
15W10556829 Whirlpool Rear Panel
16WP693995 Whirlpool Screw
17WP8563663 Whirlpool Top Assembly
18W10316616 Whirlpool Seal
19WPW10717210 Whirlpool Dryer Lint Screen Filter
20W11693756 Whirlpool Screw Assembly
21WIRE HARNESS, MAIN
22W11408456-includeCORE Whirlpool W11408456 Electronic Control Board + Core
