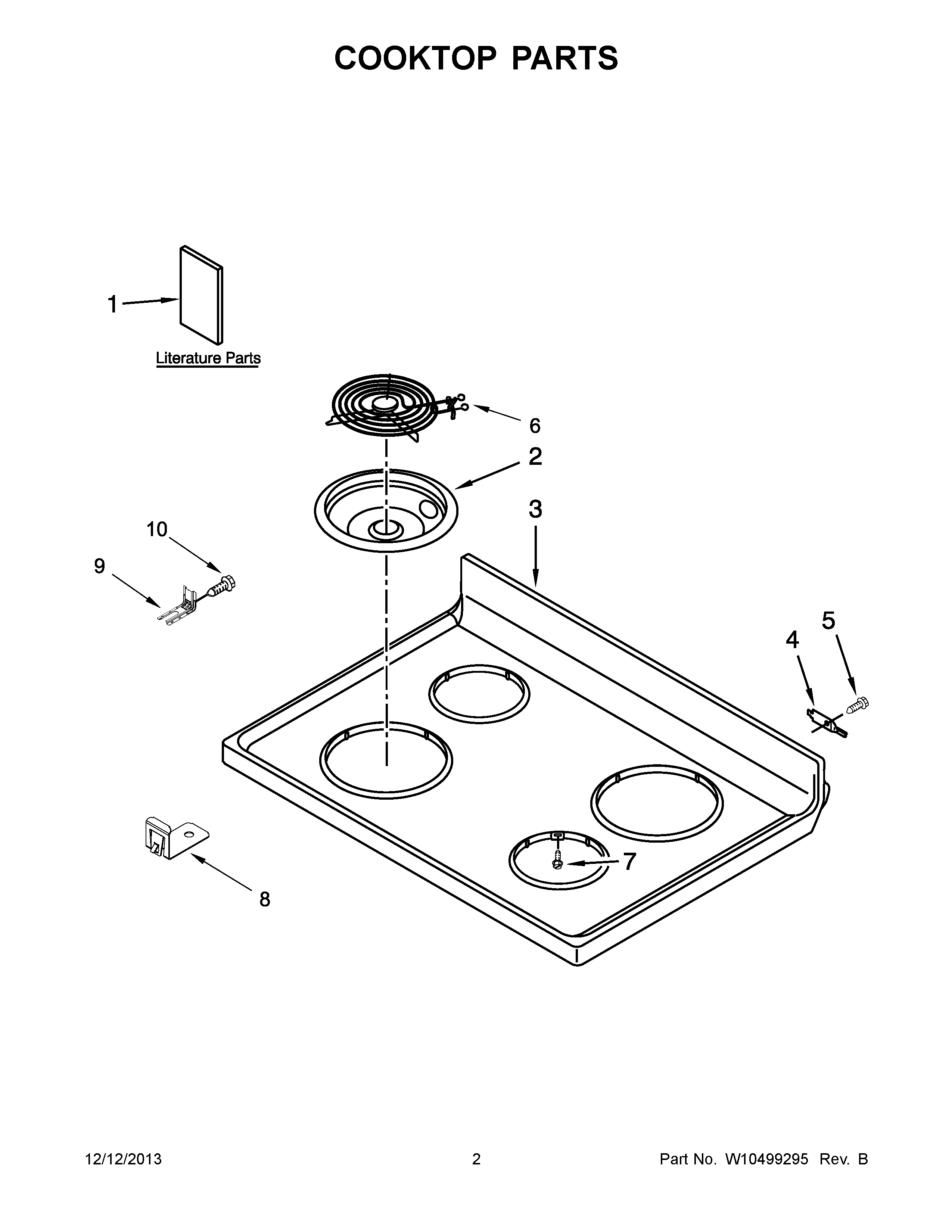

4KWFC120MAW0 02 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION (ENGLISH)
1INSTRUCTIONS, INSTALLATION (ARABIC)
1MANUAL, OWNERS (ENGLISH)
1MANUAL, OWNERS (ARABIC)
1TECH SHEET (ENGLISH)
1TECH SHEET (ARABIC)
1SAFER COOKING TIPS (ENGLISH
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6W11168414 Whirlpool Range 6" Surface Element
6W11161939 Whirlpool Range Surface Element 8"
7WP3196154 Whirlpool Screw Assembly
8CLIP, COOKTOP
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
