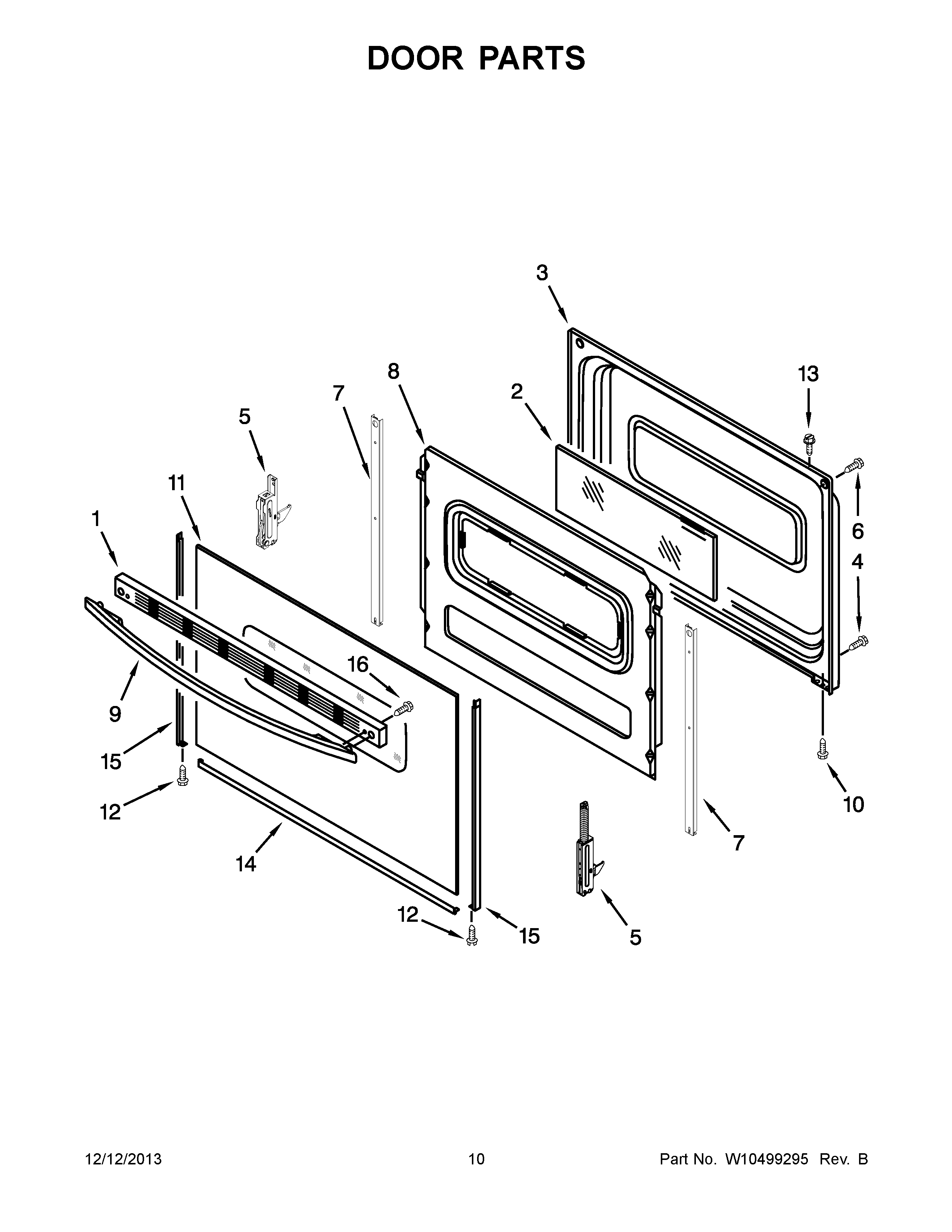

4KWFC120MAW0 06 – DOOR PARTS

4KWFC120MAW0 06 – DOOR PARTS

Written by

in

4KWFC120MAW0 06 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
2WP9758163 Whirlpool Door Glass Assembly
39761340 Whirlpool Oven Door Liner
4W10777162 Whirlpool Screw
5WPW10299227 Whirlpool Range Door Hinge
5WPW10299225 Whirlpool Door Hinge
6WPW10200660 Whirlpool Range Oven Door Handle Screw
7W11502236 Whirlpool Door Trim
89761500 Whirlpool Oven Retainer
9W10300489 Whirlpool Door Handle
10W10491985 Whirlpool Screw
11WPW10467150 Whirlpool Door Glass
12WP3196175 Whirlpool Screw
13WPW10031790 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15WP8523172 Whirlpool Left Door Trim
15WP8523166 Whirlpool Door Trim
16WPW10465148 Whirlpool Screw
