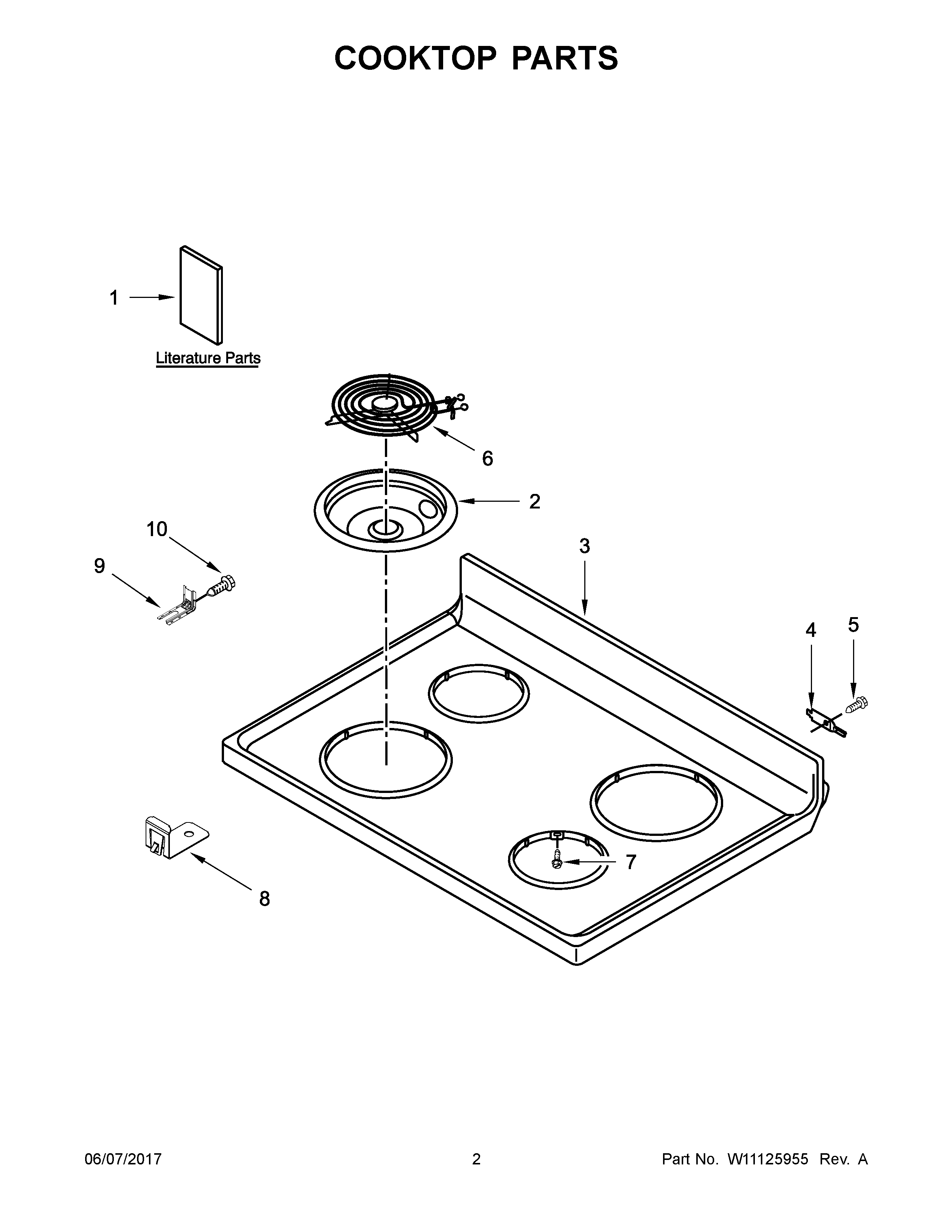

4KWFC120MAW1 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, MAIN
NIW11396691 Whirlpool Element Receptacle and Wire Kit
NICABINET (NOT A SERVICEABLE PART)
1INSTRUCTIONS, INSTALLATION (ENGLISH)
1FSAFER COOKING TIPS (ENGLISH
1ETECH SHEET (ARABIC)
1DTECH SHEET (ENGLISH)
1CMANUAL, OWNERS (ARABIC)
1AINSTRUCTIONS, INSTALLATION (ARABIC)
1BMANUAL, OWNERS (ENGLISH)
2ADRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6AW11161939 Whirlpool Range Surface Element 8"
6W11168414 Whirlpool Range 6" Surface Element
7WP3196154 Whirlpool Screw Assembly
8CLIP, COOKTOP
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
