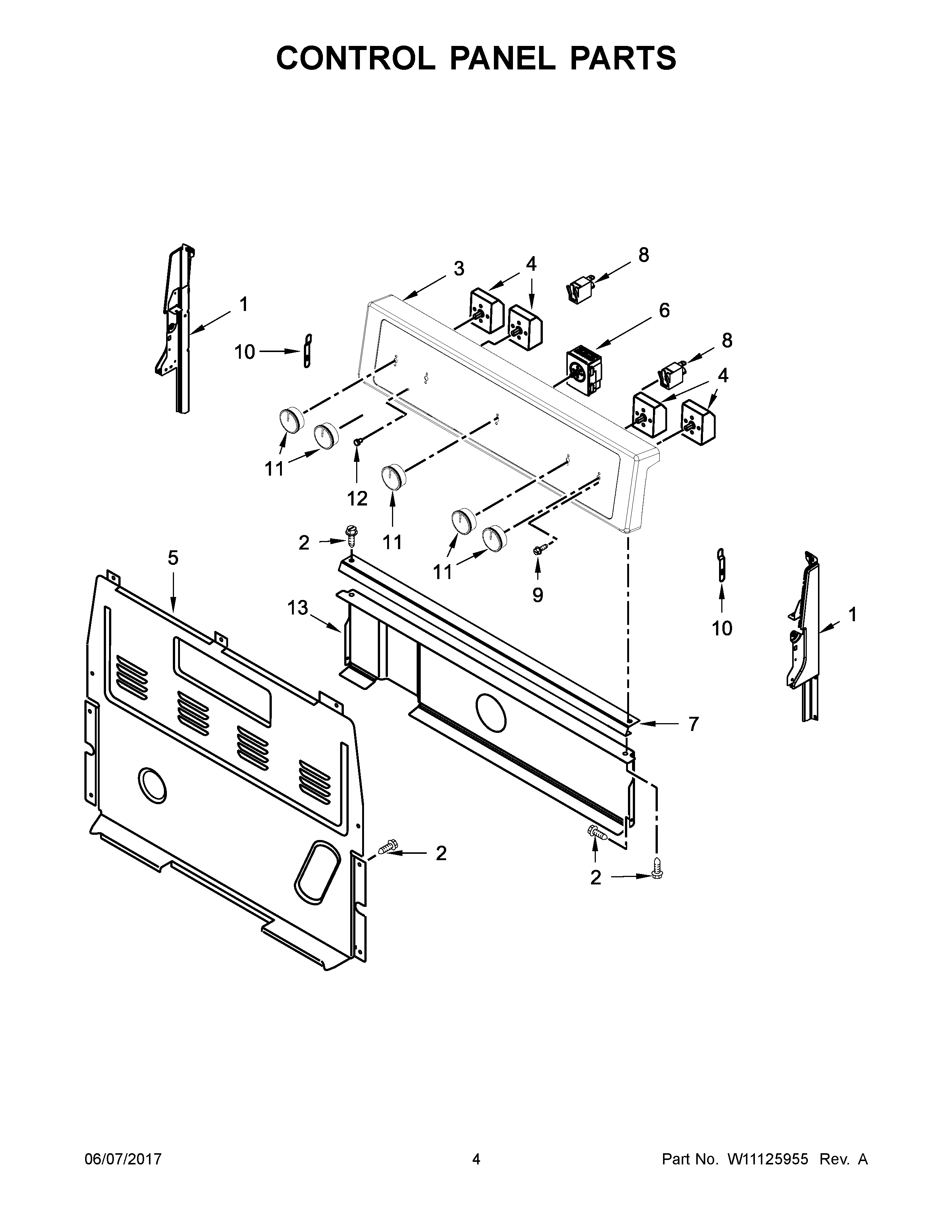

4KWFC120MAW1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2SCREW
3W11231392 Whirlpool Control Panel
4WP3149404 Whirlpool Oven Surface Element Switch
4ASWITCH-INF
5WP8272473 Whirlpool Rear Cover
6WPW10466758 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8WP8523266 Whirlpool Indicator Light
9WP3400882 Whirlpool Screw
103196200 Whirlpool Clip
11WPW10490037 Whirlpool Knob
12WP3196068 Whirlpool Light Lens
13W10134247 Whirlpool Heat Shield
