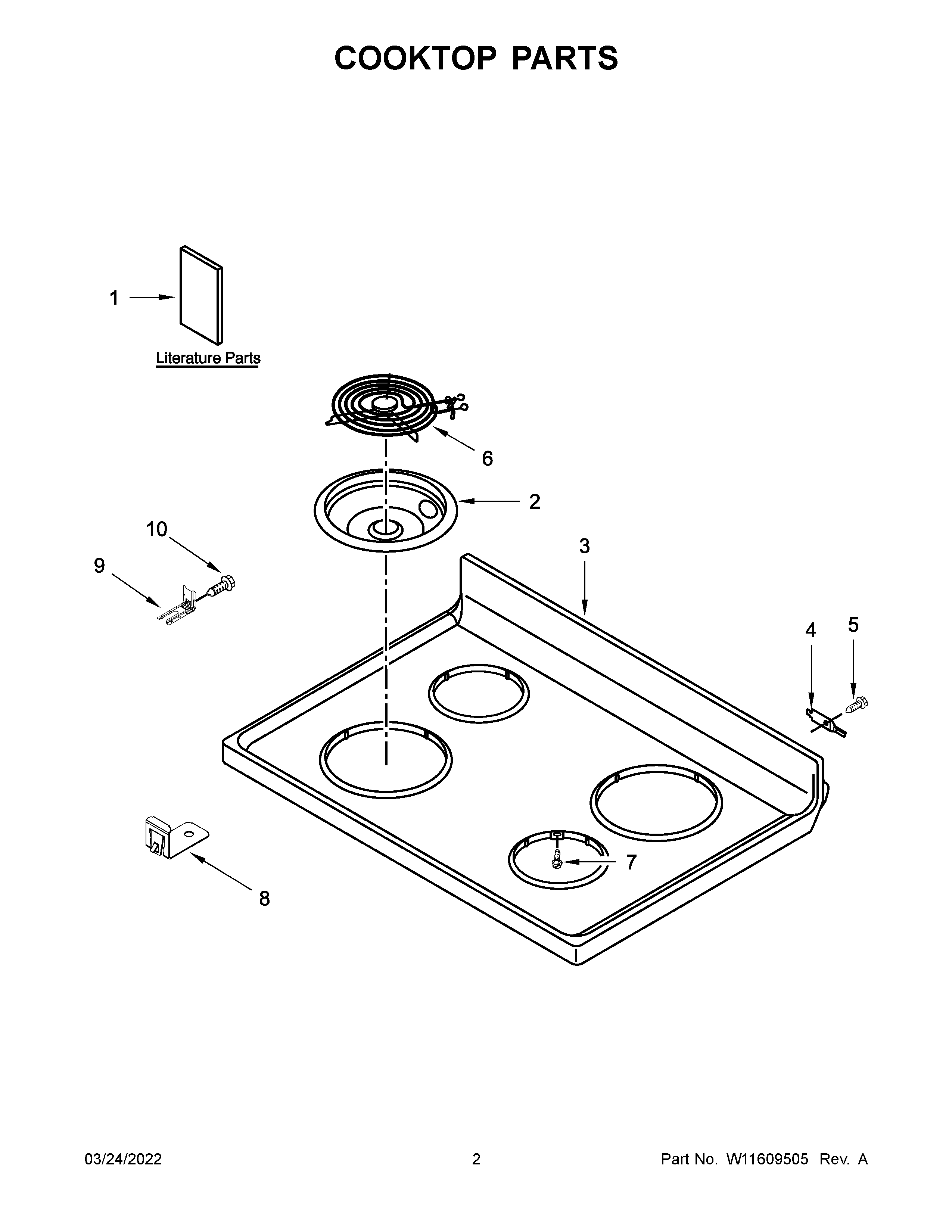

4KWFC120MAW3 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11396691 Whirlpool Element Receptacle and Wire Kit
1E	TECH SHEET (ARABIC)
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1A	INSTRUCTIONS, INSTALLATION (ARABIC)
1B	USE AND CARE GUIDE (ENGLISH)
1C	USE AND CARE GUIDE (ARABIC)
1D	TECH SHEET (ENGLISH)
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2A	DRIP BOWL 8" W/HOLE CHROME
3	8195532 Whirlpool Cooktop Power Switch
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	W11168414 Whirlpool Range 6" Surface Element
6A	W11161939 Whirlpool Range Surface Element 8"
7	WP3196154 Whirlpool Screw Assembly
8	CLIP, COOKTOP
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
