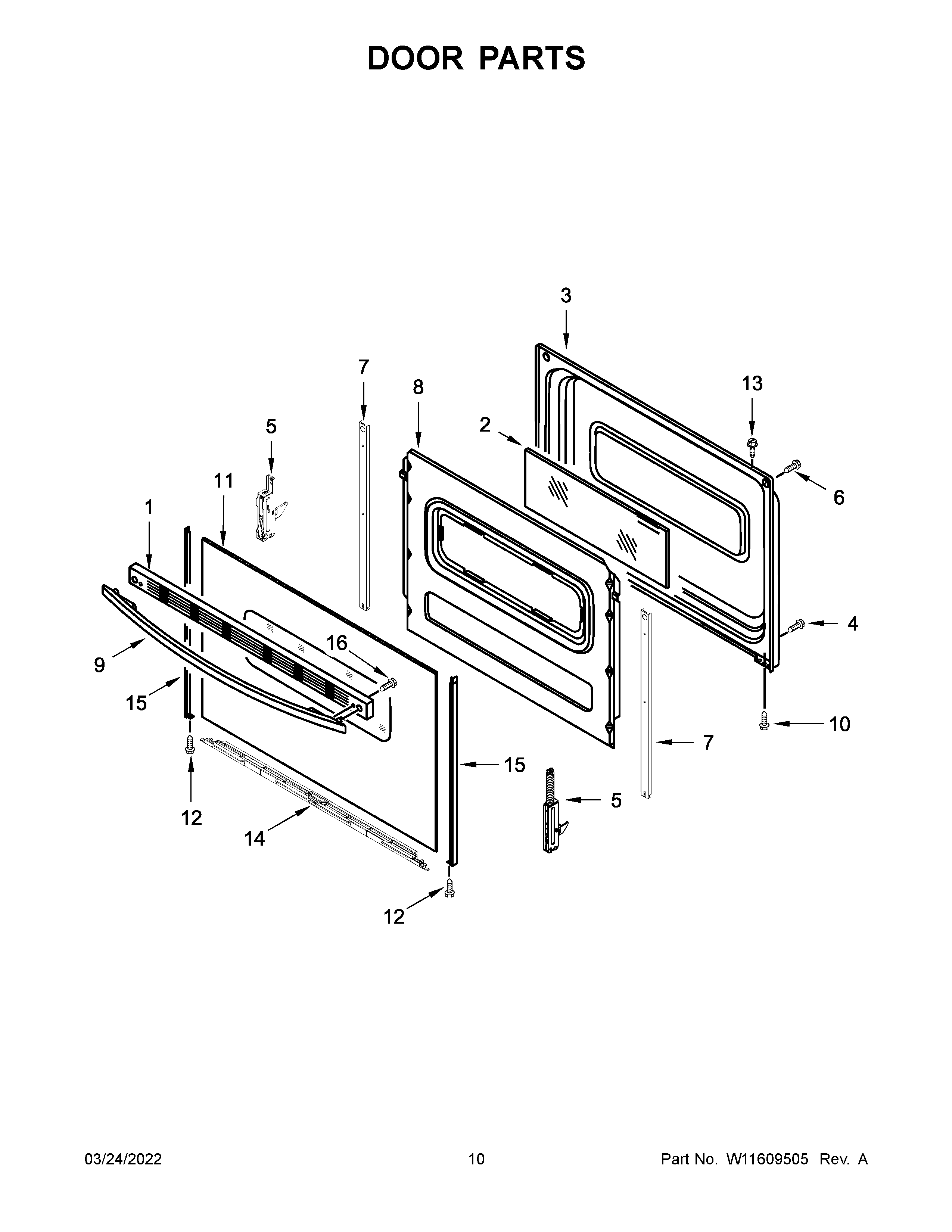

4KWFC120MAW3 06 – DOOR PARTS

Products

Position	Product
1	W10817433 Whirlpool Vent Trim
2	WP9758163 Whirlpool Door Glass Assembly
3	9761340 Whirlpool Oven Door Liner
4	W10777162 Whirlpool Screw
5A	WPW10299227 Whirlpool Range Door Hinge
5	WPW10299225 Whirlpool Door Hinge
6	WPW10200660 Whirlpool Range Oven Door Handle Screw
7	W11502236 Whirlpool Door Trim
8	9761500 Whirlpool Oven Retainer
9	W10300489 Whirlpool Door Handle
10	W10491985 Whirlpool Screw
11	WPW10467150 Whirlpool Door Glass
12	WP3196175 Whirlpool Screw
13	WPW10031790 Whirlpool Screw
14	W11594186 Whirlpool Door Trim
15A	WP8523172 Whirlpool Left Door Trim
15	WP8523166 Whirlpool Door Trim
16	WPW10465148 Whirlpool Screw
