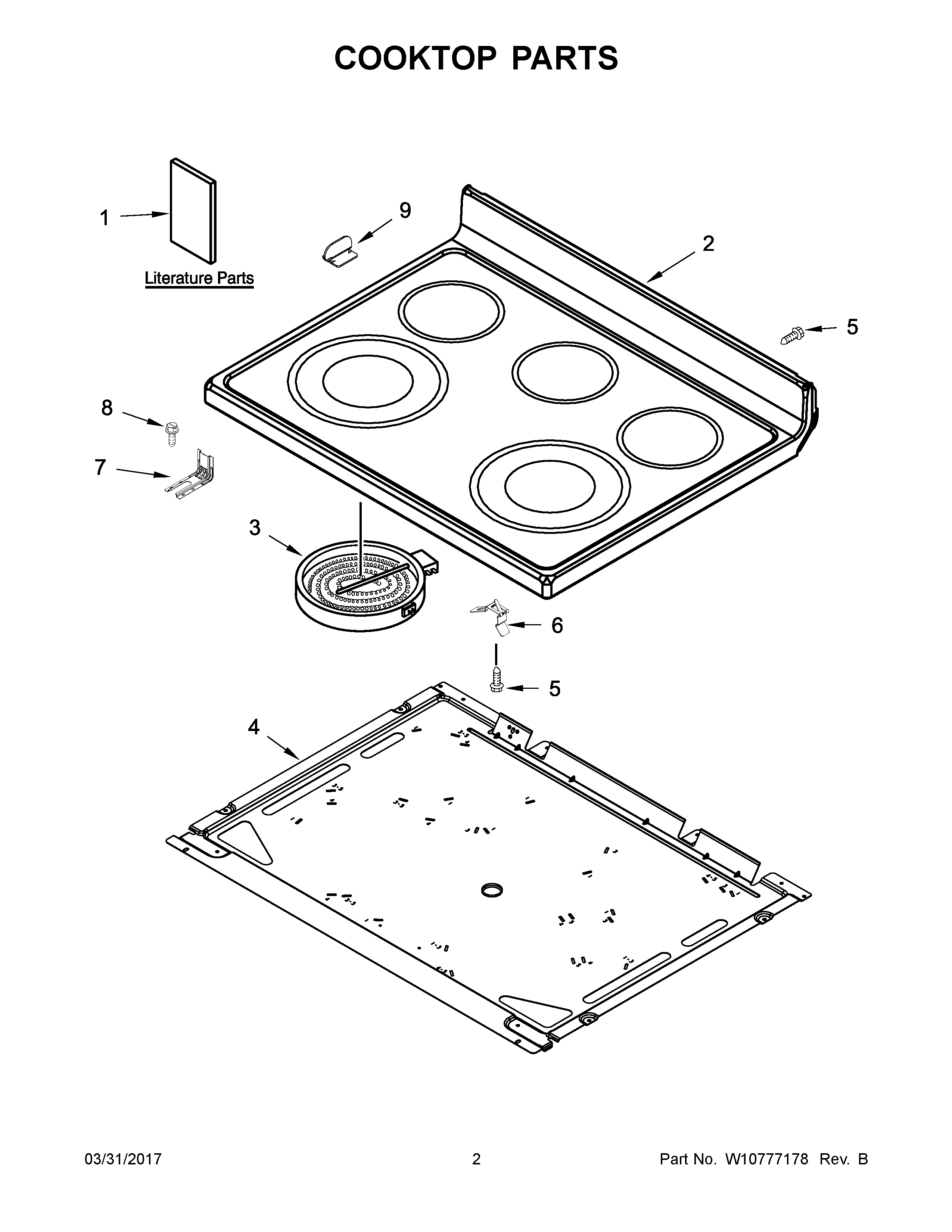

4KWFE7685ES0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134594 Whirlpool Wire Harness
NI	W11172524 Whirlpool Wire Harness
NI	W10261085 Whirlpool Wire Harness
NI	W11134596 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	WPW10281322 Whirlpool Connector
NI	W10465644 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1E	Anti-Tip Template (English/French)
1G	SAFER COOKING TIPS (ENGLISH
1D	INSTRUCTIONS, INSTALLATION
1	USE AND CARE GUIDE (ENGLISH)
1A	USE AND CARE GUIDE (ARABIC)
1B	TECH SHEET (ENGLISH)
1C	TECH SHEET (ARABIC)
1F	Anti-Tip Template (English/Spanish)
2A	W10472030 Whirlpool Cooktop
2	COOKTOP (WHITE)
3A	ELMNT-SURF
3B	W11047722 Whirlpool Radiant Surface Element
3C	W11047668 Whirlpool Surface Element
3	W10823727 Whirlpool Stove Right Front Surface Element
4	PAN
5	WP3196557 Whirlpool Screw
6	WPW10225448 Whirlpool Spring Assembly
7	W11447673 Whirlpool Range Tip Anchor
8	SCREW, ANTI-TIP KIT
9	W10607641 Whirlpool Clip
9A	W10607642 Whirlpool Clip
