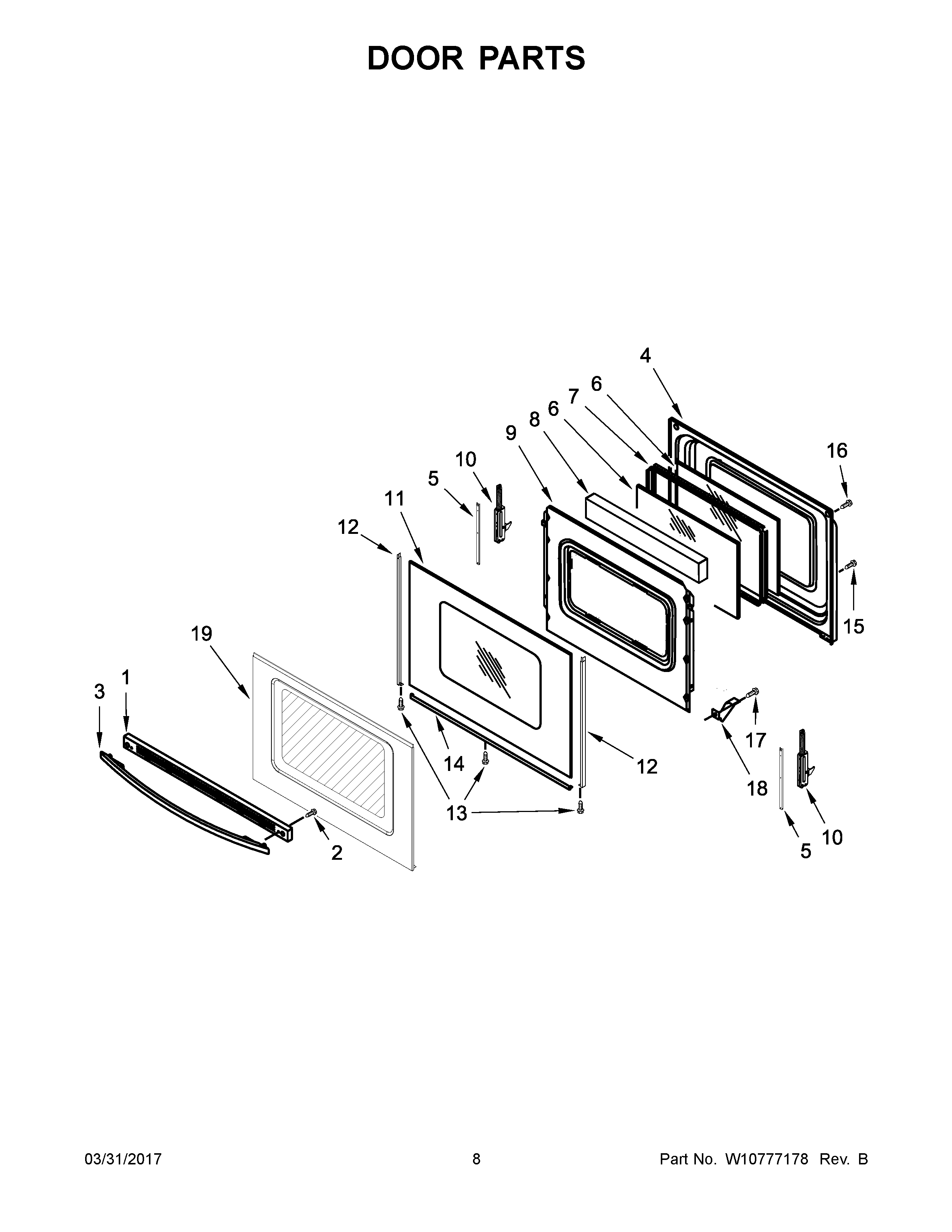

4KWFE7685ES0 05 – DOOR PARTS

4KWFE7685ES0 05 – DOOR PARTS

Written by

in

4KWFE7685ES0 05 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
1ATRIM-VENT
2WPW10465148 Whirlpool Screw
3AWPW10618239 Whirlpool Door Handle
3W10300489 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5W11502236 Whirlpool Door Trim
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299227 Whirlpool Range Door Hinge
10AWPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10409945 Whirlpool Glass Door
12AWP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16W10777162 Whirlpool Screw
17WPW10200660 Whirlpool Range Oven Door Handle Screw
18W10137382 Whirlpool Clip
19WPW10330077 Whirlpool Door Glass
