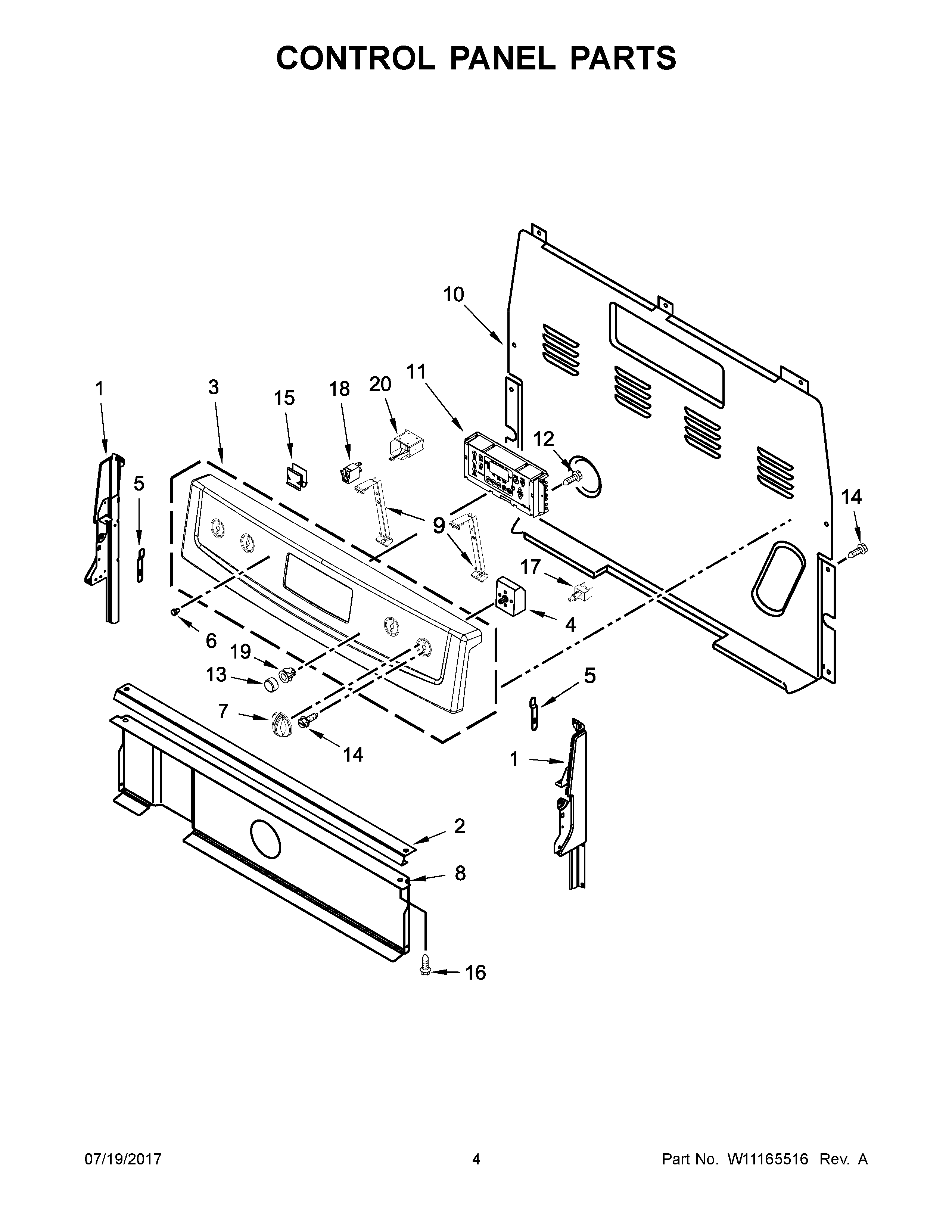

4KWFE7685ES1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1C	W11219665 Whirlpool Panel Endcap
1B	W11219664 Whirlpool Endcap Panel
2	W10525121 Whirlpool Control Bracket
3	PANEL, CONTROL (WHITE)
3A	PANEL, CONTROL (STAINLESS)
4B	SWITCH-INF
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	3196200 Whirlpool Clip
6	WP3196068 Whirlpool Light Lens
7	W10853029 Whirlpool Knob
7A	W10836470 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	W11230932 Whirlpool Bracket Mounting
10	WP8272473 Whirlpool Rear Cover
11A	W11122543-includeCORE Whirlpool W11122543 Electronic Control Board + Core
11	W11122546-includeCORE Whirlpool W11122546 Range Electronic Control Board + Core
12	WP3196557 Whirlpool Screw
13A	W10918209 Whirlpool Push Button
13	9757492 Whirlpool Oven Push Button
14	WP3400882 Whirlpool Screw
15	WP8273564 Whirlpool Clip
16	WP3196175 Whirlpool Screw
17	WP8272820 Whirlpool PB Switch
18	WP8523265 Whirlpool Indicator Light
19	W10217760 Whirlpool Switch Bezel
20	TRANSFORMER
