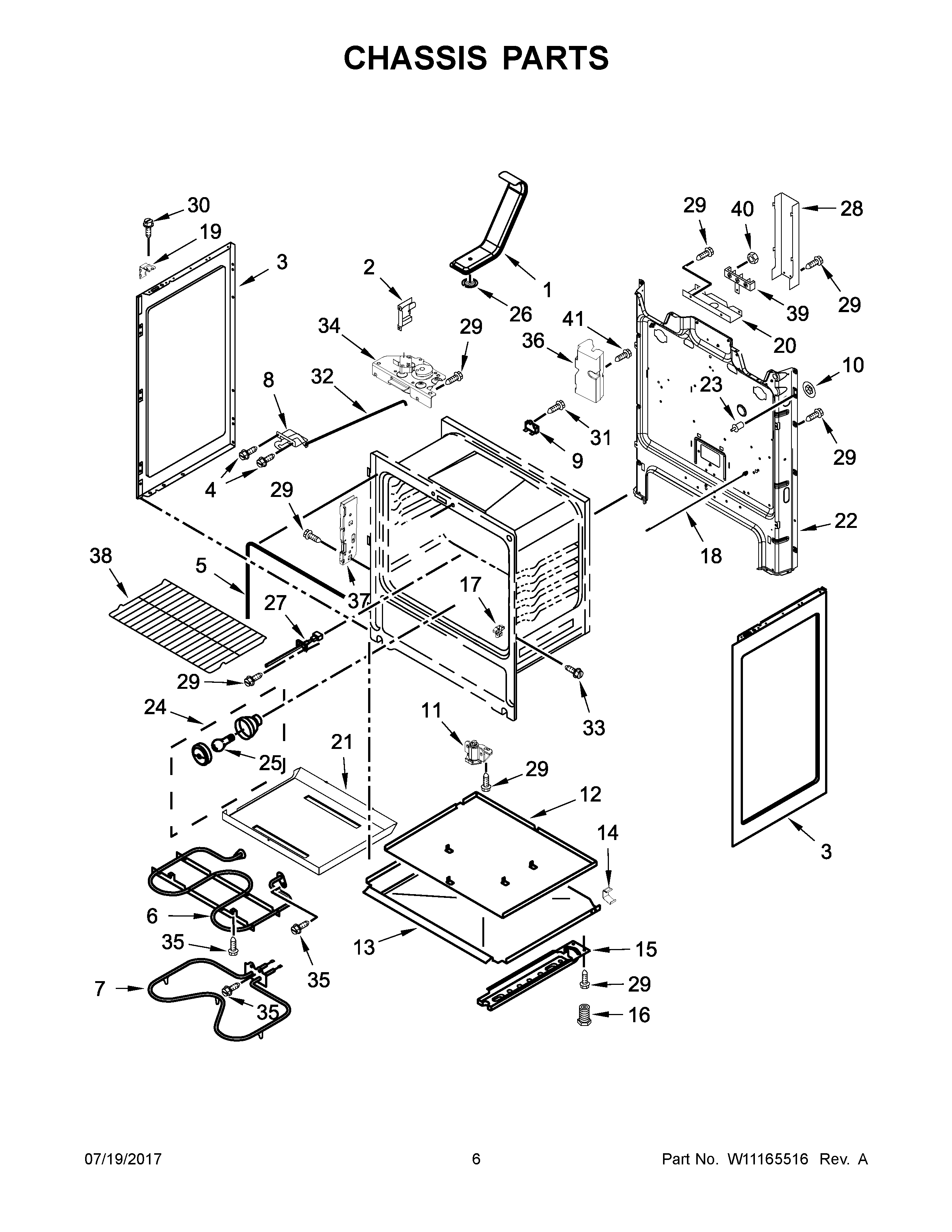

4KWFE7685ES1 04 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	W10326347 Whirlpool Insulation
NI	W11161831 Whirlpool Insulation
NI	W10646923 Whirlpool Insulator
1	WPW10134285 Whirlpool Vent Tube
2	W10404688 Whirlpool Bracket Support
3A	W11730303 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
4	W11169708 Whirlpool Screw
5	W11542153 Whirlpool Door Gasket
6	WP9755770 Whirlpool Bake Element
7	W10856603 Whirlpool Broil Element
8	WP9761013 Whirlpool Door Latch
9	WP3196548 Whirlpool Thermal Fuse
10	WP3400968 Whirlpool Nut
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	W10134125 Whirlpool Retainer Clip
13	W10134121 Whirlpool Insulation Tray
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10807823 Whirlpool Drawer Glide
18	9757239 Whirlpool Oven Door Rod
19	W10183541 Whirlpool Clip Assembly
20	W11728255 Whirlpool Service Bracket
21	W10183712 Whirlpool Bake Tray
22	BACK, MAIN
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	9761301 Whirlpool Oven Screen
27	WPW10181986 Whirlpool Oven Sensor
28	WPW10326122 Whirlpool Black Cover
29	WP3196557 Whirlpool Screw
30	WP3400016 Whirlpool Screw Assembly
31	3196172 Whirlpool Oven Screw
32	Rod, Latch
33	Screw
34	WPW10107820 Whirlpool Door Latch
35	WP3196174 Whirlpool Screw
36	W11135752 Whirlpool Anchor Tip
37	W10647259 Whirlpool Hinge Receiver
38	RACK-OVEN
39	WPW10245259 Whirlpool Terminal Block
40	Nut
41	W11135756 Whirlpool Screw Torx
