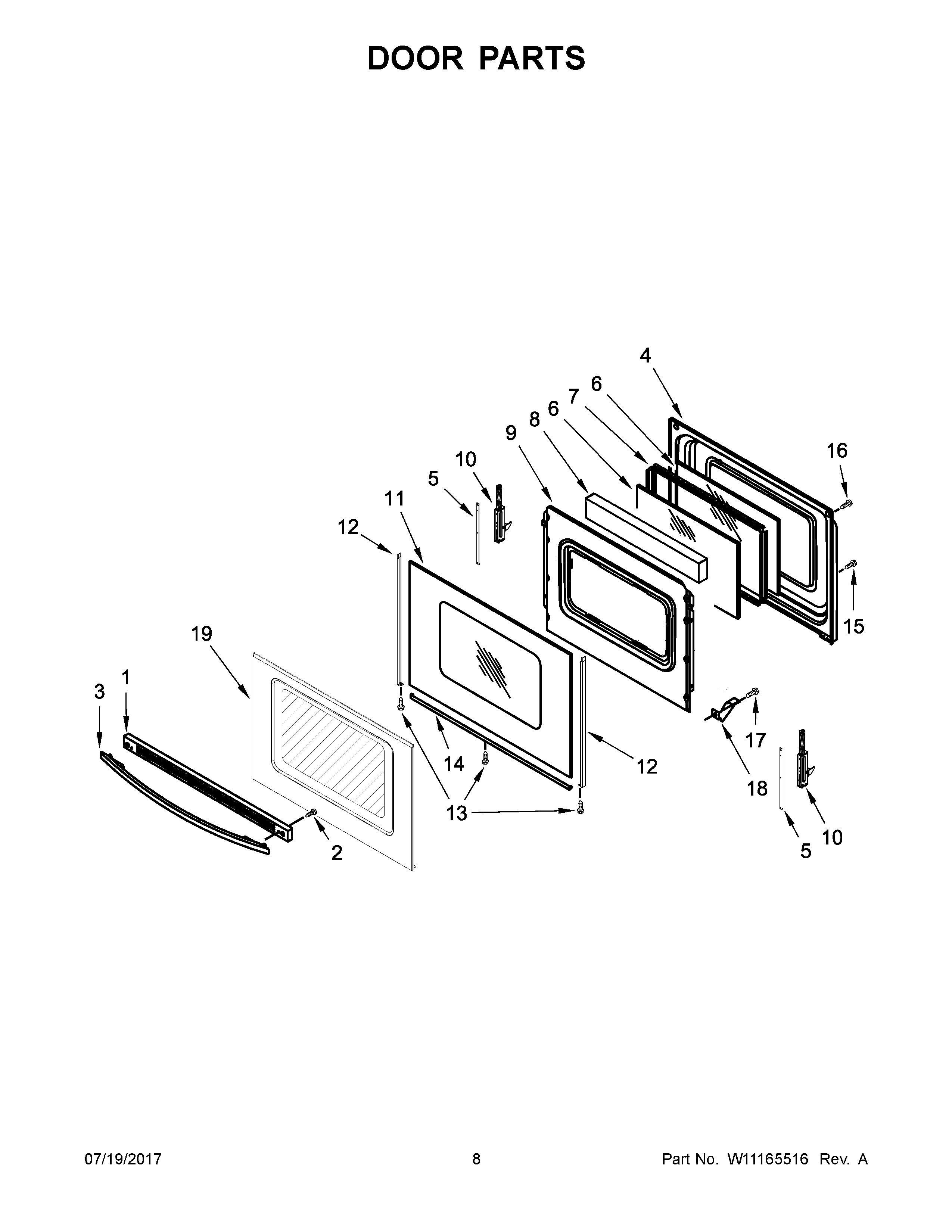

4KWFE7685EW1 05 – DOOR PARTS

Products

Position	Product
1A	TRIM-VENT
1	W10817433 Whirlpool Vent Trim
2	WPW10465148 Whirlpool Screw
3A	WPW10618239 Whirlpool Door Handle
3	W10300489 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	W11502236 Whirlpool Door Trim
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10A	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10	WPW10299227 Whirlpool Range Door Hinge
11	WPW10409945 Whirlpool Glass Door
12A	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	WP355214 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W10777162 Whirlpool Screw
17	WPW10200660 Whirlpool Range Oven Door Handle Screw
18	W10137382 Whirlpool Clip
19	WPW10330077 Whirlpool Door Glass
