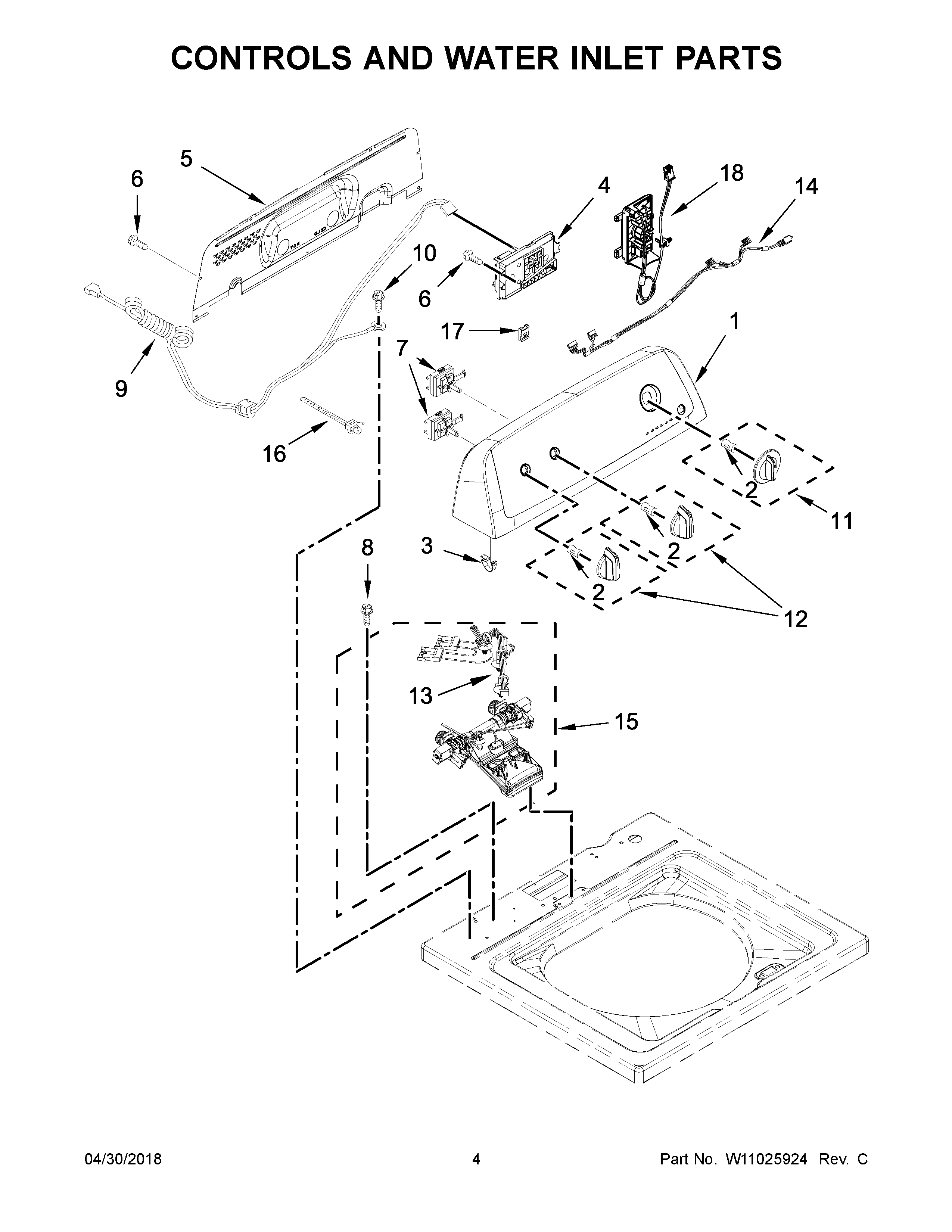

4KWTW4605FW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10476820 Whirlpool Adapter
NI	10A CORD LOCK
NI	WPW10476822 Whirlpool Adapter
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WP8312709 Whirlpool Endcap Clip
4	W11125190 Whirlpool Electronic Control Board + Core
5	W10409320 Whirlpool Rear Panel
6	W11685943 Whirlpool Screw
7	WPW10414397 Whirlpool Cycle Switch
8	WPW10213953 Whirlpool Screw
9	CORD, UNIVERSAL POWER
10	W10846509 Whirlpool Screw
11	WPW10711289 Whirlpool Washer Control Knob Dryer
12	WPW10453947 Whirlpool Knob
13	HARNESS, VALVE
14	W11256701 Whirlpool Wire Harness
15	W11038628 Whirlpool Valve Assembly
16	WPW10339879 Whirlpool Wire Tie
17	W11213336 Whirlpool Nut
18	LINE FILTER ASSY
