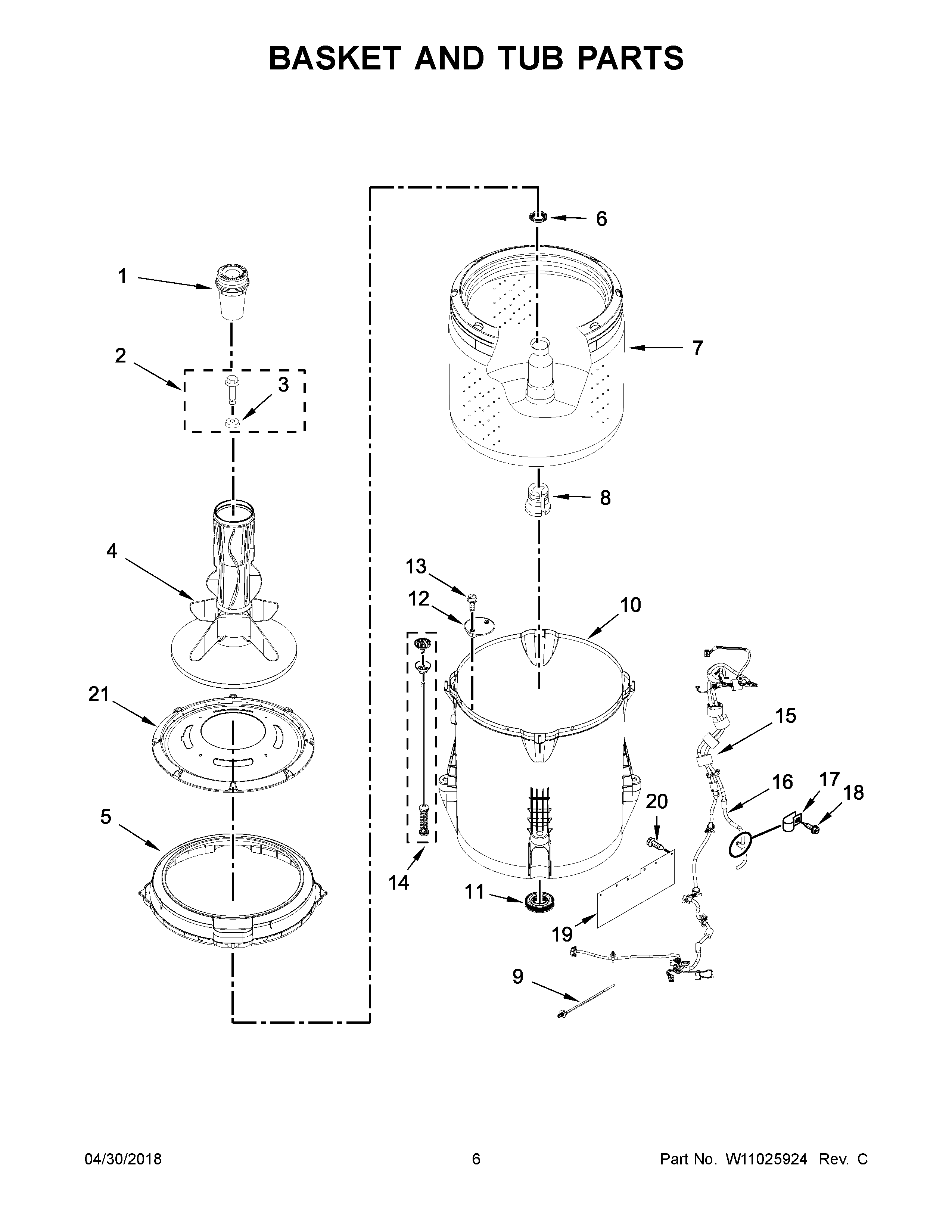

4KWTW4605FW0 04 – BASKET AND TUB PARTS

4KWTW4605FW0 04 – BASKET AND TUB PARTS

Written by

in

4KWTW4605FW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W11024702 Whirlpool Dispenser
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4AGITATOR
5WPW10531289 Whirlpool Tub Ring
6WP21366 Whirlpool Spanner Nut
7W10584118 Whirlpool Basket
8WP389140 Whirlpool Drive Block or Bell
9WPW10339879 Whirlpool Wire Tie
10W10371566 Whirlpool Outer Tub
11W10324647 Whirlpool Seal Tub
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
14W10780045 Whirlpool Suspension Rod
15HARNESS, LOWER
16W10846364 Whirlpool Hose
17W10005430 Whirlpool Clamp
18WPW10109200 Whirlpool Screw
19W10339098 Whirlpool Shield
20W10429200 Whirlpool Retainer
21W11085570 Whirlpool Shield
