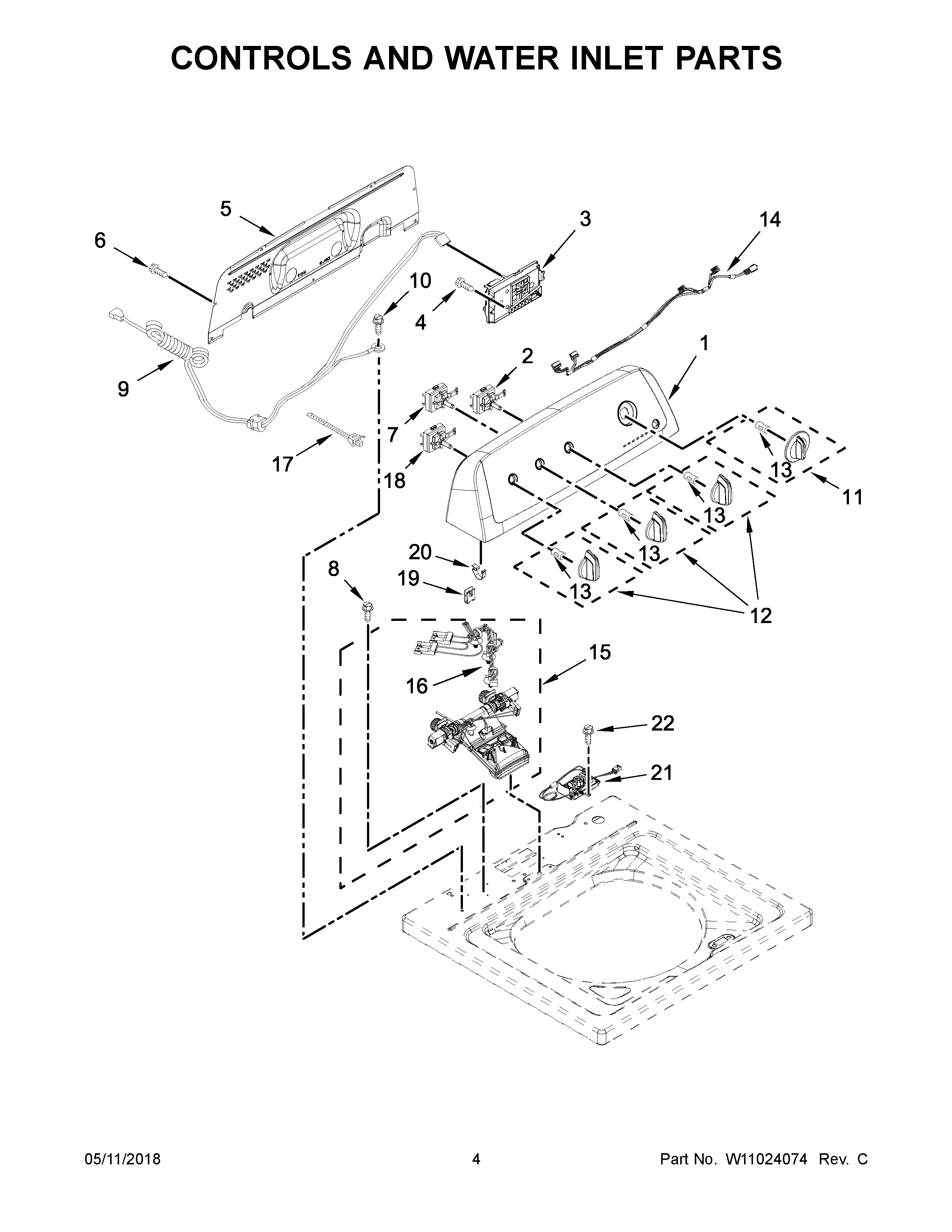

4KWTW4705FW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	10A CORD LOCK
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10476820 Whirlpool Adapter
1	PANEL, CONSOLE
2	W11168256 Whirlpool Cycle Switch
3	W11125192 Whirlpool Electronic Control Board + Core
4	W10846509 Whirlpool Screw
5	W10409320 Whirlpool Rear Panel
6	W11685943 Whirlpool Screw
7	WPW10414398 Whirlpool Cycle Switch
8	WPW10213953 Whirlpool Screw
9	CORD, UNIVERSAL POWER
10	WPW10109200 Whirlpool Screw
11	WPW10711289 Whirlpool Washer Control Knob Dryer
12	WPW10453947 Whirlpool Knob
13	WP8536939 Whirlpool Spring Clip
14	W10694671 Whirlpool Wire Harness
15	W11038628 Whirlpool Valve Assembly
16	HARNESS, VALVE
17	WPW10339879 Whirlpool Wire Tie
18	WPW10414397 Whirlpool Cycle Switch
19	W11213336 Whirlpool Nut
20	WP8312709 Whirlpool Endcap Clip
21	LINE FILTER ASSY
22	W11568617 Whirlpool Screw
