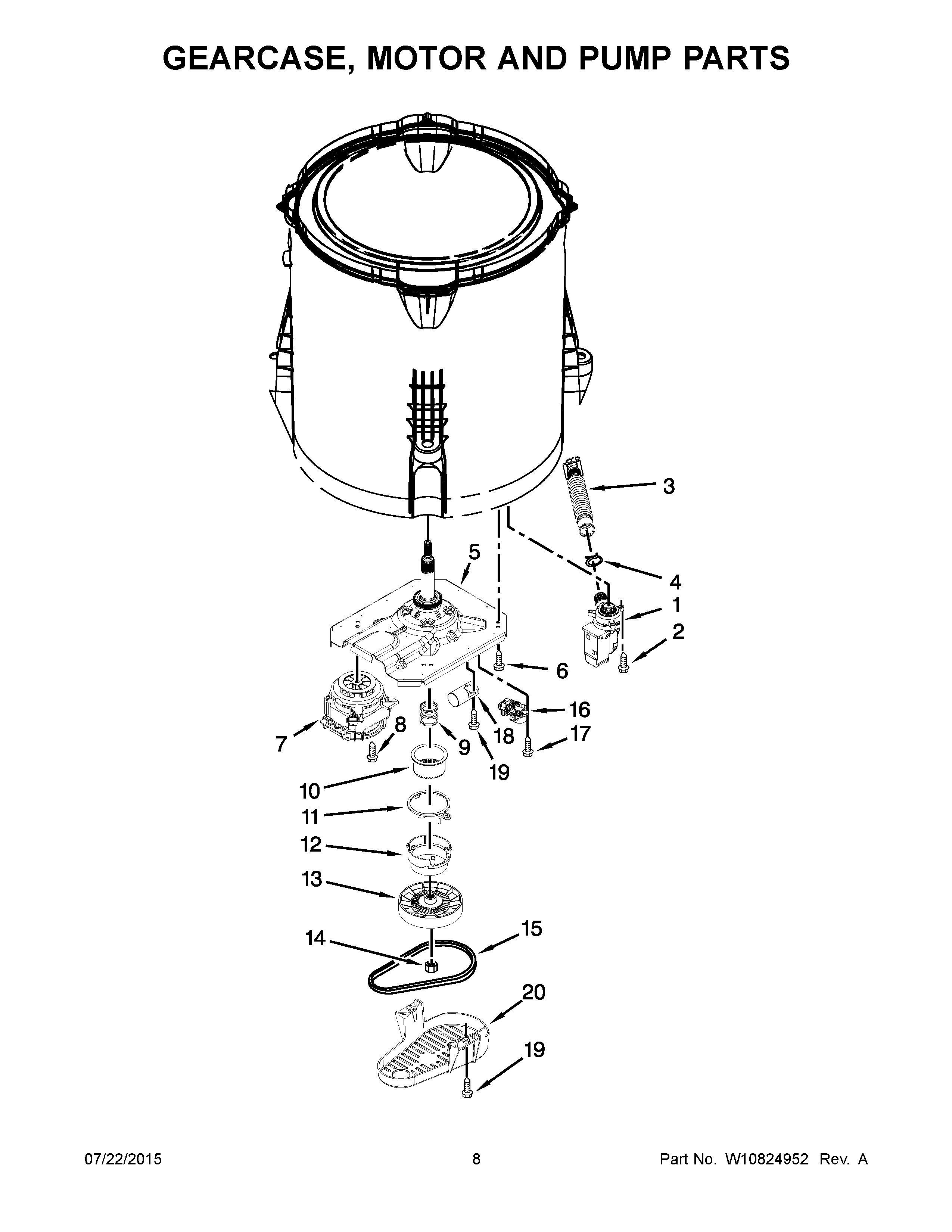

4KWTW4730EQ0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10297344 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W11039788 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9SPRING, SPLUTCH
10SLIDER, SPLUTCH
11CAM RING, SPLUTCH
12CAM, SPLUTCH
13W10721967 Whirlpool Washer Cam Kit
14W10759923 Whirlpool Washer Pulley Nut
15WPW10006384 Whirlpool Washer Drive Belt
16W11511138 Whirlpool Actuator
17W11596033 Whirlpool Microwave Screw
18W11168653 Whirlpool Capacitor
19W11573574 Whirlpool Screw
20WPW10427633 Whirlpool Belt Shield
