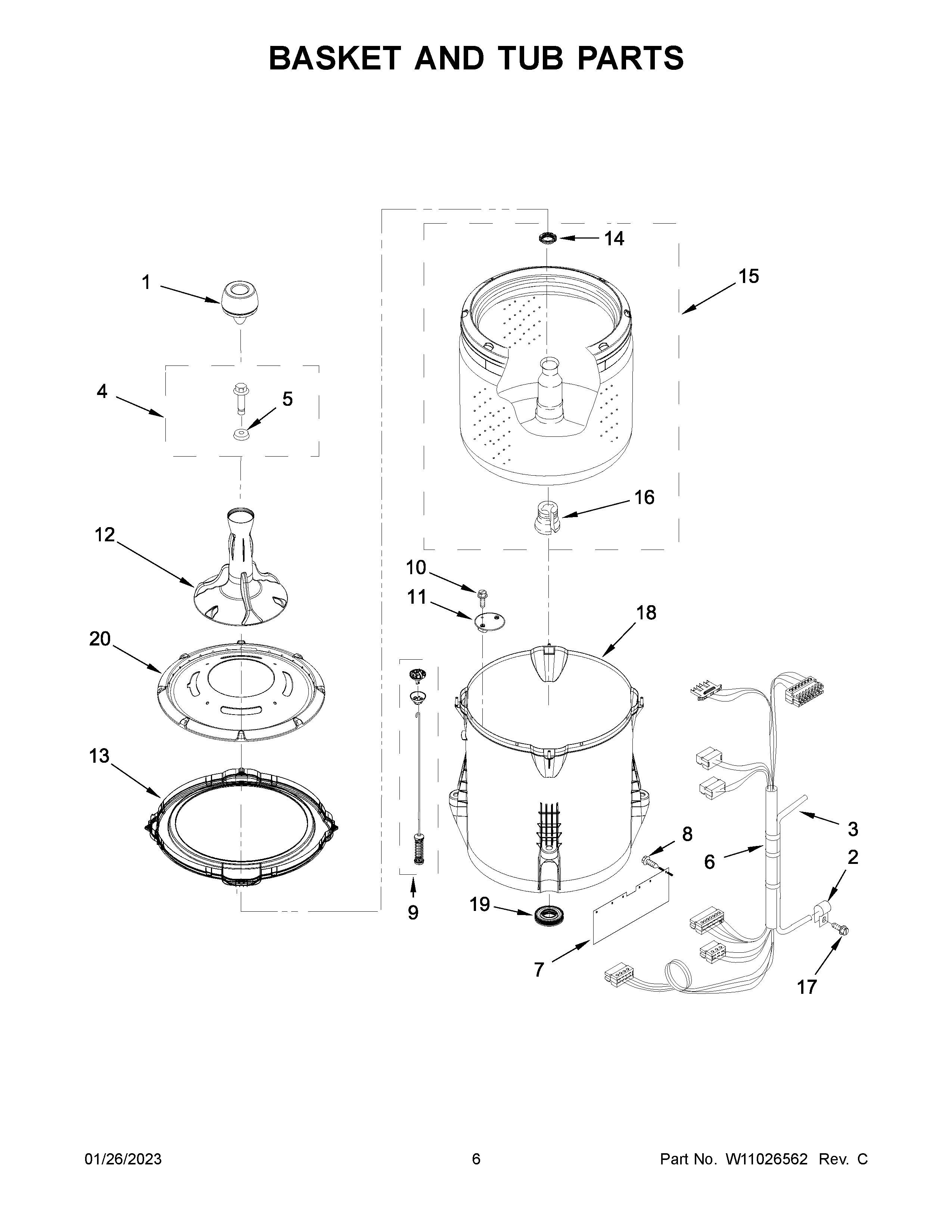

4KWTW4815FW0 04 – BASKET AND TUB PARTS

4KWTW4815FW0 04 – BASKET AND TUB PARTS

Written by

in

4KWTW4815FW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W11024702 Whirlpool Dispenser
2W10005430 Whirlpool Clamp
3WP353244 Whirlpool Hose
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6HARNESS, LOWER
7W10339098 Whirlpool Shield
8W10429200 Whirlpool Retainer
9W10780045 Whirlpool Suspension Rod
10WP8533928 Whirlpool Refrigerator Screw
11WPW10215093 Whirlpool Filter
12AGITATOR
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17WPW10109200 Whirlpool Screw
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20W11085570 Whirlpool Shield
