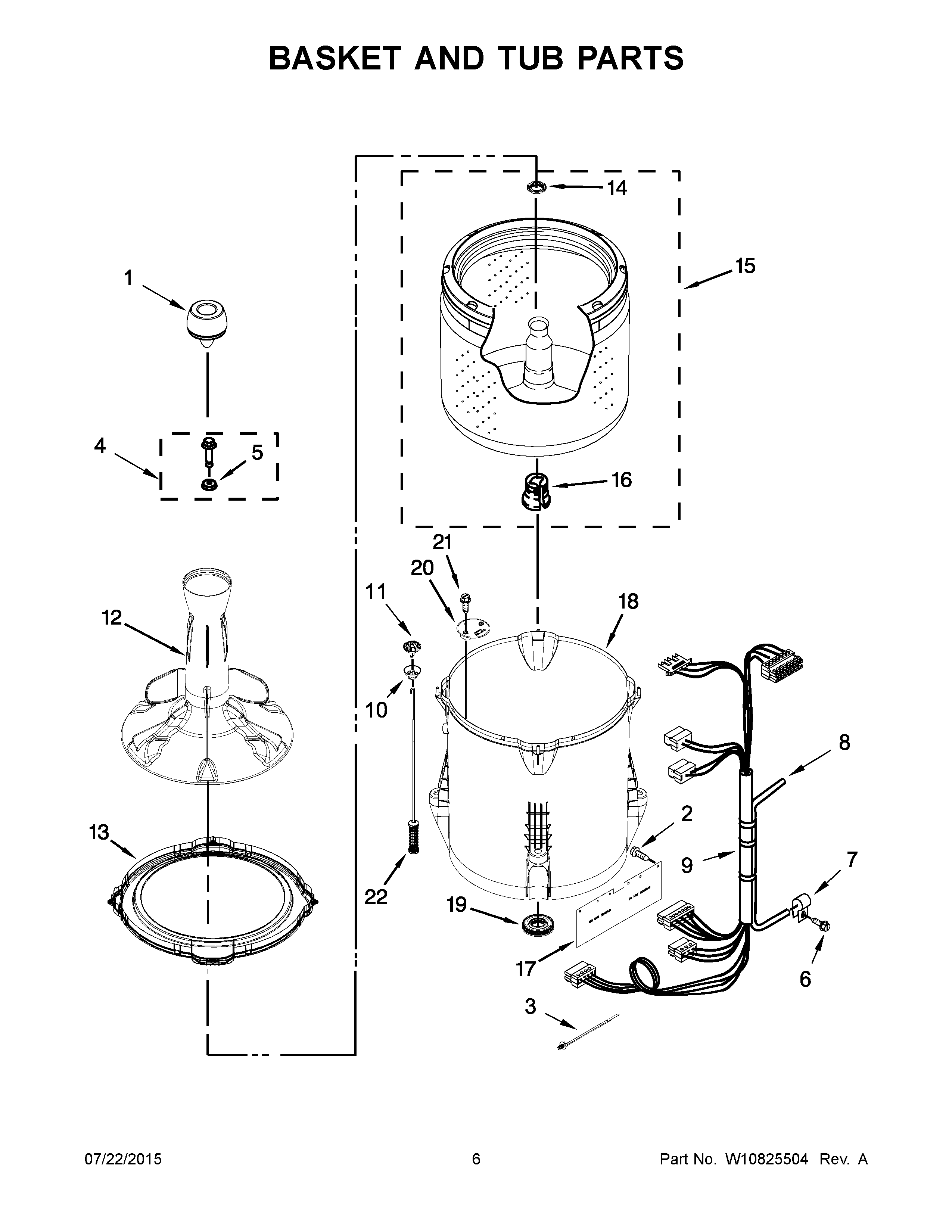

4KWTW4830EQ0 04 – BASKET AND TUB PARTS

4KWTW4830EQ0 04 – BASKET AND TUB PARTS

Written by

in

4KWTW4830EQ0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W11024702 Whirlpool Dispenser
2W10429200 Whirlpool Retainer
3WPW10339879 Whirlpool Wire Tie
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6WPW10109200 Whirlpool Screw
7W10005430 Whirlpool Clamp
8WP353244 Whirlpool Hose
9HARNESS, LOWER
10W10440729 Whirlpool Suspension
11W10780046 Whirlpool Suspension Rod Kit
12AGITATOR
13RING-TUB
14WP21366 Whirlpool Spanner Nut
15W10349185 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17W10339098 Whirlpool Shield
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20WPW10215093 Whirlpool Filter
21WP8533928 Whirlpool Refrigerator Screw
22W10780048 Whirlpool Washer Suspension Rod Assembly
