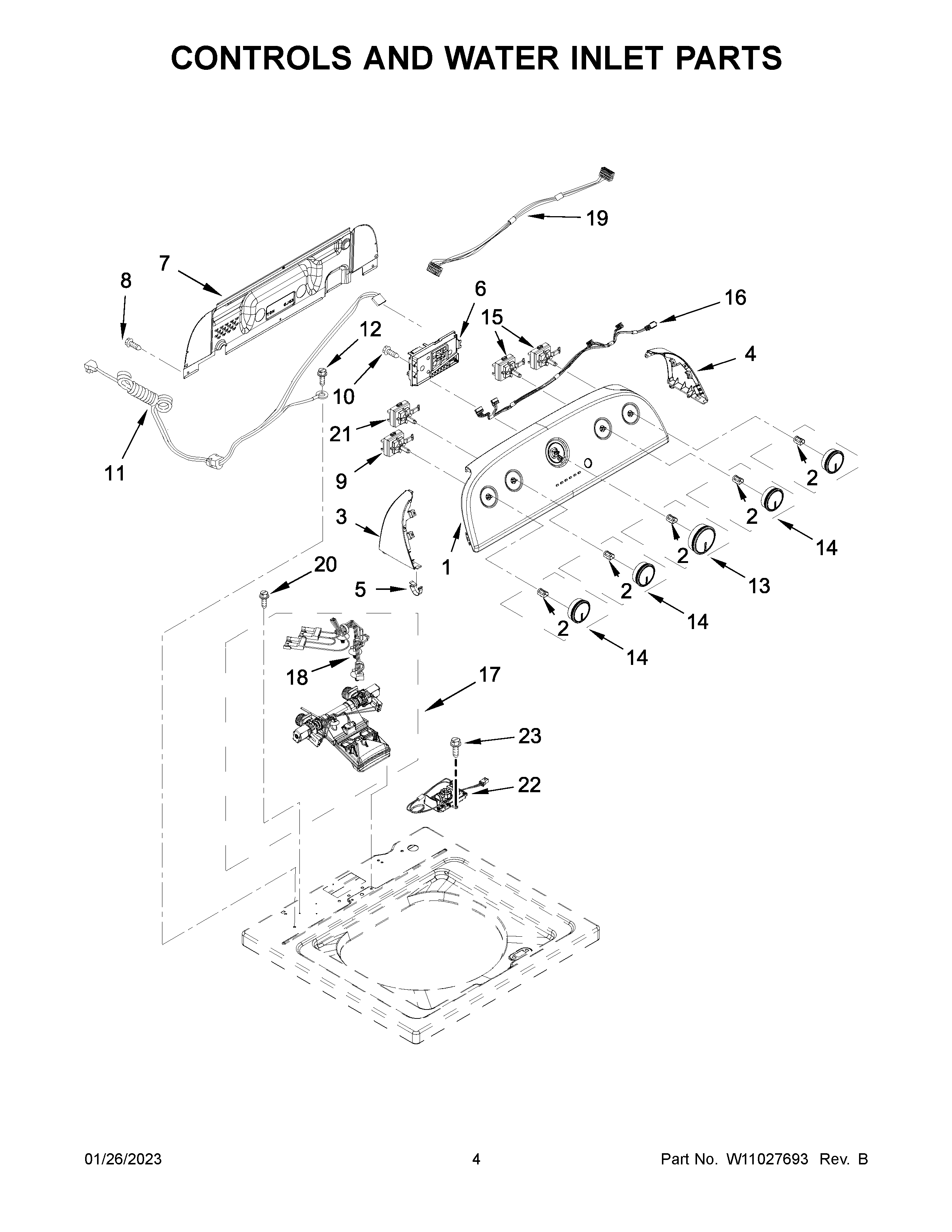

4KWTW4845FW0 03 – CONTROLS AND WATER INLET PARTS

Written by

Products

Position	Product
NI	10A CORD LOCK
NI	WPW10476822 Whirlpool Adapter
NI	WPW10476820 Whirlpool Adapter
NI	WPW10475423 Whirlpool Adapter
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	END CAP (LEFT) (WHITE)
4	END CAP (RIGHT) (WHITE)
5	WP8312709 Whirlpool Endcap Clip
6	W11125198-includeCORE Whirlpool W11125198 Refrigerator Electronic Control Board
7	W10552335 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10285512 Whirlpool Cycle Switch
10	WP90767 Whirlpool Screw
11	W10834290 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	W10756270 Whirlpool Dryer Timer Knob
15	WPW10285511 Whirlpool Cycle Switch
16	W11211519 Whirlpool Wire Harness
17	W11038628 Whirlpool Valve Assembly
18	W10678671 Whirlpool Wire Harness
19	W10786100 Whirlpool Wire Harness
20	WPW10213953 Whirlpool Screw
21	WPW10285518 Whirlpool Cycle Switch
22	W11660637 Whirlpool Filter
23	W11568617 Whirlpool Screw
