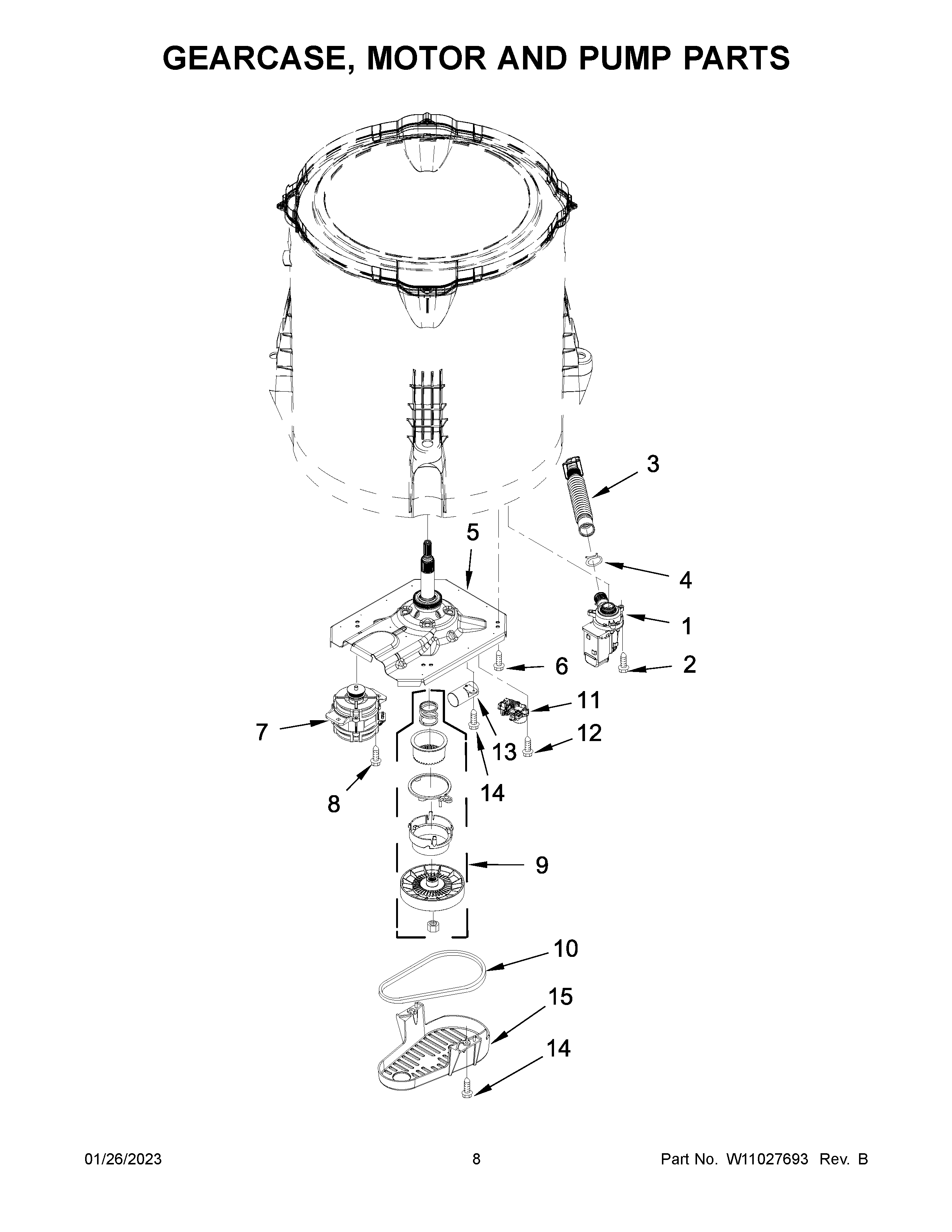

4KWTW4845FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

4KWTW4845FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

4KWTW4845FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10297344 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W11039789 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10WPW10006384 Whirlpool Washer Drive Belt
11W11511138 Whirlpool Actuator
12W11596033 Whirlpool Microwave Screw
13W11168653 Whirlpool Capacitor
14W11573574 Whirlpool Screw
15WPW10550173 Whirlpool Shield Assembly
