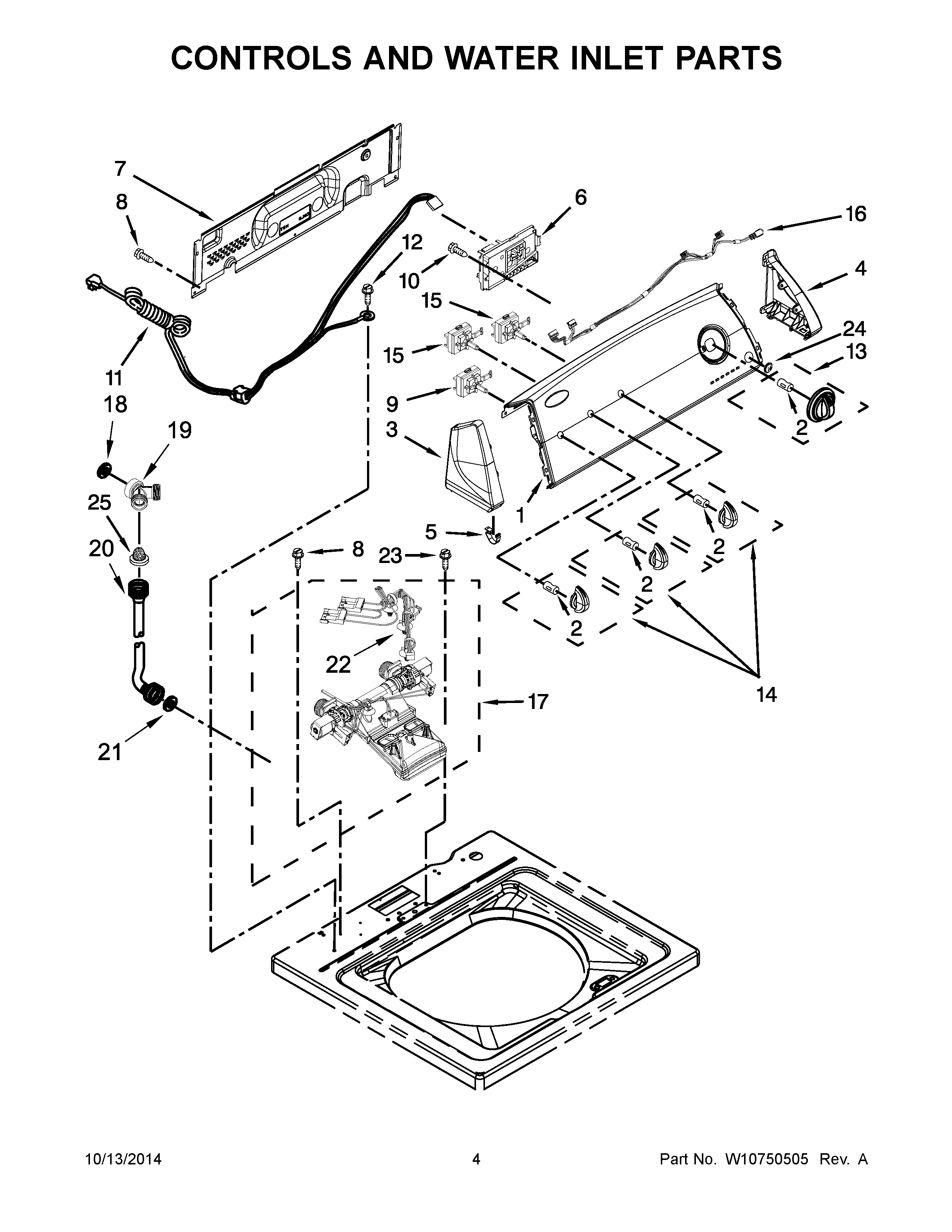

4KWTW4930DQ0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	WPW10476822 Whirlpool Adapter
NI	WPW10476820 Whirlpool Adapter
NI	CABINET (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	WPW10475423 Whirlpool Adapter
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WP8565957 Whirlpool Endcap Assembly
4	WP8565954 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W11086972 Whirlpool Electronic Control Board + Core
7	WPW10461159 Whirlpool Rear Panel
8	WPW10213953 Whirlpool Screw
9	WPW10285512 Whirlpool Cycle Switch
10	WP90767 Whirlpool Screw
11	W10422755 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	TIMER KNOB ASSEMBLY
14	Knob, Control (3)
15	WPW10285511 Whirlpool Cycle Switch
16	W10291183 Whirlpool Wire Harness
17	WPW10683676 Whirlpool Valve
18	WP3357450 Whirlpool Washer Assembly
19	WPW10269488 Whirlpool Connector
20	WP89503 Whirlpool Washer Fill Hose
21	WP16123 Whirlpool Washer
22	W10876654 Whirlpool Wire Harness
23	WP8281163 Whirlpool Refrigerator Screw
24	WPW10251309 Whirlpool Push Button
25	285452A Whirlpool Hose Seal and Screen
