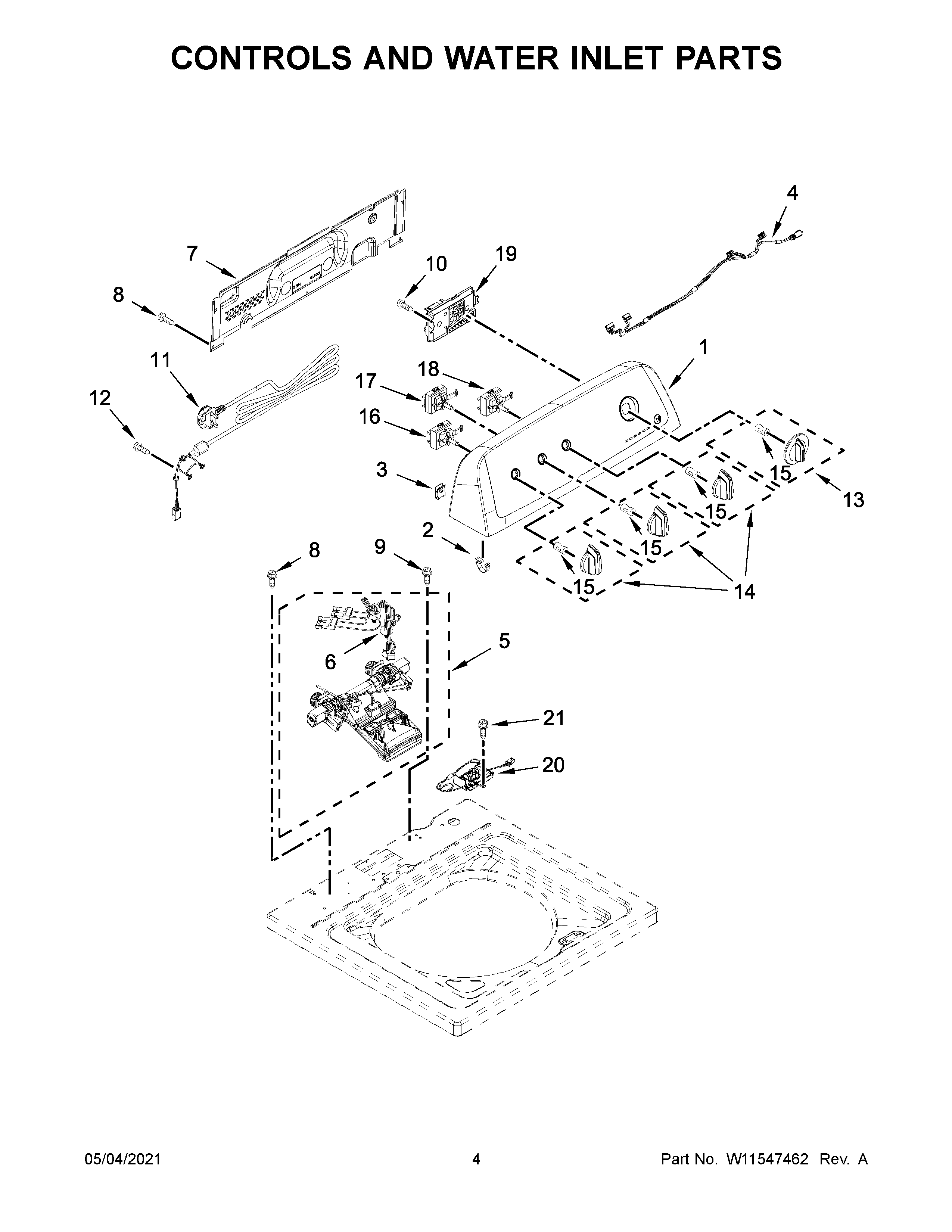

4KWTW5700JW1 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP8312709 Whirlpool Endcap Clip
3	W11213336 Whirlpool Nut
4	W10694671 Whirlpool Wire Harness
5	W11038628 Whirlpool Valve Assembly
6	HARNESS, VALVE
7	W10409320 Whirlpool Rear Panel
8	W11685943 Whirlpool Screw
9	WPW10213953 Whirlpool Screw
10	W10846509 Whirlpool Screw
11	CORD, POWER (BRITISH)
12	WPW10109200 Whirlpool Screw
13	WPW10711289 Whirlpool Washer Control Knob Dryer
14	WPW10453947 Whirlpool Knob
15	WP8536939 Whirlpool Spring Clip
16	WPW10414397 Whirlpool Cycle Switch
17	WPW10414398 Whirlpool Cycle Switch
18	W11168256 Whirlpool Cycle Switch
19	W11401127 Whirlpool Electronic Control Board + Core
20	LINE FILTER ASSY
21	W11568617 Whirlpool Screw
