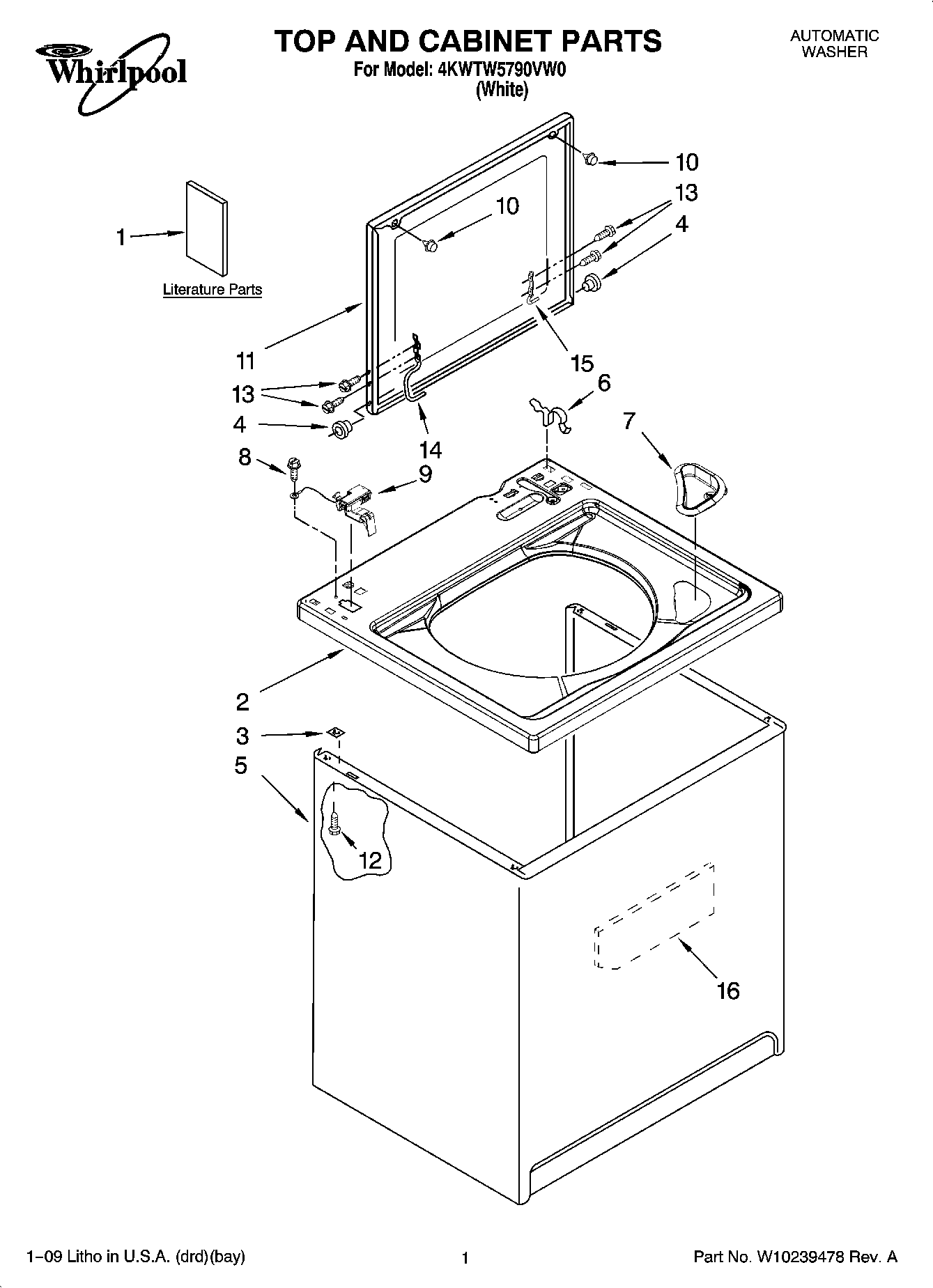

4KWTW5790VW0 01 – TOP AND CABINET PARTS

4KWTW5790VW0 01 – TOP AND CABINET PARTS

Written by

in

4KWTW5790VW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1Installation Instructions
1Feature Sheet
2Top
3WP62750 Whirlpool Spacer
4Bearing, Lid Hinge (2)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WPW10192089 Whirlpool Washer Bleach Dispenser
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP9724509 Whirlpool Bumper
11Lid
12WP3390631 Whirlpool Screw
13SCREW
14Hinge, Lid (L.H.)
15WP91770 Whirlpool Hinge
16W11096159 Whirlpool Sound ABS Assembly
