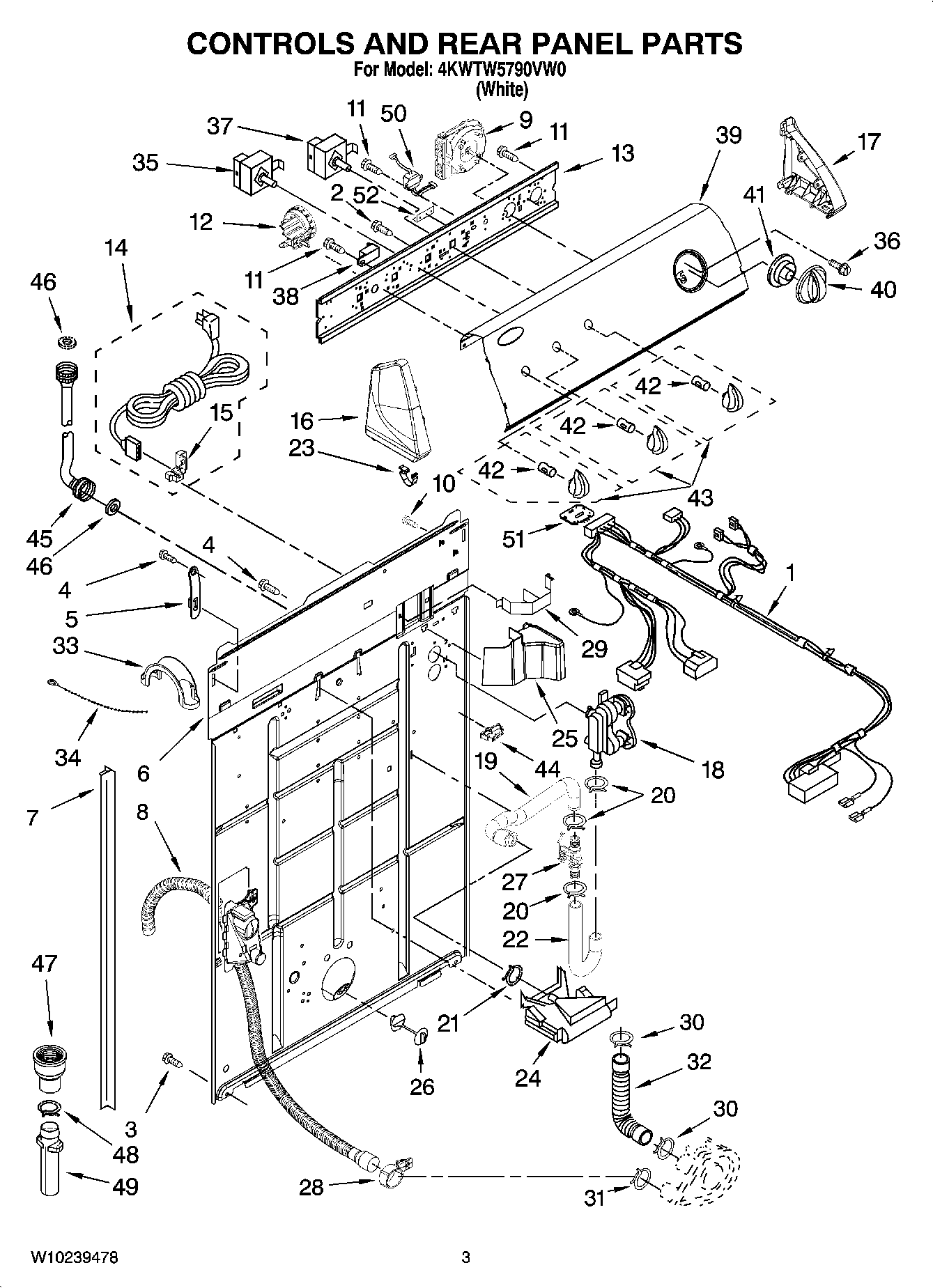

4KWTW5790VW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Wiring Harness (For Detail See Pages 9 & 10)
2	3400073 Whirlpool Screw
3	WP3390631 Whirlpool Screw
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10110460 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	WP3360397 Whirlpool Valve
19	WP3349365 Whirlpool Hose
20	WP596669 Whirlpool Hose Clamp
22	WP3357319 Whirlpool Hose
23	WP8312709 Whirlpool Endcap Clip
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Sh
26	WP8519200 Whirlpool Support Assembly
27	Sensor-ETC-Inline
28	8541668 Whirlpool Washer Clamp
29	Clip, Harness & Pressure Hose
30	WP616099 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	WP8577378 Whirlpool Retainer
34	WPW10339879 Whirlpool Wire Tie
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
37	W10168264 Whirlpool Cycle Switch
38	3952439 Whirlpool Buzzer
39	Panel, Console
40	Knob, Timer
41	WP8566018 Whirlpool Dial Assembly
42	WP8536939 Whirlpool Spring Clip
43	Knob, Control (3)
44	Clip, Harness
45	WP89503 Whirlpool Washer Fill Hose
45	FILL HOSE 5' W/WASHER
46	WP16123 Whirlpool Washer
47	WP8577375 Whirlpool Hose Coupler
48	WP285655 Whirlpool Hose Clamp
49	3363920A Whirlpool Adapter Assembly
50	3407160 Whirlpool Transformer
51	WPW10110247 Whirlpool Electronic Control Board
52	Shield, ATC
