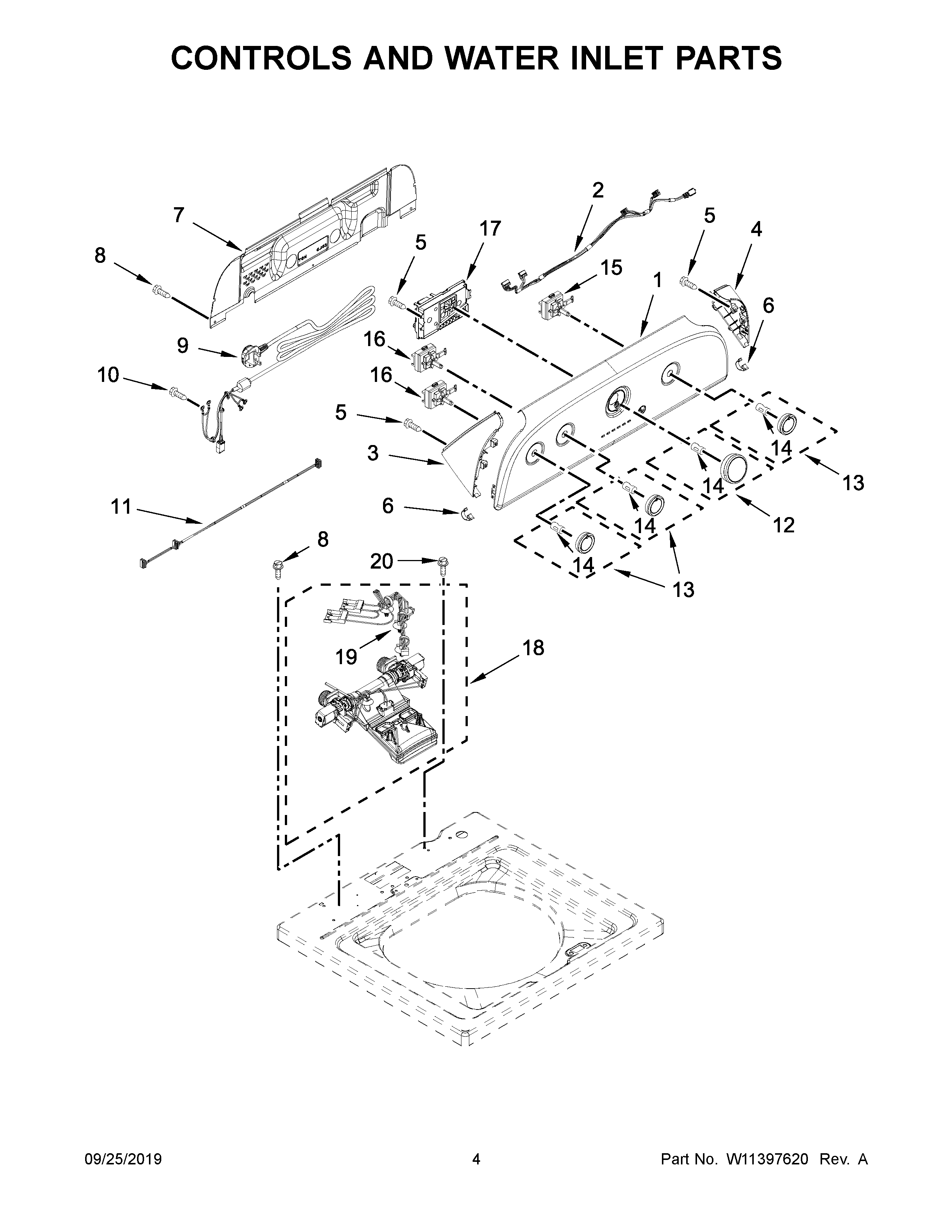

4KWTW5800JW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	W10786100 Whirlpool Wire Harness
3	END CAP (LEFT) (WHITE)
4	END CAP (RIGHT) (WHITE)
5	WP90767 Whirlpool Screw
6	WP8312709 Whirlpool Endcap Clip
7	W10552335 Whirlpool Rear Panel
8	W11685943 Whirlpool Screw
9	CORD, POWER
10	W10846509 Whirlpool Screw
11	W10694682 Whirlpool Wire Harness
12	W10756270 Whirlpool Dryer Timer Knob
14	WP688805 Whirlpool Spring Clip
15	WPW10285517 Whirlpool Cycle Switch
16	WPW10285512 Whirlpool Cycle Switch
17	W11401713 Whirlpool Electronic Control Board + Core
18	W11038628 Whirlpool Valve Assembly
19	HARNESS, VALVE
20	WPW10213953 Whirlpool Screw
21	W11660637 Whirlpool Filter
22	W11568617 Whirlpool Screw
