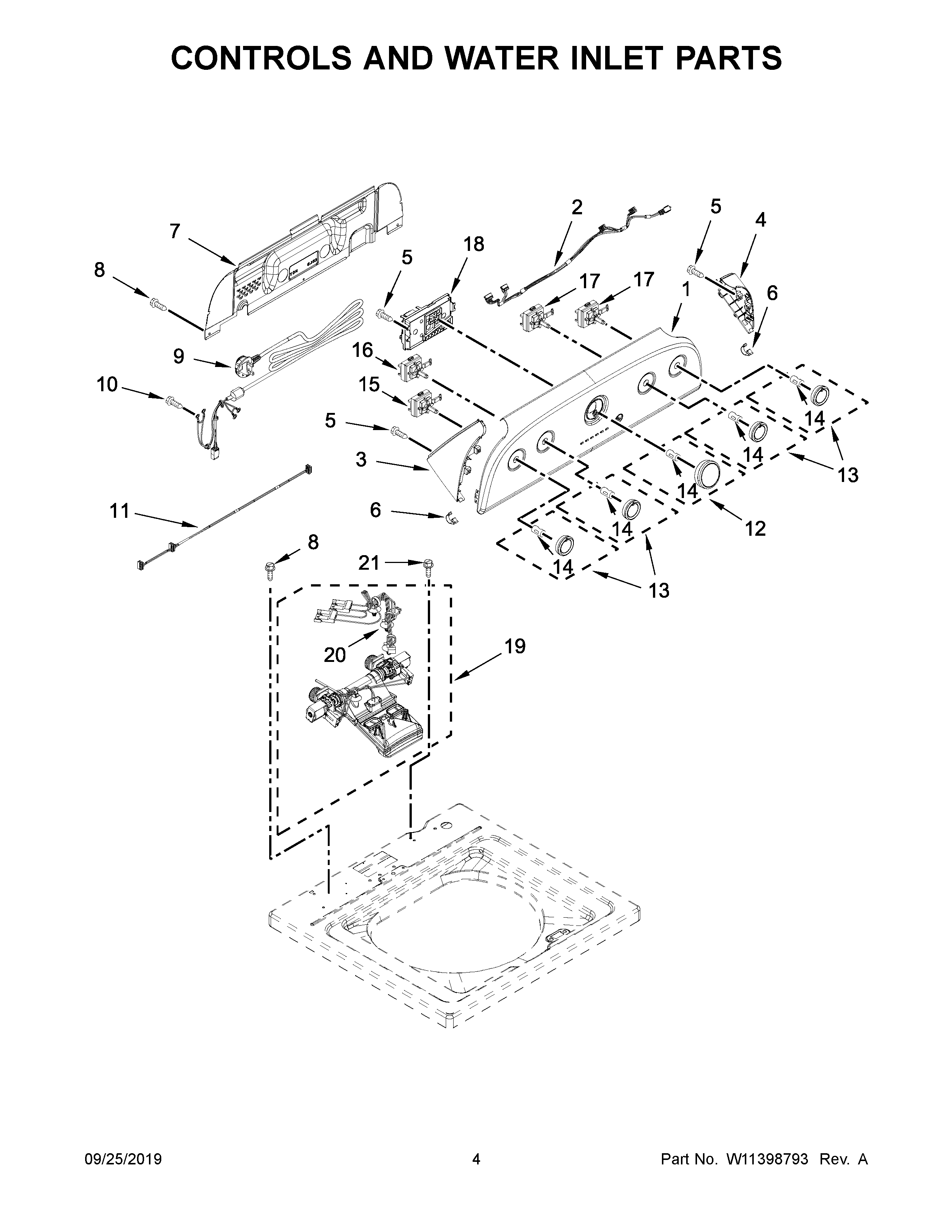

4KWTW5900JW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2W10786100 Whirlpool Wire Harness
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5WP90767 Whirlpool Screw
6WP8312709 Whirlpool Endcap Clip
7W10552335 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9CORD, POWER
10W10846509 Whirlpool Screw
11W11211519 Whirlpool Wire Harness
12W10756270 Whirlpool Dryer Timer Knob
14WP688805 Whirlpool Spring Clip
15WPW10285512 Whirlpool Cycle Switch
16WPW10285518 Whirlpool Cycle Switch
17WPW10285511 Whirlpool Cycle Switch
18W11417465 Whirlpool Electronic Control Board + Core
19W11038628 Whirlpool Valve Assembly
20HARNESS, VALVE
21WPW10213953 Whirlpool Screw
22W11660637 Whirlpool Filter
23W11568617 Whirlpool Screw
