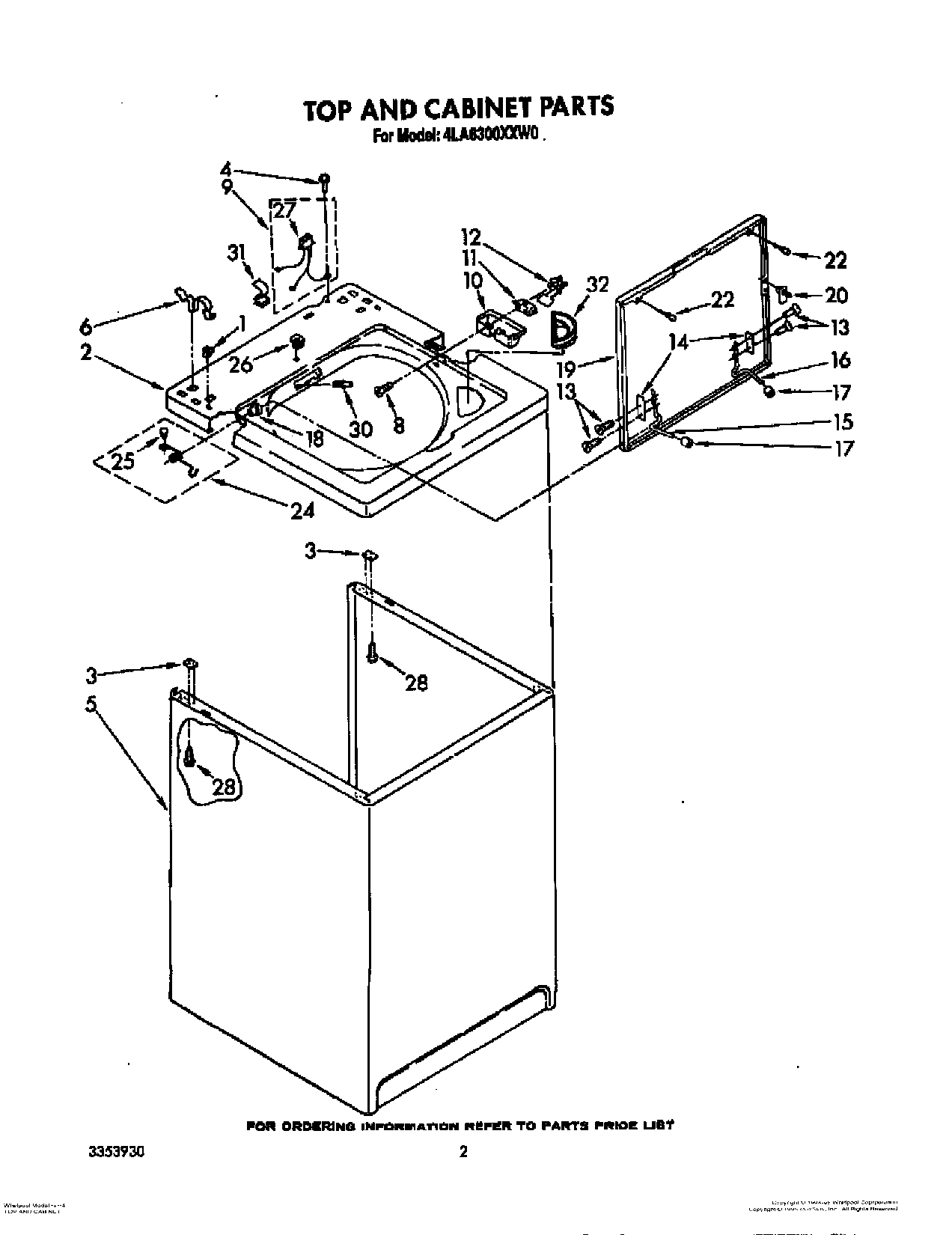

4LA6300XXM0 02 – TOP AND CABINET, LIT/OPTIONAL

4LA6300XXM0 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

4LA6300XXM0 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL 89121
WPL LIT3351410
WPL 63763
WPL LIT3355499
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT3353930
WPL LIT3353853
WP285195 Whirlpool Sealer Assembly
Golden Harvest (Uncut)
WPL LIT3351813
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
350956 Whirlpool Spray Assembly
Almond (Uncut)
Golden Harvest
285320 Whirlpool Washer Siphon Break Kit
Drain Protector (Not Included)
350572 Whirlpool Oil Transmission 15 Oz
63580 Whirlpool Washer Fabric Softener Dispenser
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
1Nut, Push-In (2)
2Top (Platinum)
2Top (Almond)
2Top (White)
2Top (Toast)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
4SCREW
5Cabinet (Platinum)
5Cabinet (Golden Harvest)
5Cabinet (Almond)
5Cabinet (White)
5Cabinet (Toast)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
19Lid (Almond)
19Lid (Golden Harvest)
19Lid (Toast)
19Lid (Platinum)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
24Spring & Button, Lid
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
