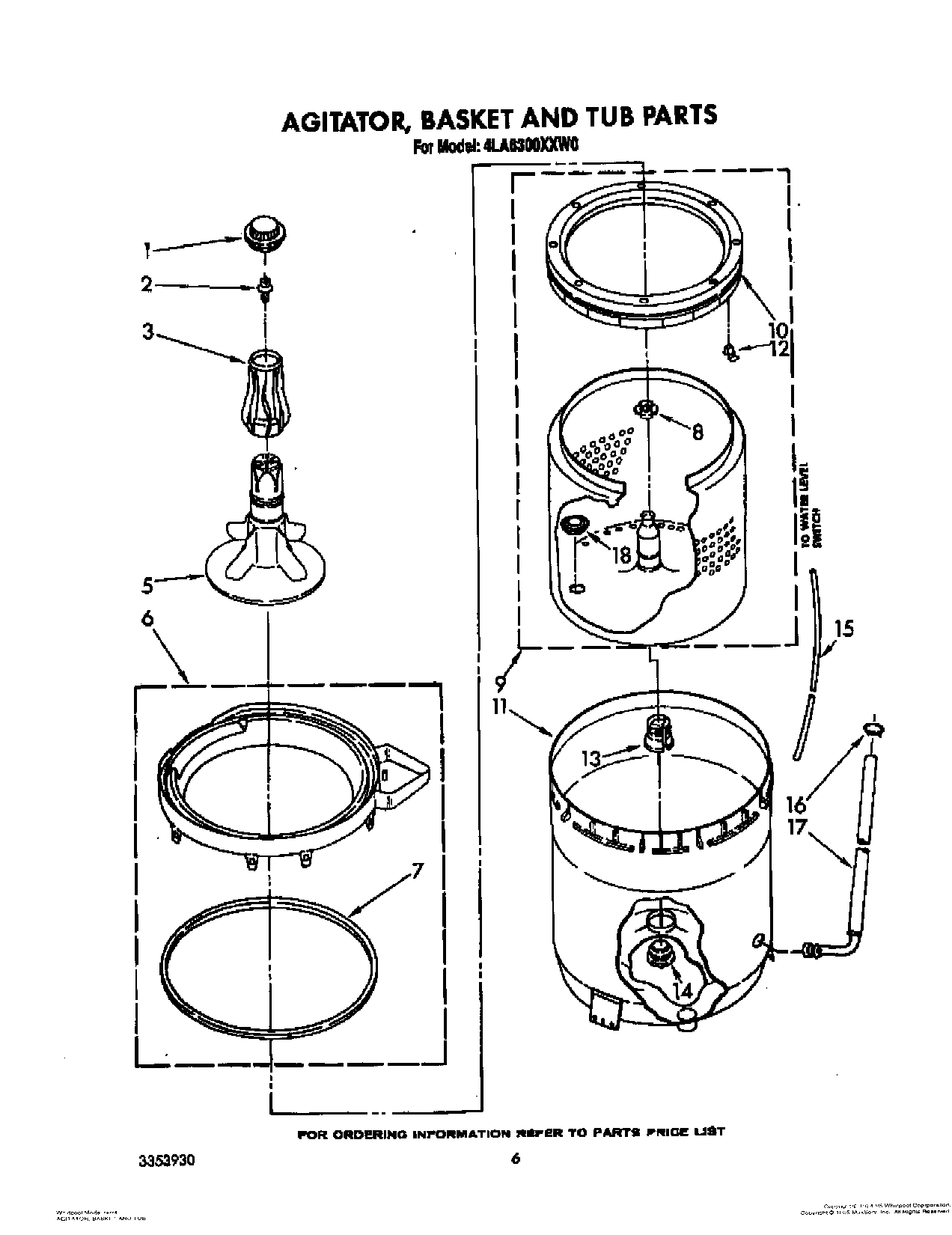

4LA6300XXN0 04 – AGITATOR, BASKET AND TUB

4LA6300XXN0 04 – AGITATOR, BASKET AND TUB

Written by

in

4LA6300XXN0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP63753 Whirlpool Filter
5387838 Whirlpool Washer Agitator with Auger Assembly
6Tub Ring & Gasket
7WP3359586 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9Basket & Balance Ring
11Tub
12WP8519815 Whirlpool Washer Balance Ring Clip
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
16WP596669 Whirlpool Hose Clamp
17Hose, Bleach
18Snap-In-Plugs (4)
