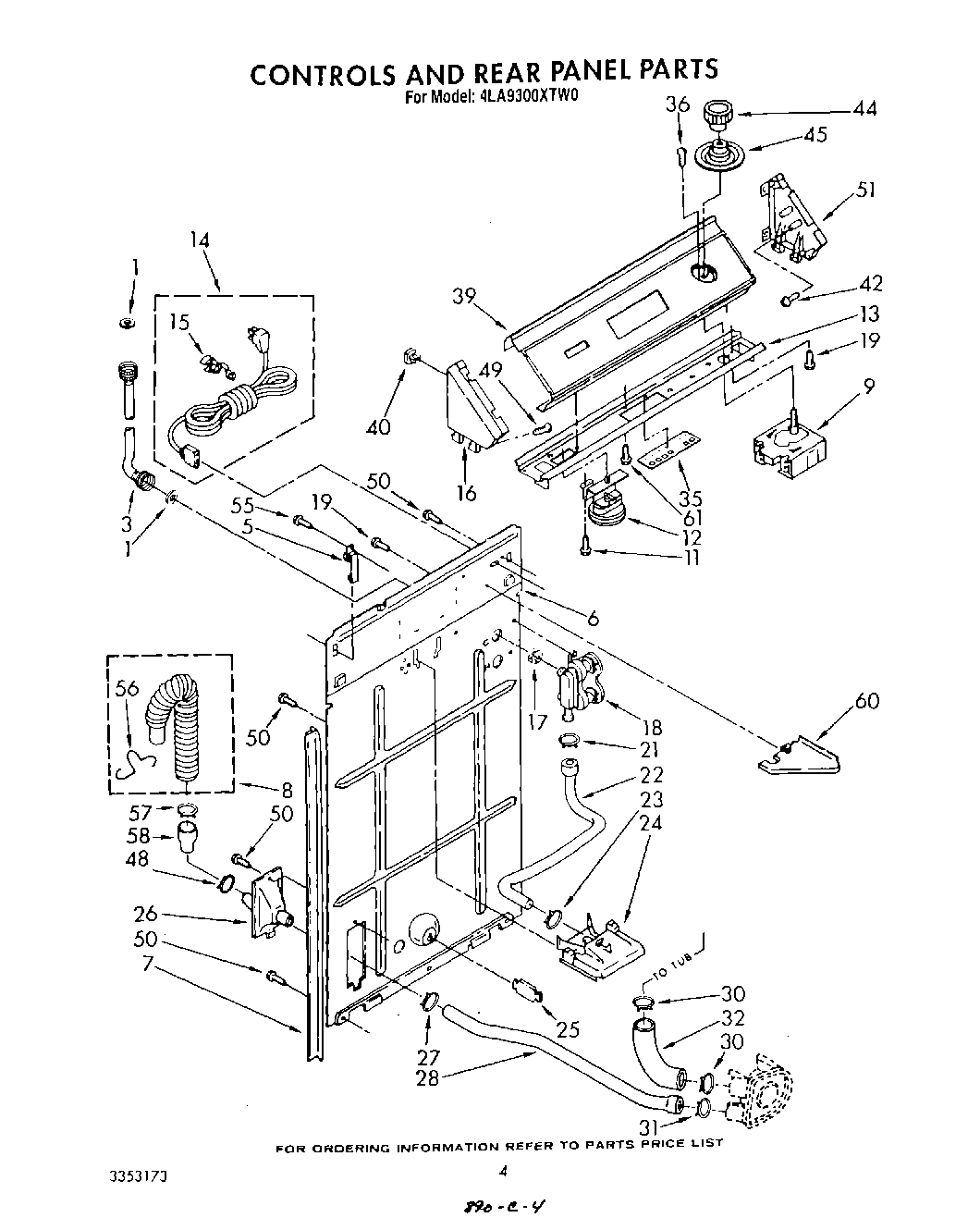

4LA9300XTW0 03 – CONTROLS AND REARadmin2025-04-26T11:37:51+00:004LA9300XTW0 03 – CONTROLS AND REAR
Products
| Position | Product |
|---|
| 1 | WP16123 Whirlpool Washer |
| 3 | WP89503 Whirlpool Washer Fill Hose |
| 5 | Hinge, Console (2) |
| 6 | Panel, Rear |
| 7 | WP62747 Whirlpool Pad |
| 8 | 285666 Whirlpool Drain Hose 10' |
| 8 | 285664 Whirlpool Drain Hose |
| 9 | Timer, Control 60 Hz. (Motor Not A Service Part) |
| 11 | WP90767 Whirlpool Screw |
| 12 | Switch, Pressure |
| 13 | Bracket, Control |
| 14 | Cord, Power |
| 15 | Strain Relief, Power Cord |
| 16 | Cap, End (L.H.) |
| 17 | WP96160 Whirlpool Washer Inlet Valve Screen |
| 18 | 285874 Whirlpool Valve Assembly |
| 19 | WP3351614 Whirlpool Screw |
| 21 | WP596669 Whirlpool Hose Clamp |
| 22 | HOSE |
| 24 | WP3360977 Whirlpool Washer Tub Fill Nozzle |
| 25 | WP8519200 Whirlpool Support Assembly |
| 26 | WPW10358149 Whirlpool Hose |
| 28 | WP3348552 Whirlpool Hose |
| 30 | WP371502 Whirlpool Clamp |
| 31 | WP285655 Whirlpool Hose Clamp |
| 32 | 285871 Whirlpool Hose and Clamp |
| 35 | Switch, Clean Touch (6-Pad) |
| 36 | WP356418 Whirlpool Screw |
| 39 | Panel, Console |
| 40 | WP689559 Whirlpool Nut |
| 42 | WPL 355326 |
| 44 | WPL 3347726 |
| 45 | WPL 64140 |
| 48 | WP356138 Whirlpool Hose Clamp |
| 49 | WPL 64211 |
| 50 | WP3390631 Whirlpool Screw |
| 51 | WPL 63795 |
| 55 | WP308685 Whirlpool Microwave Screw |
| 56 | WPL 3350222 |
| 57 | WP616099 Whirlpool Clamp |
| 58 | WP384496 Whirlpool Hose Coupling |
| 60 | WPL 3348424 |
| 61 | WP273556 Whirlpool Screw |
