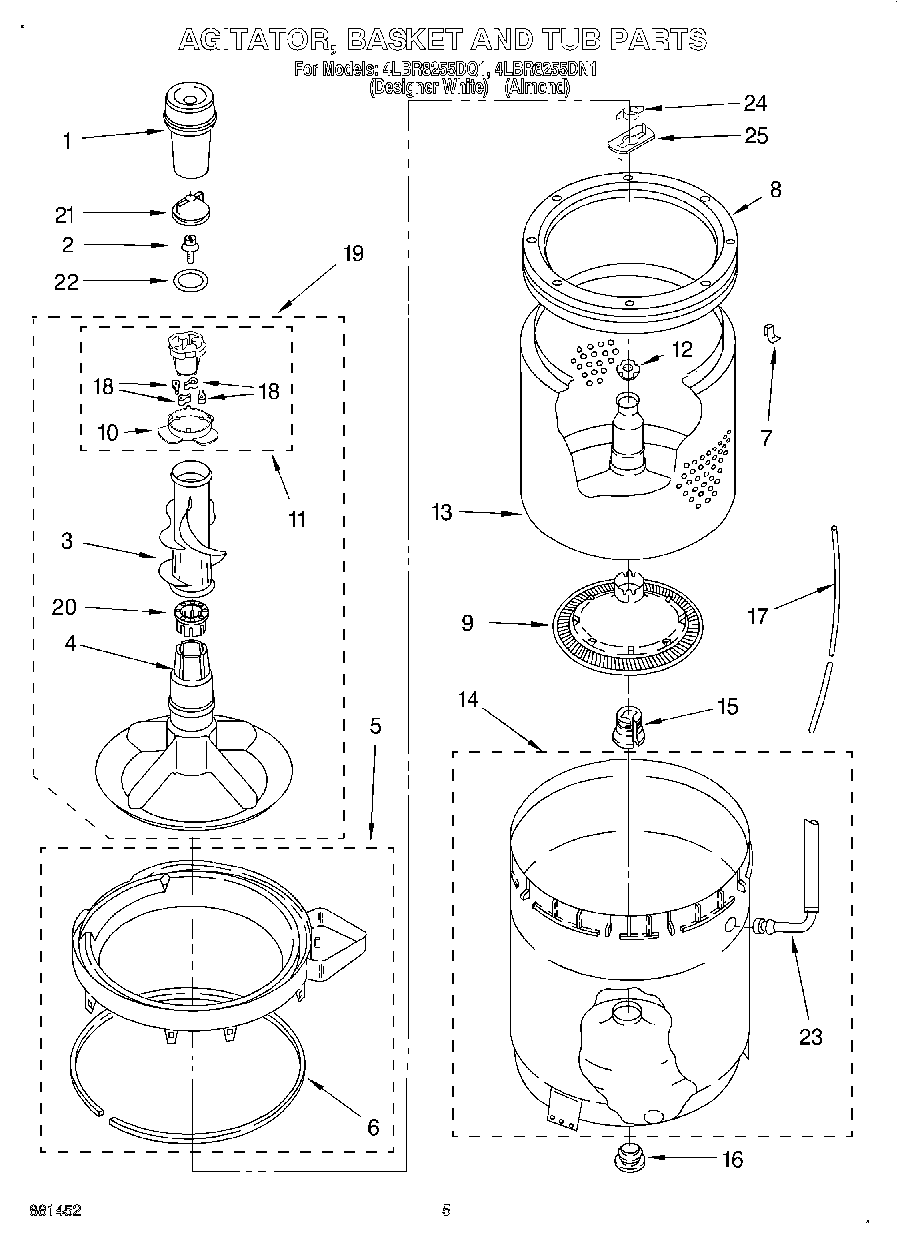

4LBR8255DQ1 03 – AGITATOR, BASKET AND TUB

4LBR8255DQ1 03 – AGITATOR, BASKET AND TUB

Written by

in

4LBR8255DQ1 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3349019 Whirlpool Upper Agitator
4WP3350830 Whirlpool Agitator Assembly
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP3956205 Whirlpool Balance Ring
8WP8519815 Whirlpool Washer Balance Ring Clip
9285868 Whirlpool Washer Filter Plug Kit
10WP3363661 Whirlpool Bearing Cam
11285811 Whirlpool Washer Agitator Repair Kit
12WP21366 Whirlpool Spanner Nut
13Basket
14Tub
15WP389140 Whirlpool Drive Block or Bell
16W10814296 Whirlpool Washer Center Post Seal Gasket
17WP353244 Whirlpool Hose
1880040 Whirlpool Washer Agitator Dog Kit
19Agitator (Complete)
20285587 Whirlpool Thrust Washer
21WPW10074580 Whirlpool Agitator Inner Cap and Seal
22WPW10072840 Whirlpool Seal Assembly
23Hose, Bleach
24WP3354845 Whirlpool Clip
25WP8543666 Whirlpool Washer
