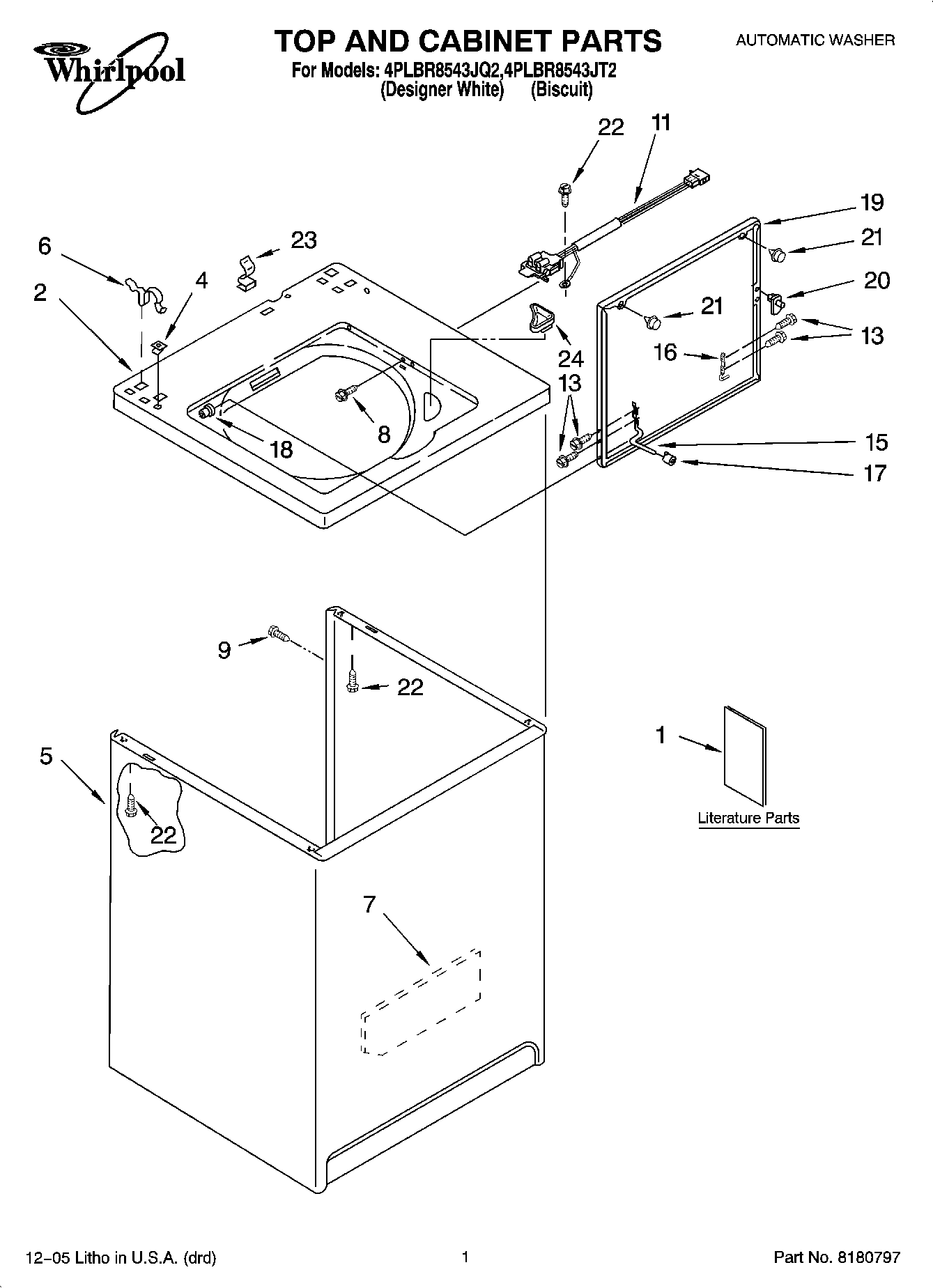

4PLBR8543JT2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Installation Instructions Use & Care Guide
1English/Korean
1Arabic
1Wiring Diagram
2Top (Biscuit)
2Top
4WP357213 Whirlpool Hinge Stopper
5Cabinet (Biscuit)
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
7Cabinet -Sound Damper
8WP3356311 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
113949247V Whirlpool Washer Lid Switch Assembly
13SCREW
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WP3957511 Whirlpool Lid
19LID
20WP358684 Whirlpool Strike Assembly
21WP9724509 Whirlpool Bumper
22WP3390631 Whirlpool Screw
23WP90016 Whirlpool Clip
24WP3362952 Whirlpool Bezel
