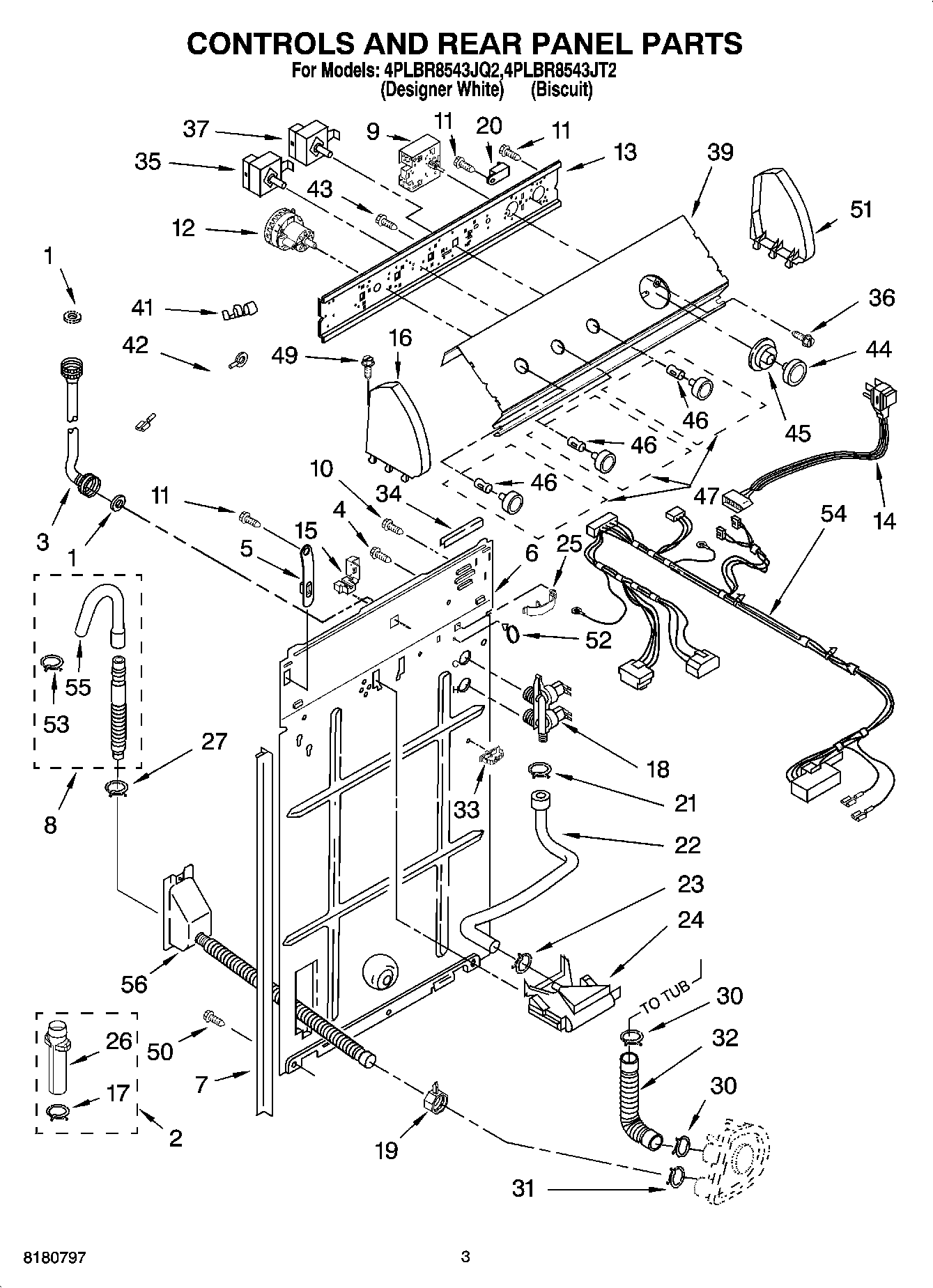

4PLBR8543JT2 02 – CONTROLS AND REAR PANEL PARTS

4PLBR8543JT2 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

4PLBR8543JT2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2Kit, Adapter (Includes Illus. Nos. 17 & 29)
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13Bracket, Control
14Cord, Power
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
18285874 Whirlpool Valve Assembly
19Clamp, Hose
203952439 Whirlpool Buzzer
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Clip, Harness
263363920A Whirlpool Adapter Assembly
27WP356138 Whirlpool Hose Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness
34Edge Protector
35Switch, Water Temperature
36WP3400818 Whirlpool Screw
37WPW10168257 Whirlpool Cycle Switch
39Panel, Console (Biscuit)
39Panel, Console (White)
41W10113937 Whirlpool Clamp
42Wire, Ground
43Screw (6)
44WP3957822 Whirlpool Knob
44W10807860 Whirlpool White Control Knob
45Dial, Timer (Biscuit)
45WP3957849 Whirlpool Timer Dial
46WP8536939 Whirlpool Spring Clip
47WP3957799 Whirlpool Knob
473957797 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
51WPL 8271362
528559320 Whirlpool Clip
53WP3357331 Whirlpool Clamp
54WPL 3954795
55WP3357027 Whirlpool Nozzle Assembly
56WPW10358149 Whirlpool Hose
56WPL ARI140740A
56Miscellaneous Parts Bag
