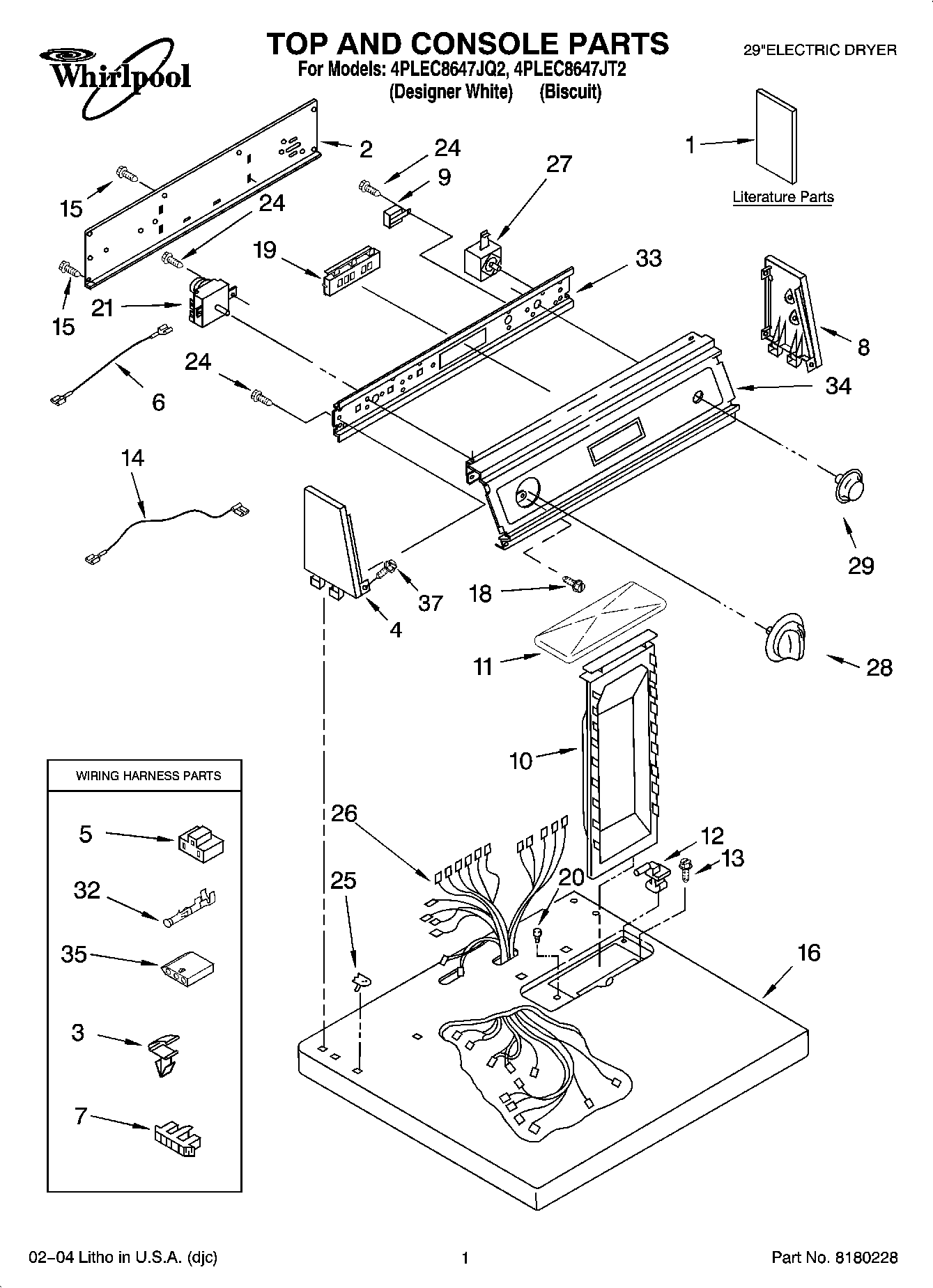

4PLEC8647JT2 01 – TOP AND CONSOLE PARTSadmin2025-04-26T11:40:04+00:004PLEC8647JT2 01 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Guide, Use & Care) |
| 1 | Literature Parts (Installation Instructions (English)) |
| 1 | Dryer |
| 1 | Literature Parts (Wiring Diagram) |
| 1 | Literature Parts (Installation Instructions (Korean)) |
| 1 | Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS |
| 2 | W10103406 Whirlpool Rear Panel |
| 3 | WP3394427 Whirlpool Clip |
| 4 | Cap, End (L.H.) (BIscuit) |
| 5 | 3401144 Whirlpool Connector |
| 6 | Wire, Jumper (Yellow) |
| 6 | Wire, Jumper (Black) |
| 7 | Connector, Timer |
| 8 | W10820038 Whirlpool Endcap |
| 8 | WPL 8271362 |
| 9 | 3952439 Whirlpool Buzzer |
| 10 | WP349639 Whirlpool Lint Filter |
| 11 | Cover, Lint Screen |
| 11 | Cover, Lint Screen (Biscuit) |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | Wire, Jumper (White) |
| 14 | Wire, Jumper (Blue) |
| 14 | Wire, Jumper (Violet) |
| 15 | WP693995 Whirlpool Screw |
| 16 | Top |
| 16 | Top (Biscuit) |
| 18 | 3400859 Whirlpool Screw |
| 19 | Switch, Clean Touch (White) |
| 19 | Switch, Clean Touch (Biscuit) |
| 20 | Bumper, Lint Lid |
| 21 | WP3406282 Whirlpool Timer |
| 24 | WPW10139210 Whirlpool Screw |
| 25 | WP357213 Whirlpool Hinge Stopper |
| 26 | Harness, Wiring |
| 27 | WPW10112633 Whirlpool Relay Parts |
| 28 | WP3957754 Whirlpool Knob Assembly |
| 28 | WP3957755 Whirlpool Knob |
| 29 | WP3957799 Whirlpool Knob |
| 29 | 3957797 Whirlpool Knob |
| 32 | WP94614 Whirlpool Terminal |
| 33 | WPL 8271426 |
| 34 | WPL 8318389 |
| 34 | WPL 8318390 |
| 35 | 3936144 Whirlpool Connector |
| 37 | WP388326 Whirlpool Screw |
