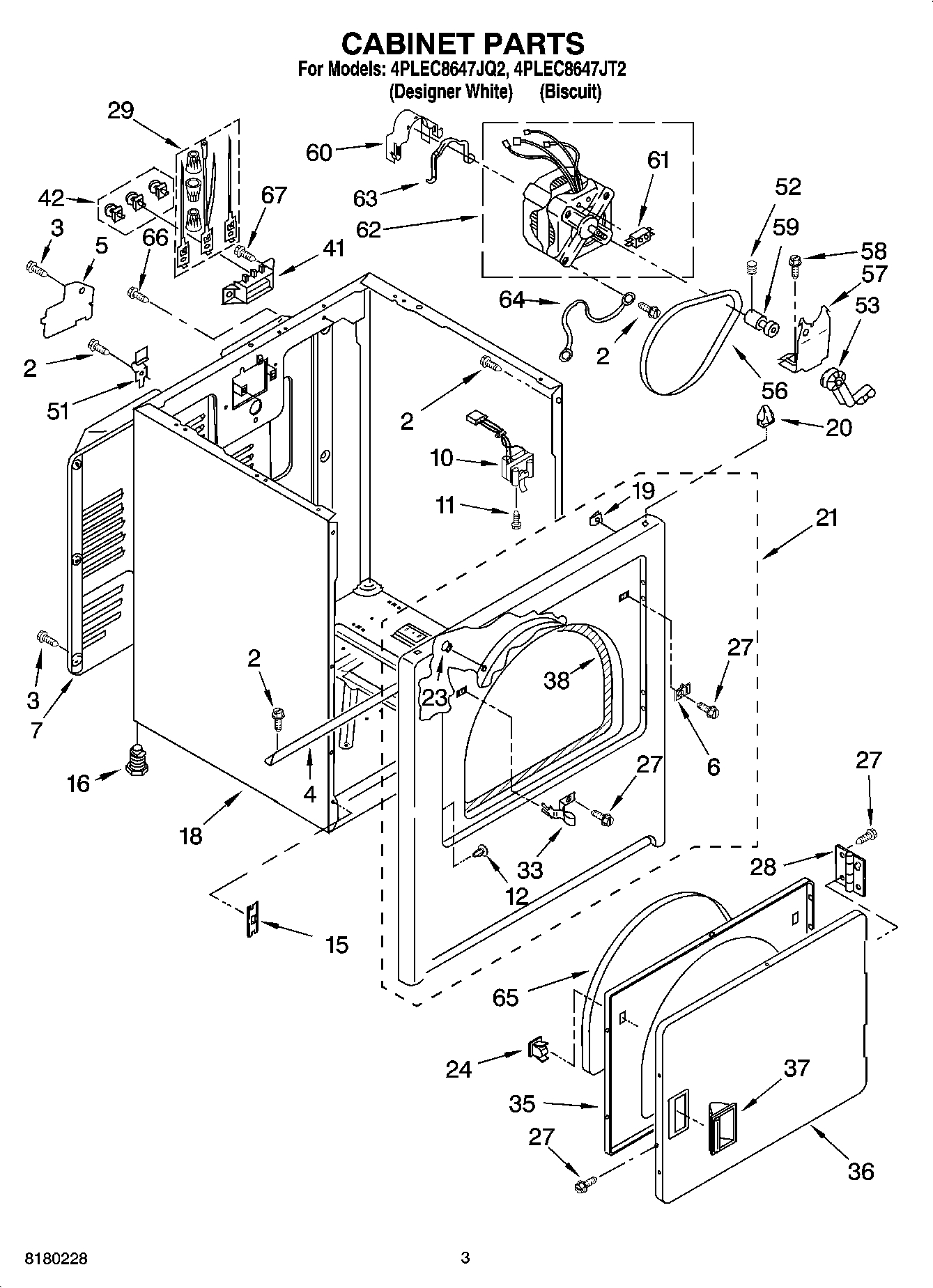

4PLEC8647JT2 02 – CABINET PARTS

4PLEC8647JT2 02 – CABINET PARTS

Written by

in

4PLEC8647JT2 02 – CABINET PARTS

Products

PositionProduct
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
6Plug, Strike Hole (Biscuit)
7280043 Whirlpool Rear Panel
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
12Plug, Hinge Hole (4) (Biscuit)
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
18Cabinet (Biscuit)
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
21Panel, Front (Biscuit)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29279318 Whirlpool Terminal
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
36Door, Front (Biscuit)
37WP3405184 Whirlpool White Door Handle
37WP3405189 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
41WP3397659 Whirlpool Terminal Block
42279393 Whirlpool Terminal Block Screw and Nut Kit
51WP8066217 Whirlpool Hinge
52SCREW, SET
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
60WP3404162 Whirlpool Clamp
61279827 Whirlpool Dryer Drive Motor
62W11618508 Whirlpool Drive Motor
63WP660658 Whirlpool Clamp
64Wire, Ground (Motor)
65SEAL-DOOR DRYER
66W10850756 Whirlpool Screw
674392901 Whirlpool Biscuit Spray Paint
67350938 Whirlpool Spray Gun
67WP308685 Whirlpool Microwave Screw
673406839 Whirlpool Drying Rack
6772017 Whirlpool Appliance Touch-Up Paint White
67799344 Whirlpool Refrigerator Paint
67350930 Whirlpool White Spray Paint
674392065 Whirlpool Dryer Maintenance Kit
67PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
674392899 Whirlpool Biscuit Touch-Up Paint
67WPL ARI14568A9
