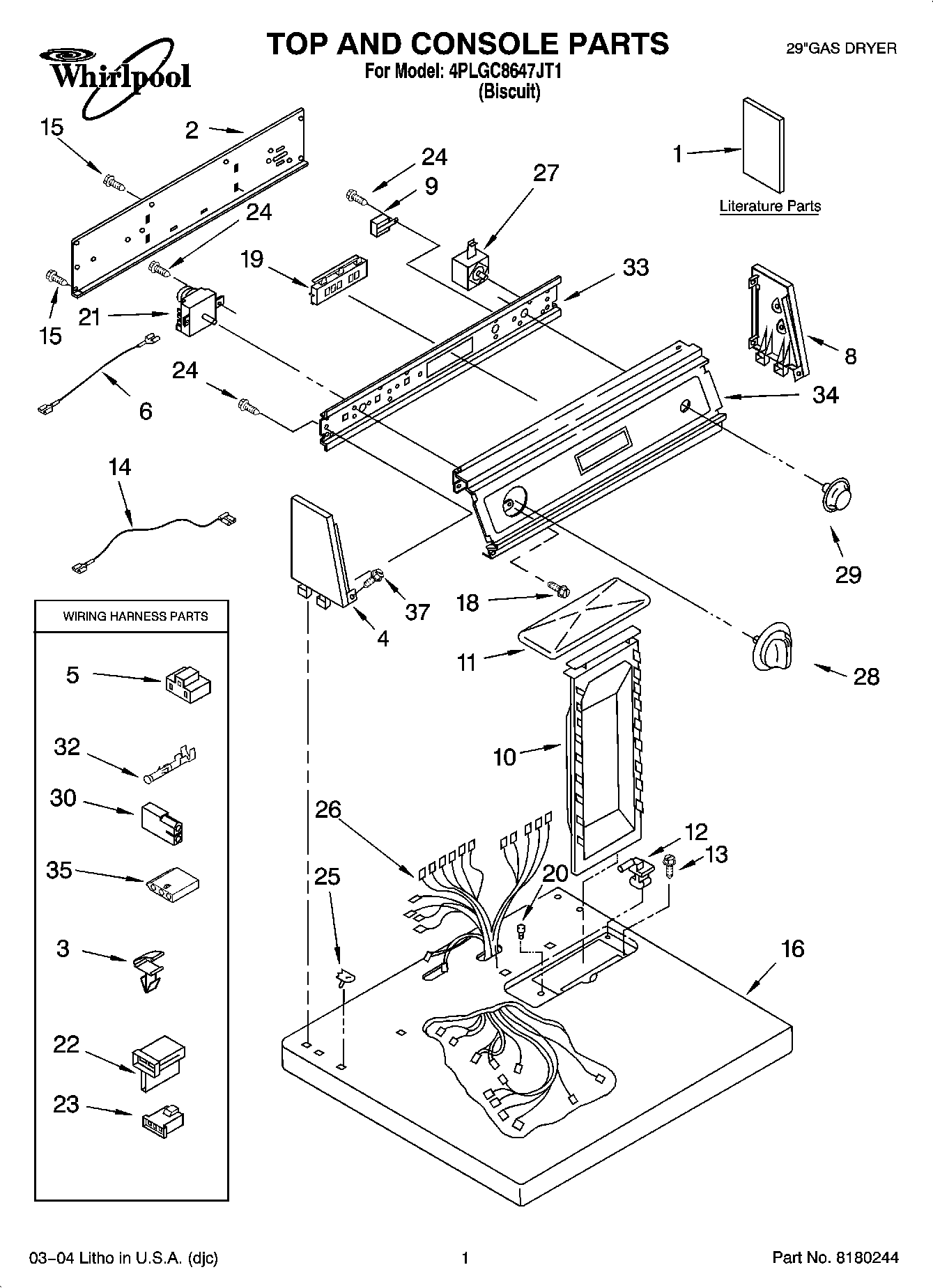

4PLGC8647JT1 01 – TOP AND CONSOLE PARTS

4PLGC8647JT1 01 – TOP AND CONSOLE PARTS

Written by

in

4PLGC8647JT1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions (Korean))
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Dryer
1Literature Parts (Guide, Use & Care)
1Instructions, Installation
2W10103406 Whirlpool Rear Panel
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
53401144 Whirlpool Connector
6Wire, Jumper (Yellow)
6Wire, Jumper (Black)
8WPL 8271362
93952439 Whirlpool Buzzer
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Blue)
14Wire, Jumper (White)
14Wire, Jumper (Violet)
15WP693995 Whirlpool Screw
16Top (Biscuit)
183400859 Whirlpool Screw
19Switch, Clean Touch (Biscuit)
20Bumper, Lint Lid
21WP3406282 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24WPW10139210 Whirlpool Screw
25WP357213 Whirlpool Hinge Stopper
26Harness, Wiring
27WPW10112633 Whirlpool Relay Parts
28WP3957755 Whirlpool Knob
293957797 Whirlpool Knob
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
32WP94614 Whirlpool Terminal
33WPL 8271426
34WPL 8318390
353936144 Whirlpool Connector
37W11224254 Whirlpool Test Kit
37350938 Whirlpool Spray Gun
374392065 Whirlpool Dryer Maintenance Kit
373406839 Whirlpool Drying Rack
37WP388326 Whirlpool Screw
37PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
374392901 Whirlpool Biscuit Spray Paint
374392899 Whirlpool Biscuit Touch-Up Paint
37WPL ARI140754A
