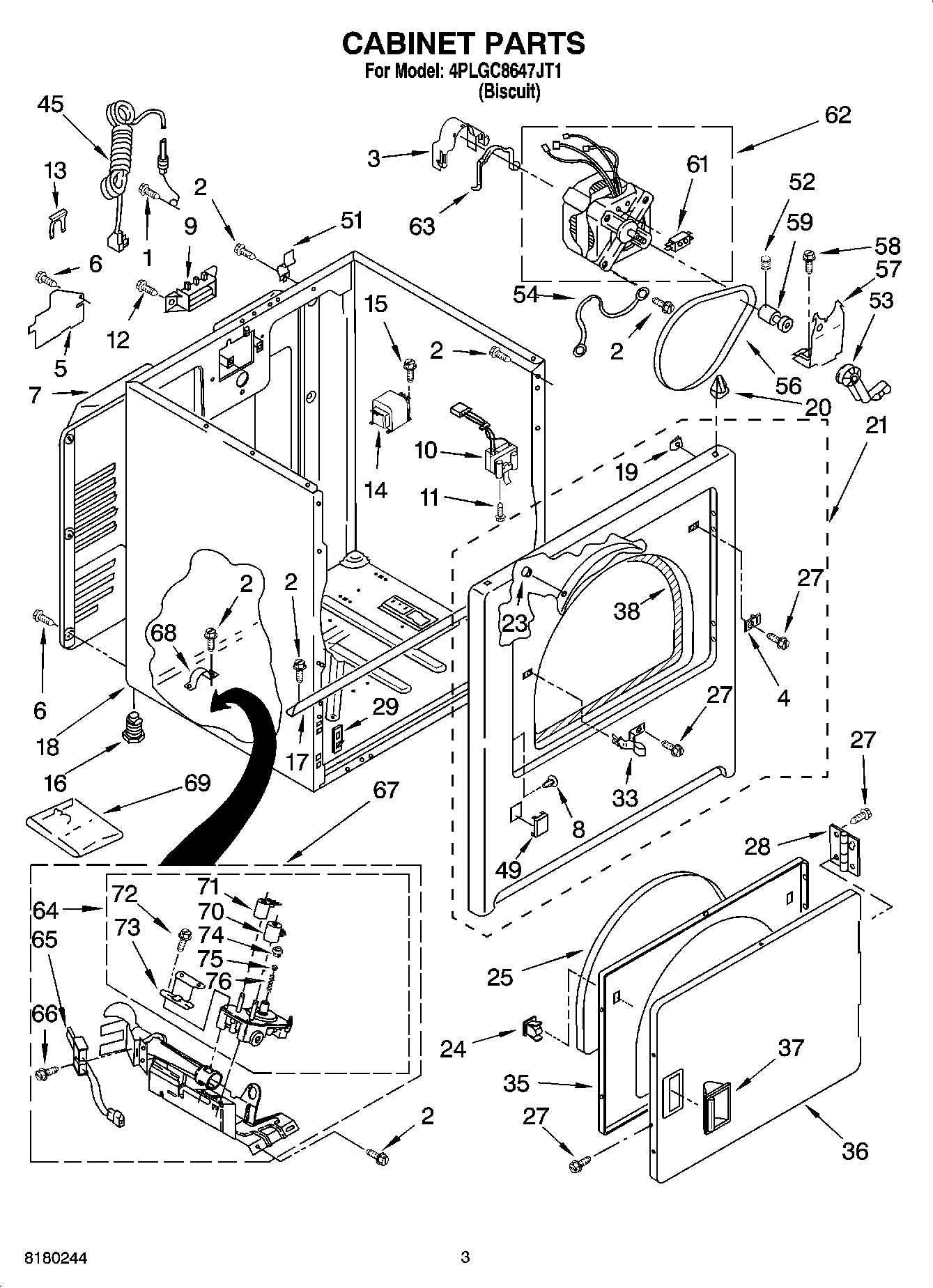

4PLGC8647JT1 02 – CABINET PARTS

4PLGC8647JT1 02 – CABINET PARTS

Written by

in

4PLGC8647JT1 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP3404162 Whirlpool Clamp
4Plug, Strike Hole (Biscuit)
5W11539855 Whirlpool Refrigerator Pump
6WP693995 Whirlpool Screw
7280043 Whirlpool Rear Panel
8Plug, Hinge Hole (4) (Biscuit)
9WP3397659 Whirlpool Terminal Block
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP308685 Whirlpool Microwave Screw
13W11712577 Whirlpool Clip
14W10851673 Whirlpool Transformer
15Screw, No. 10
1649621 Whirlpool Leveling Feet
17Bracket, Cabinet
18Cabinet (Biscuit)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel Front (Biscuit)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25SEAL-DOOR DRYER
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36Door, Front (Biscuit)
37WP3405189 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
45Cord, Power
49Plug, Front Panel (Biscuit)
51WP8066217 Whirlpool Hinge
52SCREW, SET
53WP691366 Whirlpool Dryer Idler Pulley Assembly
54Wire, Ground (Motor)
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
61279827 Whirlpool Dryer Drive Motor
62W11618508 Whirlpool Drive Motor
63WP660658 Whirlpool Clamp
64279923 Whirlpool Gas Valve
65279311 Whirlpool Dryer Flat Igniter with Bracket
66WPW10366705 Whirlpool Screw
67WPL 3402844
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
70279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
72694421 Whirlpool Screw Assembly
73694538 Whirlpool Bracket
74WP694424 Whirlpool Limiter
75WP694423 Whirlpool Regulator
76WP694422 Whirlpool Spring
