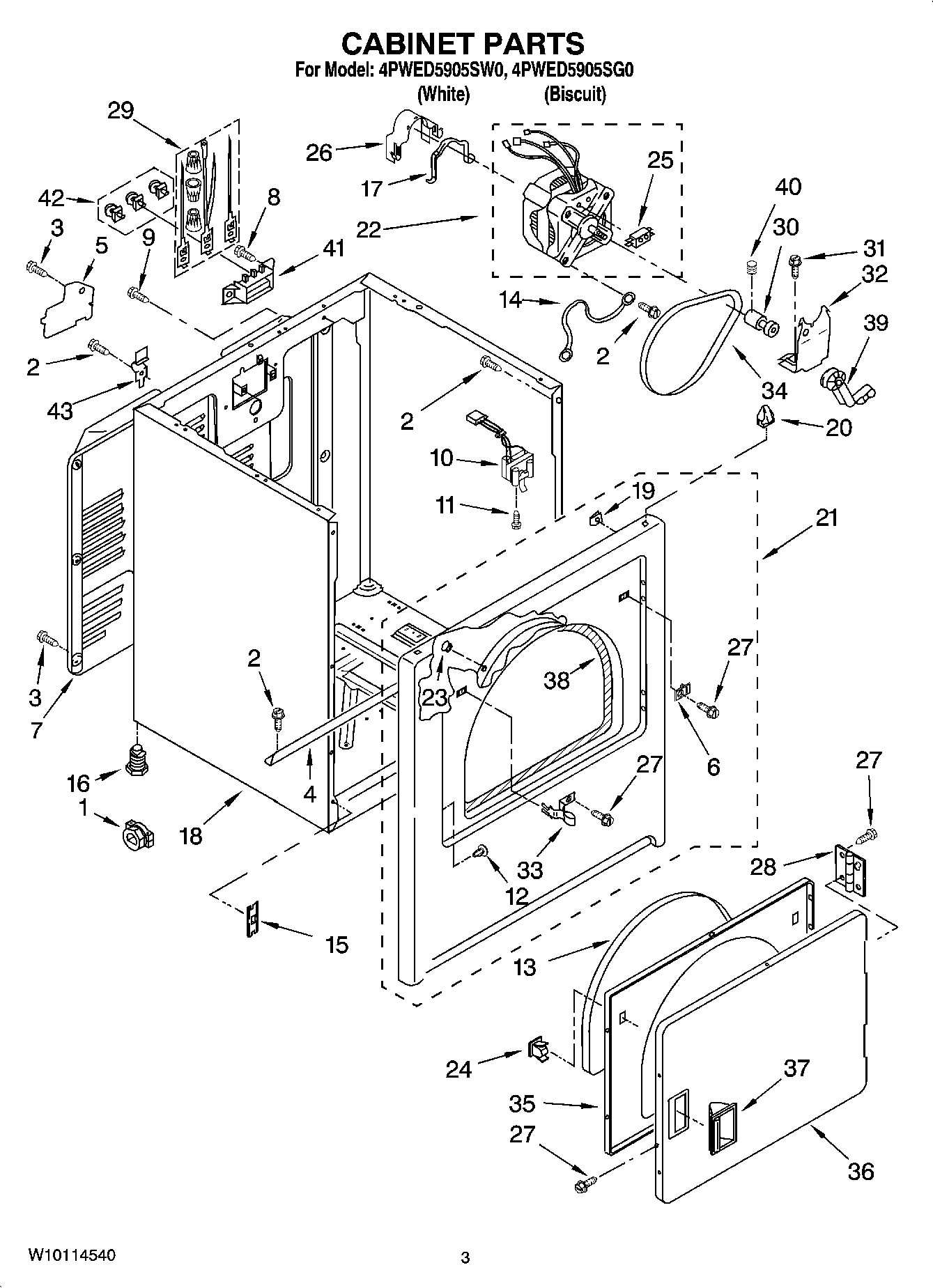

4PWED5905SW0 02 – CABINET PARTS

Products

Position	Product
1	W11704629 Whirlpool Clamp
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP3403630 Whirlpool Plug
6	Plug, Strike Hole (Biscuit)
7	280043 Whirlpool Rear Panel
8	WP308685 Whirlpool Microwave Screw
9	W10850756 Whirlpool Screw
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	Plug, Hinge Hole (4) (Biscuit)
12	WP3404413 Whirlpool Plug
13	SEAL-DOOR DRYER
14	Wire, Ground (Motor)
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	CLAMP
18	8533643 Whirlpool Dryer White Cabinet
18	Cabinet (Biscuit)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front
21	Panel, Front (Biscuit)
22	W11618508 Whirlpool Drive Motor
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	279827 Whirlpool Dryer Drive Motor
26	WP3404162 Whirlpool Clamp
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	279318 Whirlpool Terminal
30	W11233559 Whirlpool Motor Pulley
31	3400500 Whirlpool Screw
32	WP348780 Whirlpool Base
33	W11429589 Whirlpool Strike
34	341241 Whirlpool Dryer Drum Belt
35	WP3402341 Whirlpool Door
36	Door, Front (Biscuit)
36	W10861227 Whirlpool Door Assembly
37	WP3405184 Whirlpool White Door Handle
37	WP3405189 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
39	WP691366 Whirlpool Dryer Idler Pulley Assembly
40	SCREW, SET
41	WP3397659 Whirlpool Terminal Block
42	279393 Whirlpool Terminal Block Screw and Nut Kit
43	WP8066217 Whirlpool Hinge
