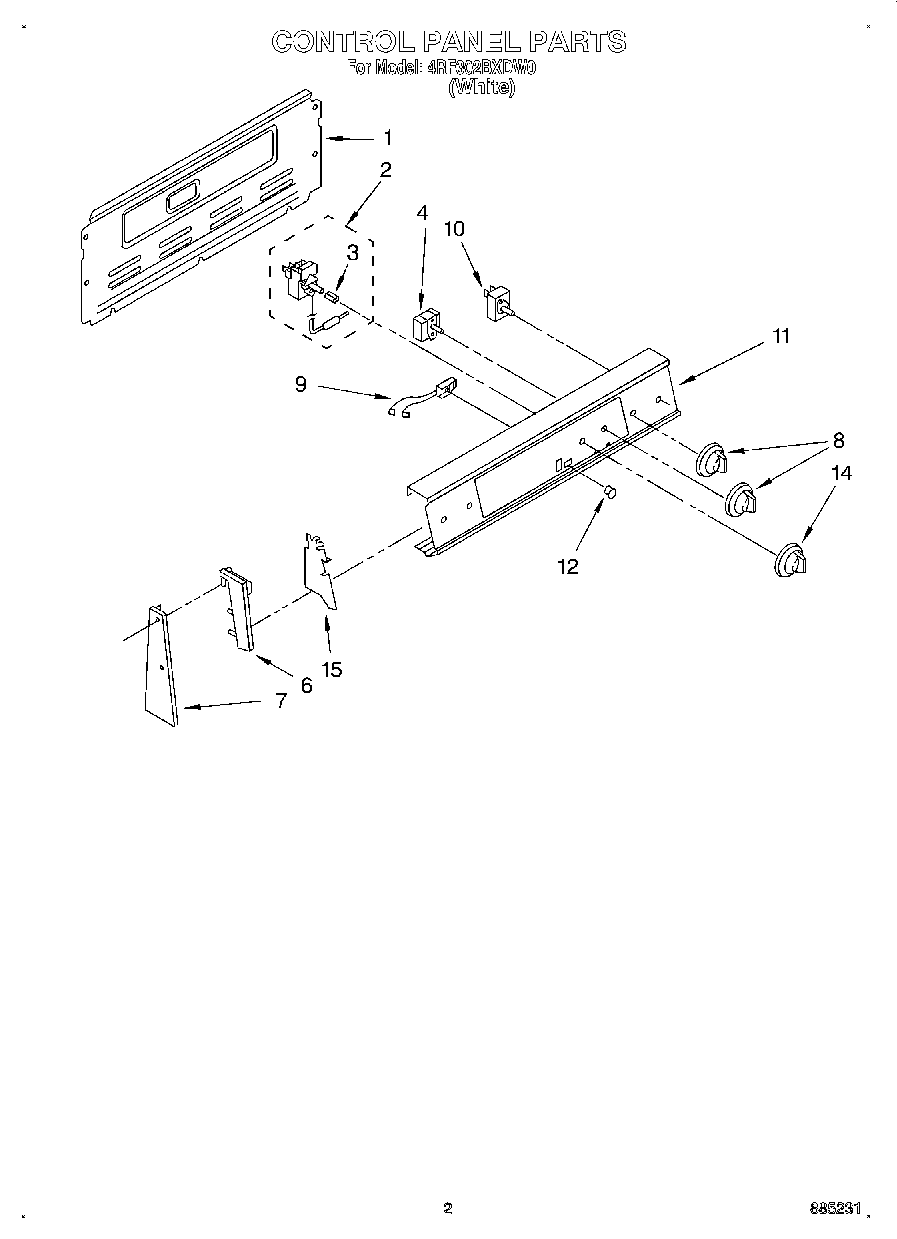

4RF302BXDW0 02 – CONTROL PANEL

Products

Position	Product
1	Rear Cover Contr
2	Thermostat, 0ven
2	WP313808 Whirlpool Screw
3	WPL 3169525
4	WP3188987 Whirlpool Oven Switch
6	Screw,
6	End Cap, R.H. (Black)
6	End Cap L.H. (Black)
7	End Trim (LH, Black)
7	WP3390631 Whirlpool Screw
7	SCREW
7	End Trim R.H. (Black)
8	WP3196231 Whirlpool Knob
9	Indicator Light (Surface Unit On)
9	Light, Indicator (250V)
10	Screw, 8-32 x 3/16 (2)
10	SWITCH-INF
10	WP3149404 Whirlpool Oven Surface Element Switch
11	Panel, Control (Black)
11	Washer
12	Lens, Amber
14	Knob, Thermostat (Black)
15	WP965173 Whirlpool Dishwasher Screw
15	Shield (2)
