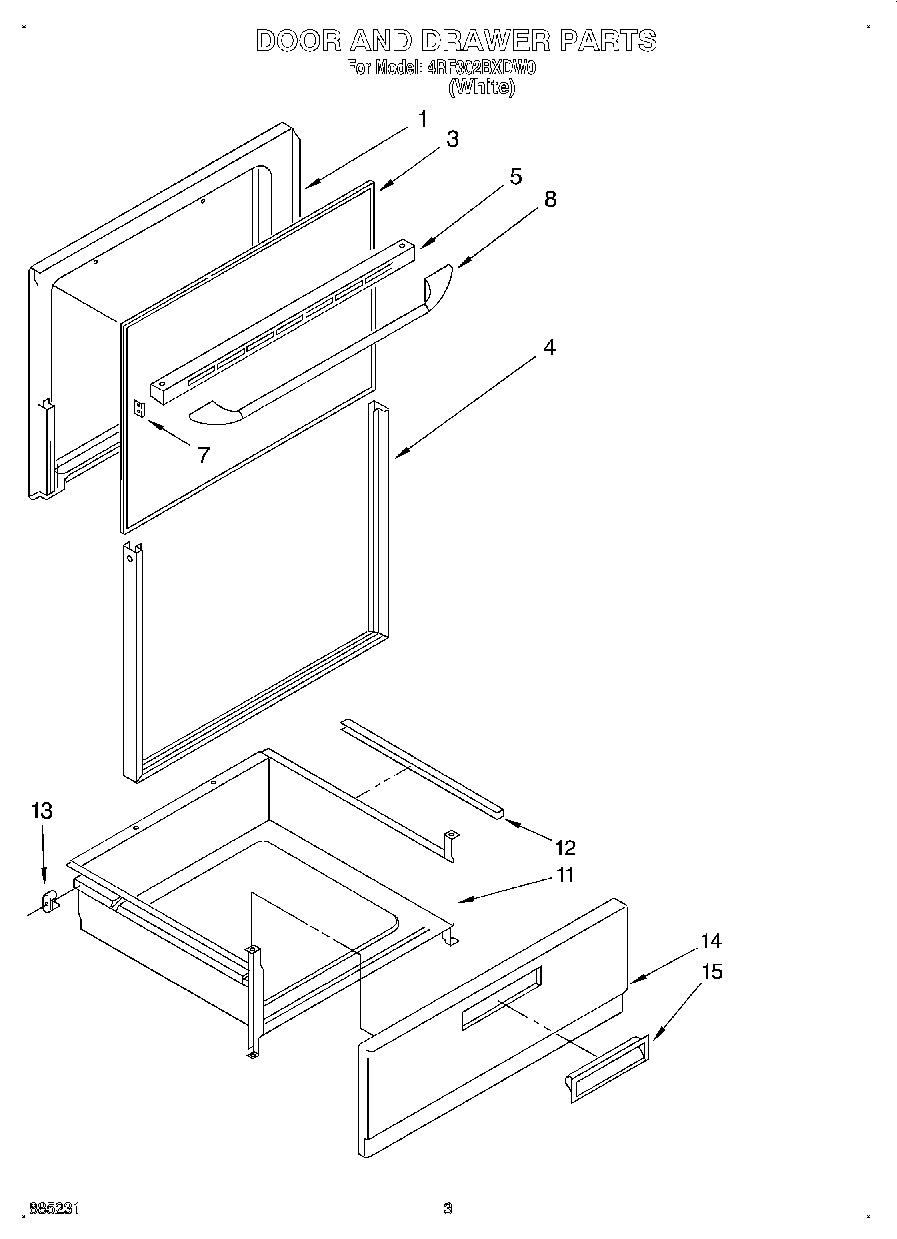

4RF302BXDW0 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
1	Screw, 10A x 1/2 (2) (Black)
3	Panel, Door (Black Glass)
4	Frame, Door (Black)
4	Back Splash (Screw (4) 10AB x 1/2“)
4	Handle, Door (Screw (4))
5	Top, Door Frame (Black)
7	Clip, Mtg (2)
8	WP999367 Whirlpool Refrigerator Screw
8	Handle, Door (Black)
11	Drawer, Utility
12	Protector, Drawer (2)
13	Glide, Rear (2)
13	WP308685 Whirlpool Microwave Screw
14	Panel, Drawer (White)
14	WP488627 Whirlpool Refrigerator Screw
15	Handle, Snap-In (White)
