4RF302BXDW0 04 – OVEN

4RF302BXDW0 04 – OVEN

Written by

in

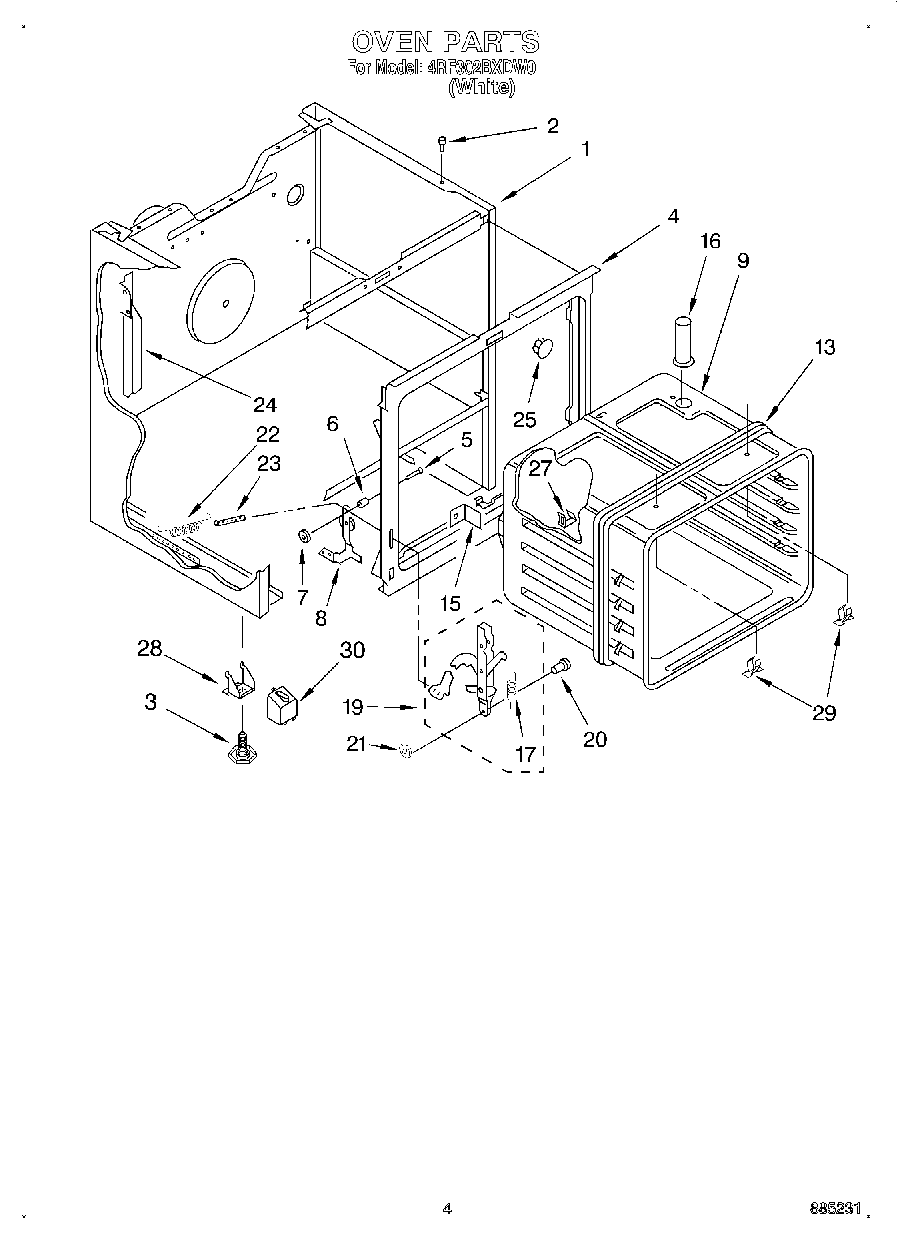

4RF302BXDW0 04 – OVEN

Products

PositionProduct
1Main Chassis (White)
2238614 Whirlpool Bumper Hinge
3Leg Leveling (4)
4Screw (Top)
4Frame, Front
5Pin, Hinge Ear (2)
6Snubber, Door (2)
7Pushnut (2)
8Hinge, R.H.
8Hinge, L.H.
9Oven (30“ Conv.)
13Heat Seal
15Bracket, Oven (Mounting)
16Screw, 10A x 1/2 (2) (Black)
169755804 Whirlpool Oven Vent Tube
17Spring, Door Stop
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22Spring, Oven Door (2)
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover
24Wire Cover-Controls (Right)
25Plug Button
2798005642 Whirlpool Clip
28Support, Foot (2)
28SCREW
29WPL 3169107
30Cover, Foot (2)
