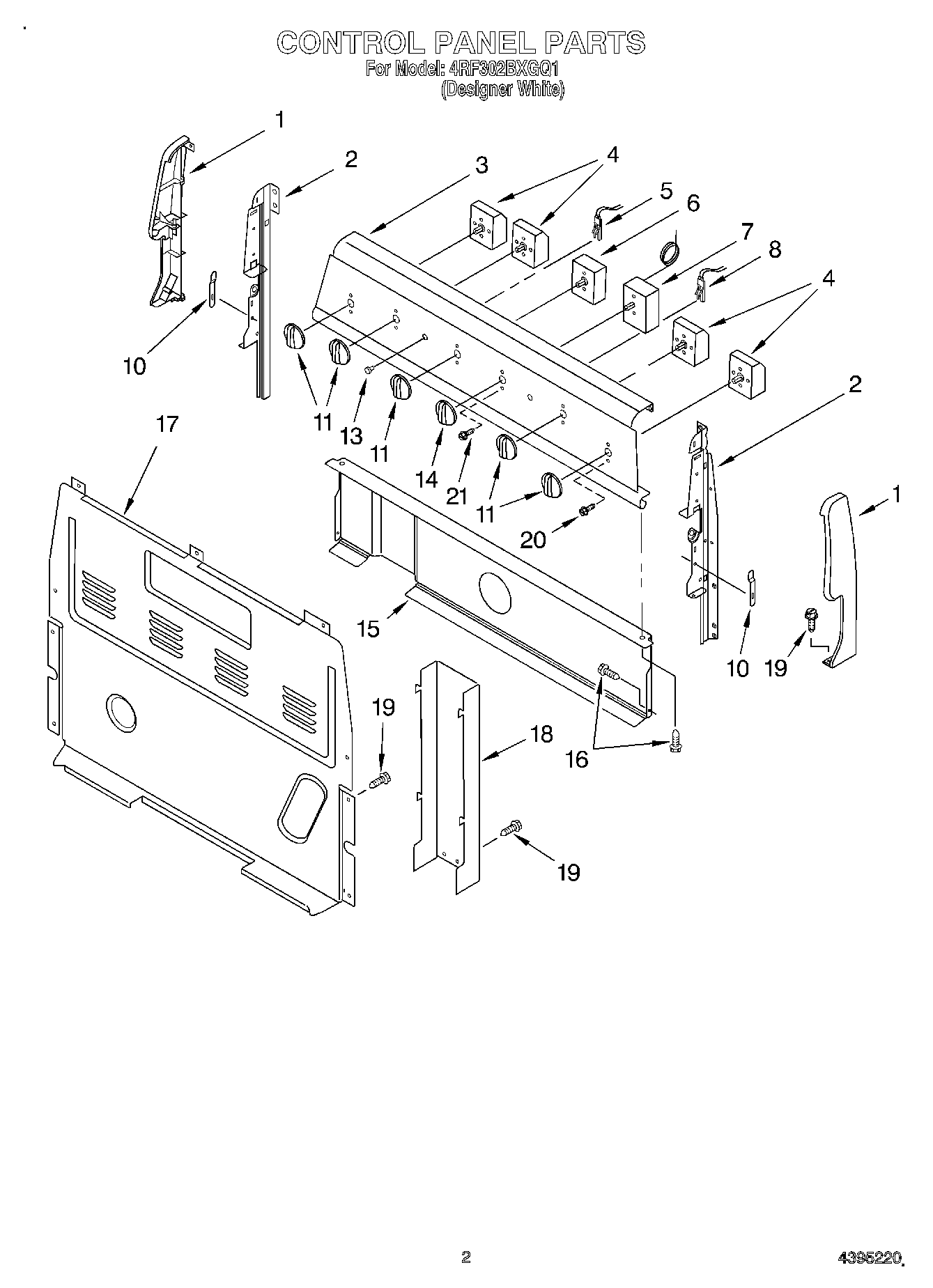

4RF302BXGQ1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5Indicator, Surface
6WP3188987 Whirlpool Oven Switch
7WP3196803 Whirlpool Oven Thermostat
8Light, Indicator (250V)
103196200 Whirlpool Clip
11WP3196232 Whirlpool Knob
13WP3196068 Whirlpool Light Lens
14Knob, Thermostat
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
18WPW10326122 Whirlpool Black Cover
19SCREW
20WP3400882 Whirlpool Screw
21WP3196170 Whirlpool Screw
