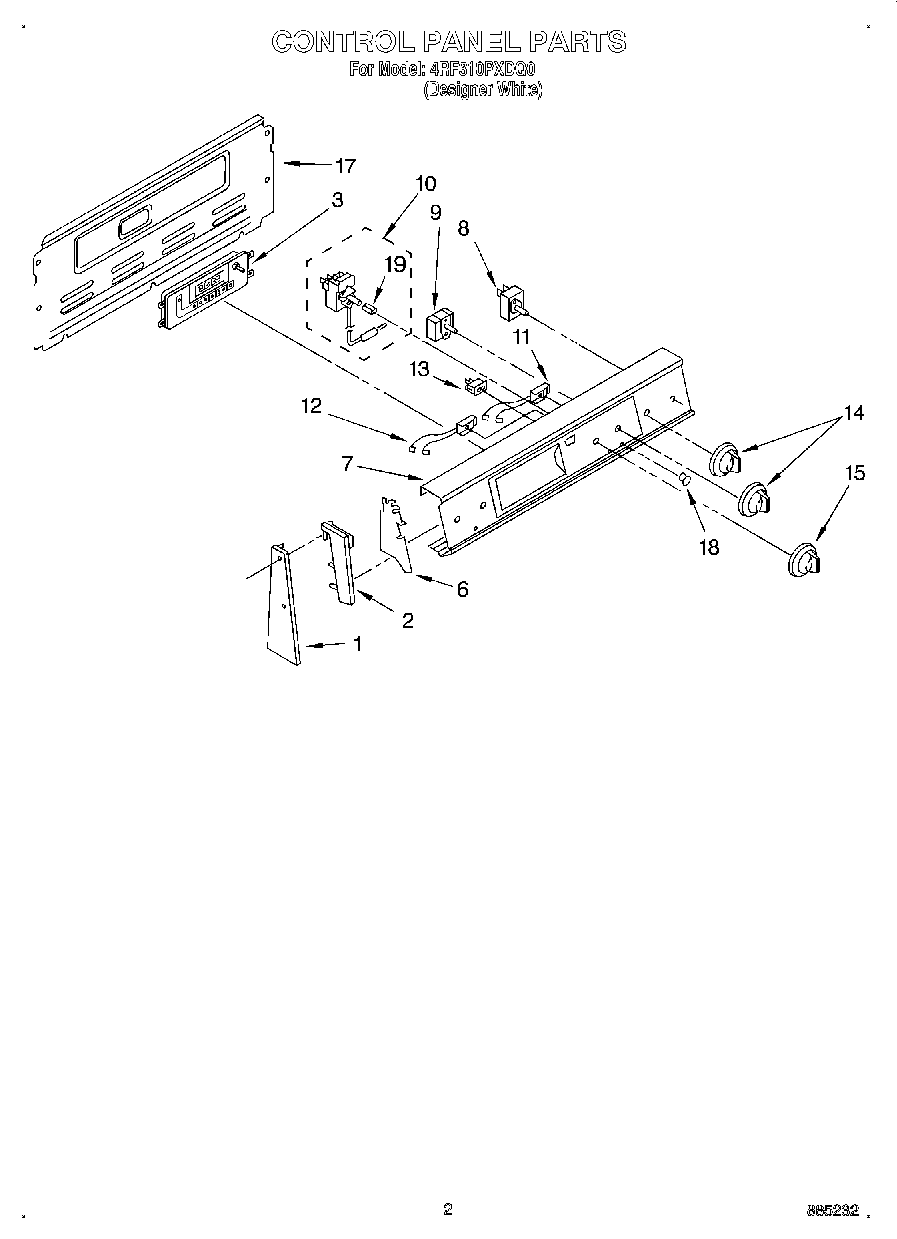

4RF310PXDQ0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (LH, Designer White)
1	End Trim R.H. (Designer White)
2	End Cap L.H. (Designer White)
2	End Cap R.H. (Designer White)
3	Timer, Clock (Designer White)
6	Shield (2)
6	WP965173 Whirlpool Dishwasher Screw
7	Panel, Control (Designer White)
8	SWITCH-INF
8	WP3149404 Whirlpool Oven Surface Element Switch
9	WP3188987 Whirlpool Oven Switch
9	Screw, 8-32 x 3/16 (2)
10	WP313808 Whirlpool Screw
10	Thermostat, 0ven
11	Light, Indicator (250V)
12	Indicator Light (Surface Unit On)
13	Switch, Rocker (White)
14	WP3196232 Whirlpool Knob
15	Knob, Thermostat (Designer White)
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	WPL 3169525
