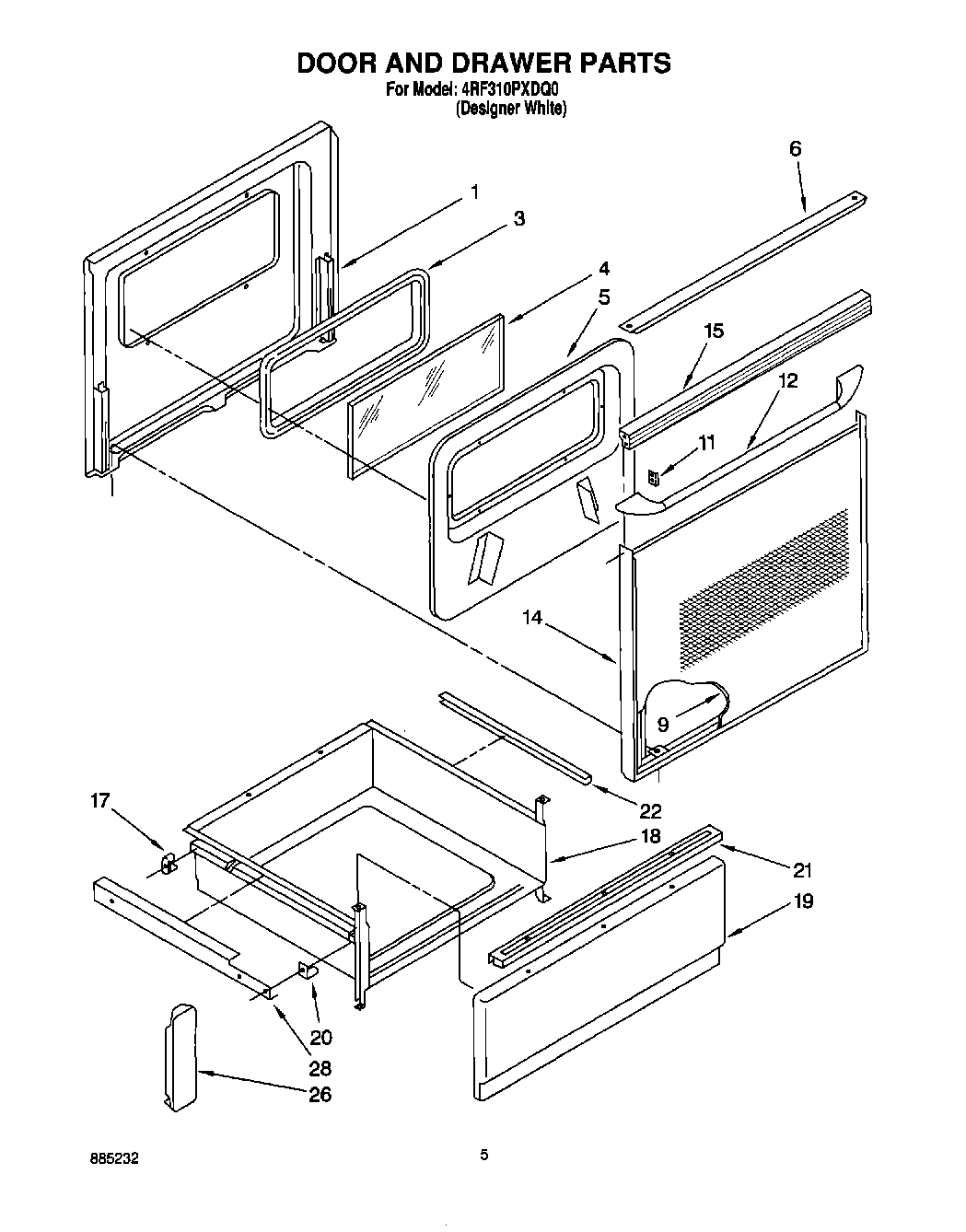

4RF310PXDQ0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Seal, Door
4	Glass, Clear
5	Screw
5	Retainer, Insulation
6	Cap, Top (Designer White)
9	Glass Panel, Outer (White)
11	Clip, Mtg (2)
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (White)
14	Frame, Door (White)
14	Handle, Door (Screw)
14	Screw
15	Top, Door Frame (Designer White)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel Drawer (White)
19	WP488627 Whirlpool Refrigerator Screw
20	Glide, Front (2)
21	Handle, Drawer (White)
22	Protector, Drawer (2)
26	Bracket, Mounting (2)
28	Rail L.H. (Includes Illus. 3)
28	Rail R.H. (Includes Illus. 3)
28	Screw, 10A x 1/2 (2) (Black)
