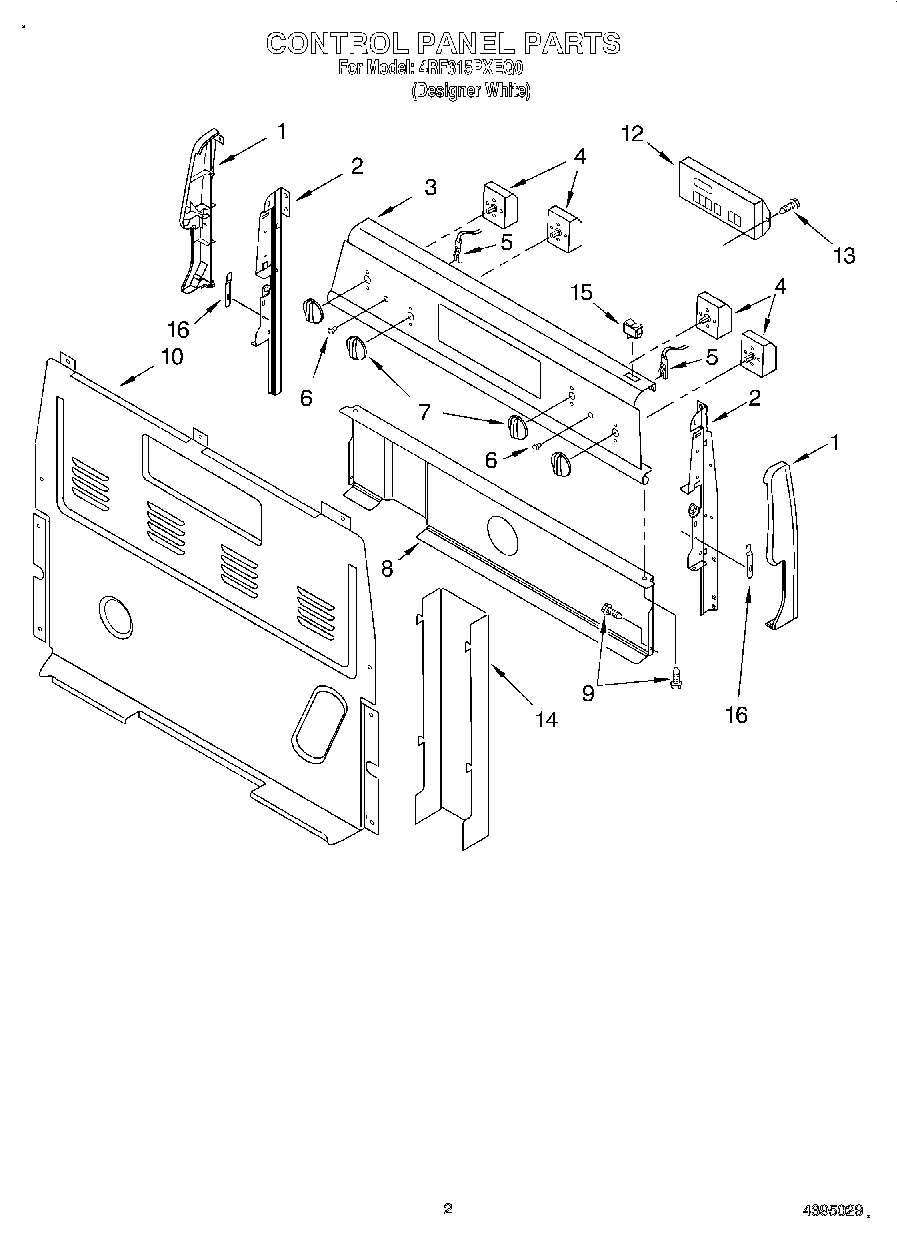

4RF315PXEQ0 02 – CONTROL PANEL

4RF315PXEQ0 02 – CONTROL PANEL

Written by

in

4RF315PXEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
4Switch, Infinite (Screw (8))
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range
14WPW10326122 Whirlpool Black Cover
14SCREW
153149360 Whirlpool Light Switch
163196200 Whirlpool Clip
