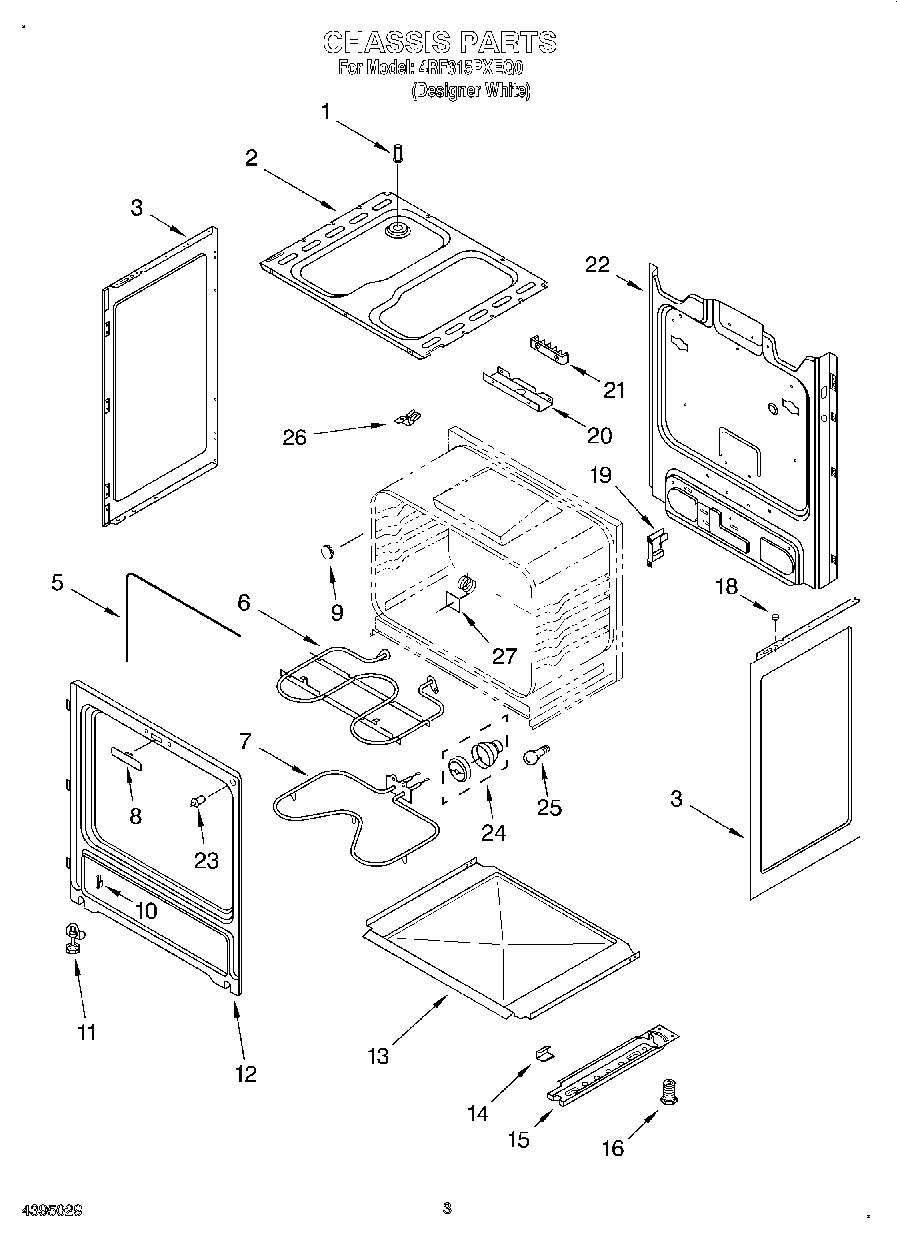

4RF315PXEQ0 03 – CHASSIS

Products

Position	Product
1	WP3196567 Whirlpool Screw
1	9755804 Whirlpool Oven Vent Tube
2	WP3400832 Whirlpool Screw
2	W11699791 Whirlpool Burner Box
3	Panel, Side (2) (White)
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WP3196174 Whirlpool Screw
7	WPW10308477 Whirlpool Bake Element
8	Plug, Frame
9	Button, Plug
10	WP3195546 Whirlpool Drawer Glide
11	Screw
11	WP3196037 Whirlpool Leveling Foot
12	WP7101P246-60 Whirlpool Screw
12	Frame, Front
12	SCREW
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
18	238614 Whirlpool Bumper Hinge
19	WP3196175 Whirlpool Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP3400016 Whirlpool Screw Assembly
21	WP8203546 Whirlpool Terminal Block
22	Back, Main
23	Switch, Door
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	W11244557 Whirlpool Screw
26	Clip, Ground Wire
26	Ground Strap
27	WP8272612 Whirlpool Insulation
27	Sensor, Heat
27	WPW10208653 Whirlpool Insulation
