4U36EH2VHA1 ROOM AIR CONDITIONER

Products

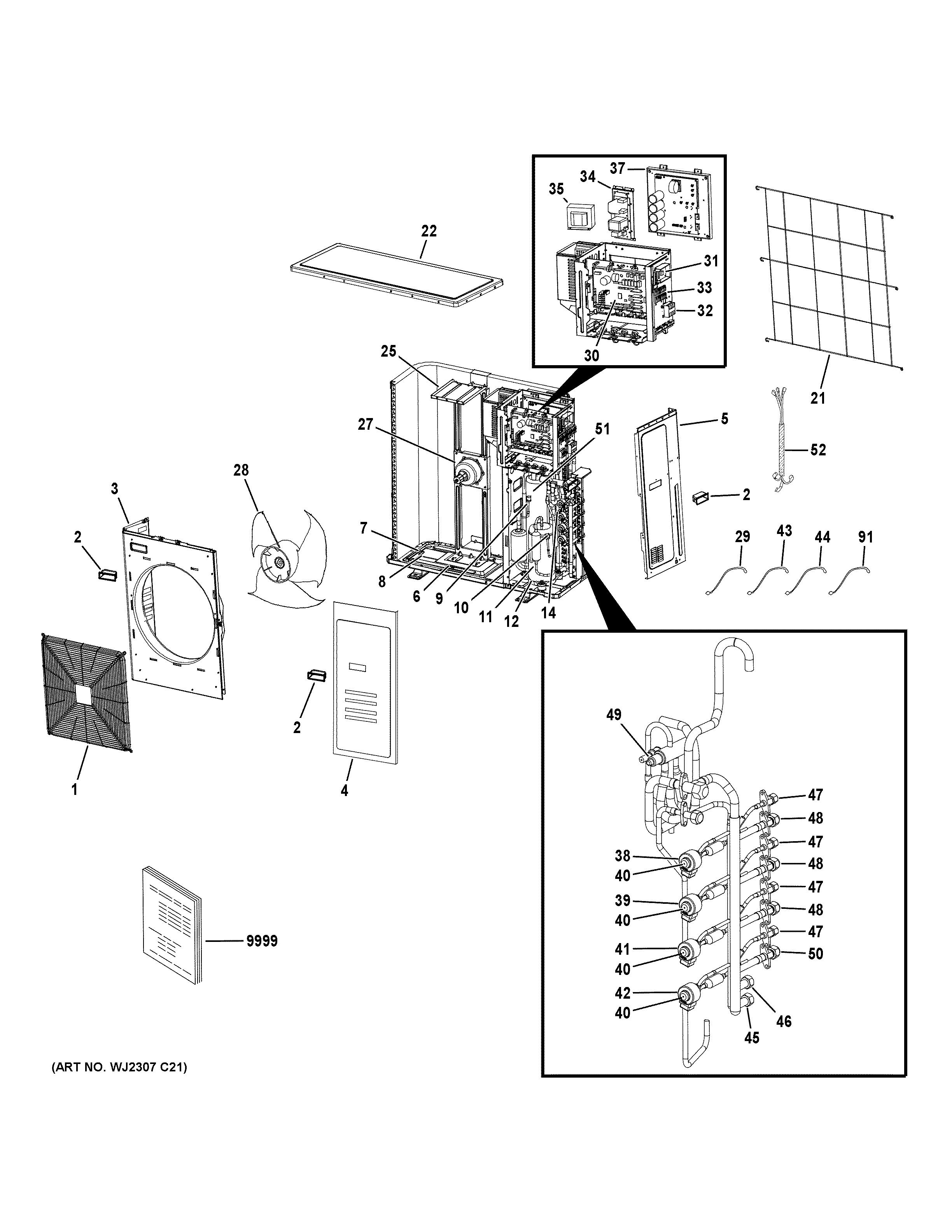

Position	Product
1	FRONT GRILLE
2	WJ65X25041 GE Handle
3	WJ71X26196 GE Front Panel
4	FRONT SERVICE PANEL
5	RIGHT SIDE PANEL
6	WJ65X25035 GE Baffle Plate
7	WJ27X26209 GE Heating Element
8	WJ65X26198 GE Baffle Late
9	WJ26X23722 GE Low Pressure Switch
10	WJ27X22646 GE High Pressure Switch
11	WJ98X26204 GE Compressor
12	WJ27X22668 GE Sump Heater
14	WJ53X23724 GE Outdoor EEV Coil Assembly
21	WJ71X26197 GE Rear Grille
22	WJ71X26207 GE Top Cover
25	WJ65X23569 GE Fan Motor Bracket
27	FAN MOTOR
28	WJ73X22642 GE Fan Blade
29	WJ26X28815 GE Liquid Pipe Sensor
30	WJ26X25053 GE Outdoor Power Control Board
31	WJ26X25054 GE Service Power Control Board
32	TERMINAL BLOCK (INDOOR)
33	WJ26X25073 GE Terminal Block Supply
34	WJ26X26200 GE Power Control Board Filter
35	WJ26X22659 GE Reactor
37	WJ26X26201 GE Inverter Driver Module
38	WJ26X25034 GE Leveling Coil
39	WJ26X24364 GE Evaporator Coil
40	WJ26X22674 GE Expansion Valve Body
41	LEV COIL C (BLLUE)
42	WJ26X26195 GE Coil D (White)
43	WJ26X28816 GE Refrigerator Defrost/Suction/Discharge Temperature
44	WJ26X28814 GE Gas Pipe Sensor
45	WJ53X25049 GE Liquid Stop Valve
46	WJ53X25050 GE Gas Stop Valve
47	WJ53X25046 GE Liquid Pipe 1/4"
48	WJ53X25047 GE Gas Pipe 3/8 Inch
49	WJ53X23567 GE 4-Way Valve
50	WJ53X26205 GE Gas Pipe 1/2 Inch
51	ACCUMULATOR
52	WJ35X29453 GE Wiring Harness Assembly
91	WJ26X26203 GE Defrost/Thermostat Sensor
9999	PM INSTALL INSTRUCTIONS
