4U36HS1ERE ROOM AIR CONDITIONER

Products

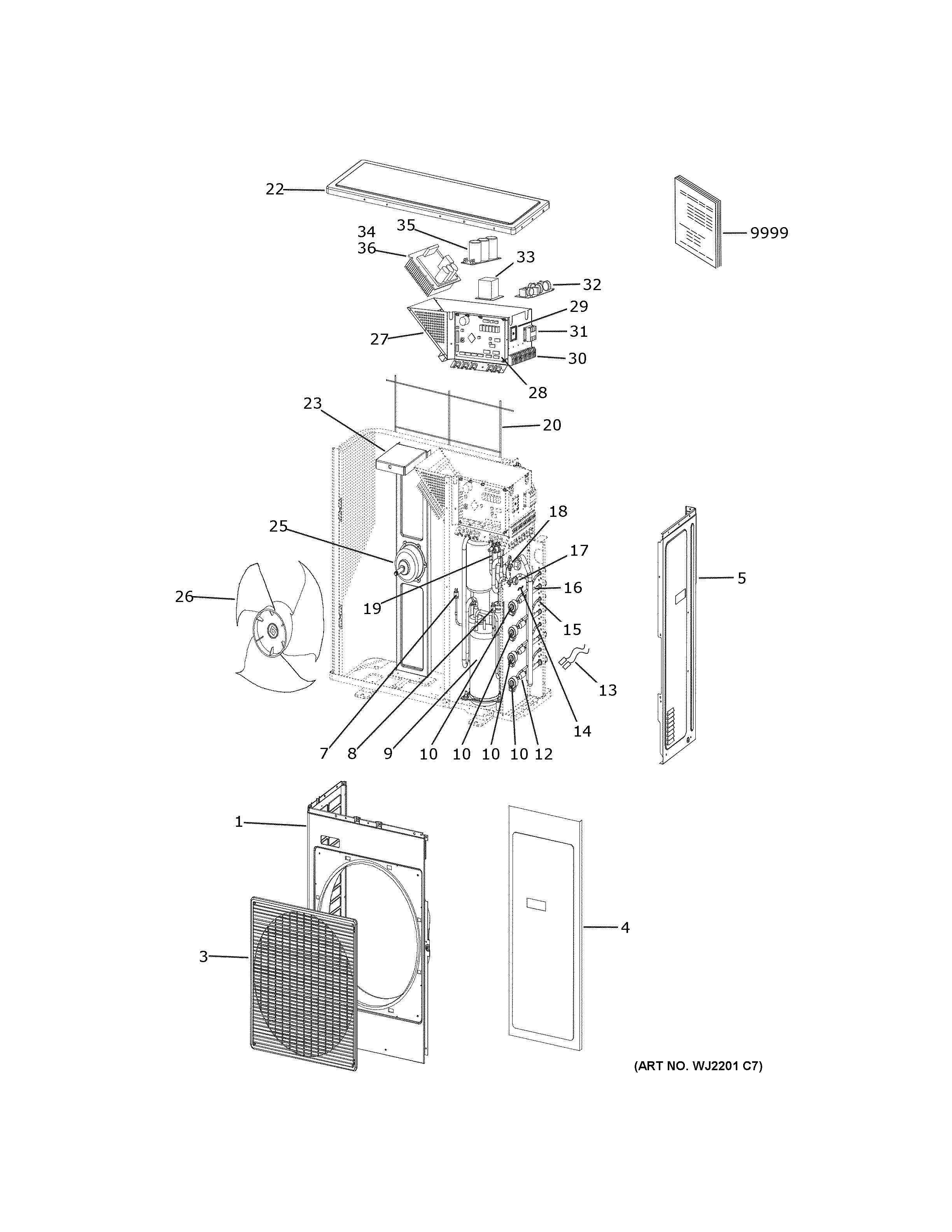

Position	Product
1	WJ71X23743 GE Casing
3	WJ71X23738 GE Outlet Grille
4	WJ76X24367 GE Front Service Panel
5	WJ71X23737 GE Right Side Panel
7	WJ26X23722 GE Low Pressure Switch
8	WJ27X22646 GE High Pressure Switch
9	WJ98X23735 GE Compressor
10	WJ26X22674 GE Expansion Valve Body
12	WJ26X24364 GE Evaporator Coil
13	WJ26X24078 GE Sensor
14	WJ53X23724 GE Outdoor EEV Coil Assembly
15	WJ26X24077 GE Liquid Pipe Sensor
16	VAPOR PIPE TEMPERATURE SENSOR
17	WJ26X24368 GE Liquid Service Valve
18	WJ26X24369 GE Vapor Service Valve
19	WJ53X23567 GE 4-Way Valve
20	REAR GRILLE
22	TOP PANEL
23	WJ65X23733 GE Outdoor Fan Motor Bracket
25	OUTDOOR FAN MOTOR
26	OUTDOOR FAN BLADE
27	WJ26X23739 GE Electrical Box
28	WJ26X23715 GE Outdoor Control Power Board
29	WJ26X23716 GE Service Control Power Board
30	WJ26X23730 GE Indoor Terminal Block
31	WJ27X23566 GE Terminal Block Supply
32	WJ26X23717 GE Filter Power Control Board
33	WJ26X23734 GE Reactor
34	WJ26X23736 GE Inverter Module Driver
35	WJ20X23721 GE Power Control Board Capacitor
36	SQUARE INVERTER BOARD W/O CAPACITORS
9999	PM INSTALL INSTRUCTIONS
