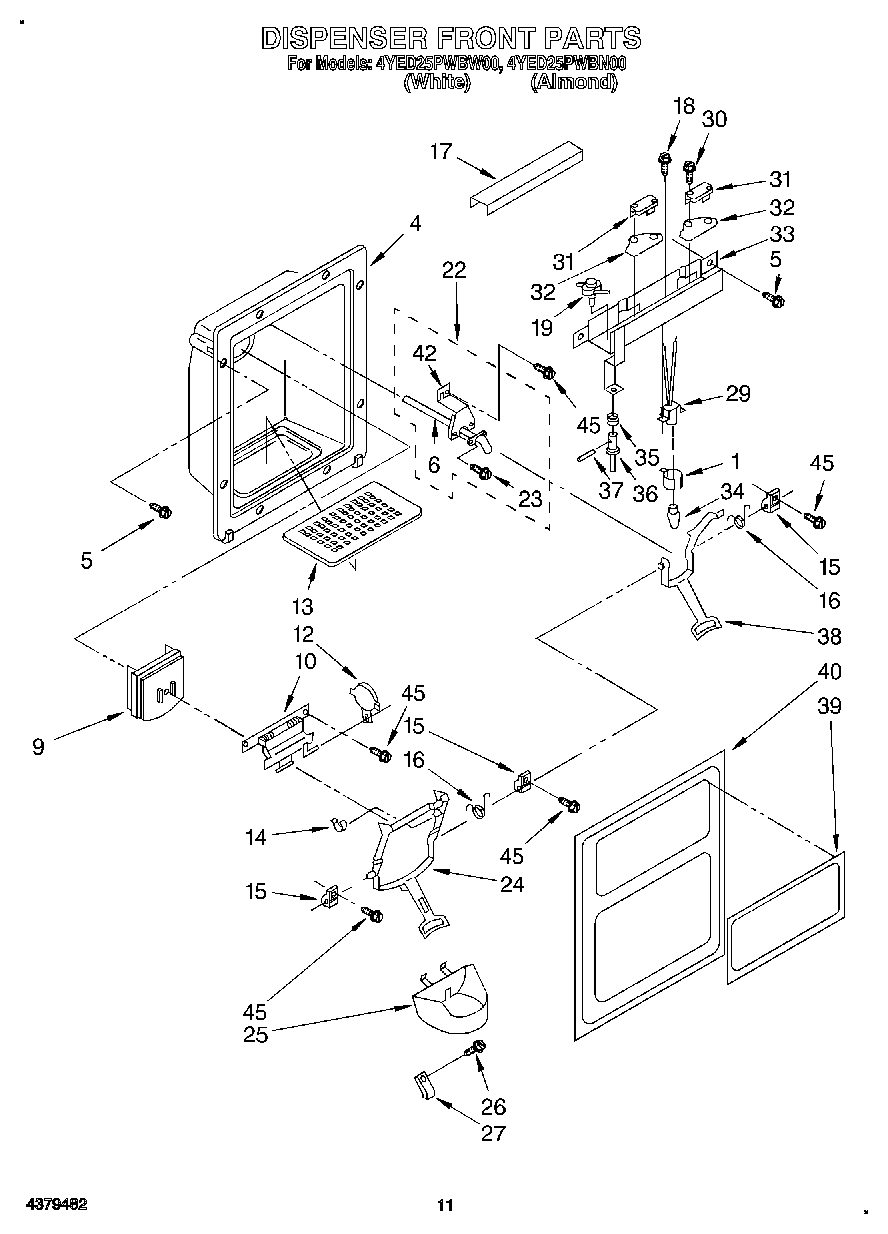

4YED25PWBW00 08 – DISPENSER FRONT

Products

Position	Product
1	Shroud, Bracket
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Switch, Light
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
26	Screw
27	Stop, Glass
29	Socket, Lamp
30	Screw
31	WP2162361 Whirlpool Switch
32	Insulator, Switch (2)
33	Bracket, Control
34	Bulb, Light
35	Spring, Plunger
36	Plunger
37	Pin, Retainer
38	Lever Assembly, Water Disp
39	Plaque, Front Cover
40	Front Cover, Housing (Includes Item 39)
42	Bracket, Water
45	WP3400906 Whirlpool Refrigerator Screw
